F19 — Wire Harness

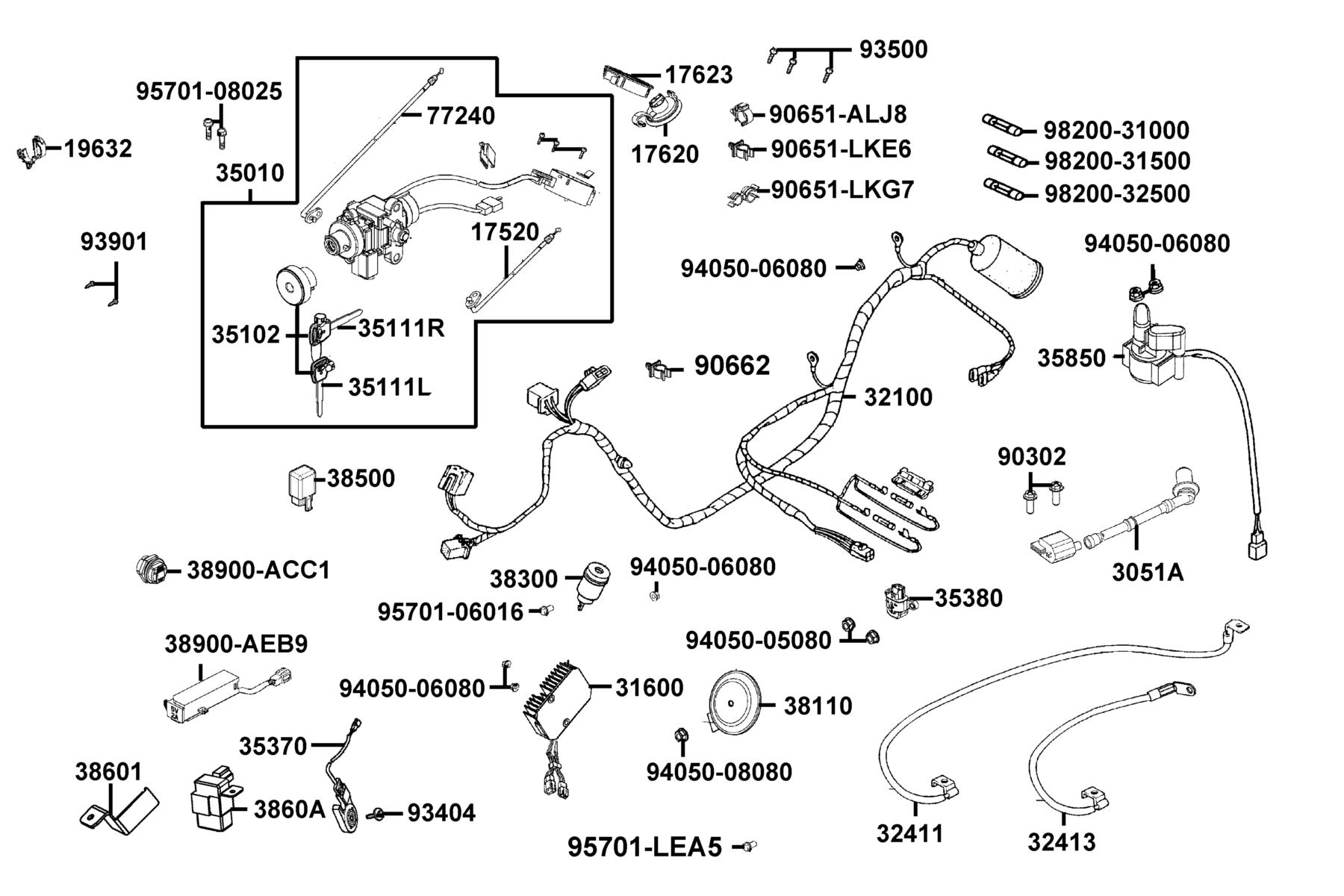

The Wire Harness diagram contains 42 genuine OEM parts for the KYMCO New People S 150(2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17520-AEB9-E00 | CABLE COMP FUEL CAP | 1 | $93.57 USD | View product → | |
| 2 | 17620-AEB9-M30 | CAP COMP FUEL FILLER | 1 | $162.90 USD | View product → | |
| 3 | 17623-KKE5-E01-HLP | COLLAR FUEL CAP | 1 | $33.90 USD | View product → | |
| 4 | 19632-LFB6-C00 | CLIP???FUEL HOSE | 1 | $2.97 USD | View product → | |
| 5 | 3051A-AEB9-E01 | COIL ASSY IGN | 1 | $172.14 USD | View product → | |
| 6 | 31600-AEB9-E00 | REG RECT COMP | 1 | $226.32 USD | View product → | |
| 7 | 32100-AEB9-M30 | HARNESS WIRE | 1 | $408.12 USD | View product → | |
| 8 | 32411-AEB9-E00 | CABLE BAT | 1 | $33.75 USD | View product → | |
| 9 | 32413-AEB9-E00 | CABLE EARTH | 1 | $23.67 USD | View product → | |
| 10 | 35010-AEB9-E01 | KEY SET | 1 | $308.28 USD | View product → | |
| 11 | 35102-ALL1-C00 | SHUTTER SET MAGNETIC LOCK | 1 | $173.91 USD | View product → | |
| 12 | 35111-LDC1-305 | KEY COMP (R TANGENT PLANE/SD) | 1 | $32.22 USD | View product → | |
| 13 | 35111-LDC1-306 | KEY COMP (L TANGENT PLANE/SD) | 1 | $32.22 USD | View product → | |
| 14 | 35370-AEB9-E00 | SW UNIT., SIDE STAND | 1 | $95.97 USD | View product → | |
| 15 | 35380-ABE1-C00 | SENSOR ANGLE | 1 | $99.39 USD | View product → | |
| 16 | 35850-AEB9-E00 | SET START MAG | 1 | $66.30 USD | View product → | |
| 17 | 38110-KHB4-E0A | HORN COMP (D405) | 1 | $85.02 USD | View product → | |
| 18 | 38110-KHB4-E0A-invalid | HORN COMP | 1 | $59.04 USD | View product → | |
| 19 | 38300-ADA9-M30 | RELAY ASSY WINKER | 1 | $74.73 USD | View product → | |
| 20 | 38500-LGL3-90C | RELAY ASSY LIGHT/D421 | 2 | $78.06 USD | View product → | |
| 21 | 38601-ACC1-E10 | "STAY,LIGHT CONTROLLER" | 1 | $10.80 USD | View product → | |
| 22 | 3860A-ACC1-E10 | CONTROL ASSY LIGHTING | 1 | $112.71 USD | View product → | |
| 23 | 38900-ACC1-E10 | CONTROLLER USB CHARGER | 1 | $112.71 USD | View product → | |
| 24 | 38900-AEB9-E00 | CONTROLLER USB CHARGER | 1 | $113.37 USD | View product → | |
| 25 | 77240-AEB9-E00 | CABLE SEAT LOCK | 1 | $58.62 USD | View product → | |
| 26 | 90302-GFY6-C11 | BOLT-WASH 5*16 | 2 | $4.65 USD | View product → | |
| 27 | 90651-ALJ8-C00 | CLIP,MUDGUARD | 2 | — | Part details → | |
| 28 | 90651-LKE6-900 | CLIP CABLE | 1 | $1.32 USD | View product → | |
| 29 | 90651-LKG7-E00 | CLIP WIRE HARN | 1 | $8.07 USD | View product → | |
| 30 | 90662-LHG7-C00 | CLIP | 1 | $4.05 USD | View product → | |
| 31 | 93404-06016-08G | BOLT WASHER 6*16 | 1 | $1.65 USD | View product → | |
| 32 | 93500-04020-08 | SCREW PAN 4*20(C) | 3 | $4.65 USD | View product → | |
| 33 | 93901-ABC1-C00 | SCREW TAPPING 4*8 (C) | 2 | $4.65 USD | View product → | |
| 34 | 94050-05080-G | NUT FLANGE 5MM | 2 | $0.99 USD | View product → | |
| 35 | 94050-06080-G | NUT FLANGE 6MM | 1 | $0.99 USD | View product → | |
| 36 | 94050-08080-G | NUT FLANGE 8MM | 1 | $1.95 USD | View product → | |
| 37 | 95701-06016-08G | BOLT FLANGE 6*16 (C) | 1 | $0.99 USD | View product → | |
| 38 | 95701-08025-08G | BOLT FLANGE 8*25 (C) | 1 | $4.26 USD | View product → | |
| 39 | 95701-LEA5-C00 | BOLT M8*25 | 1 | $13.62 USD | View product → | |
| 40 | 98200-31000 | BLADE FUSE 10A | 1 | $4.92 USD | View product → | |
| 41 | 98200-31500 | BLADE FUSE 15A | 1 | $4.92 USD | View product → | |
| 42 | 98200-32500 | BLADE FUSE 25A | 1 | $18.57 USD | View product → |
