F04 — Brake Master Cylinder

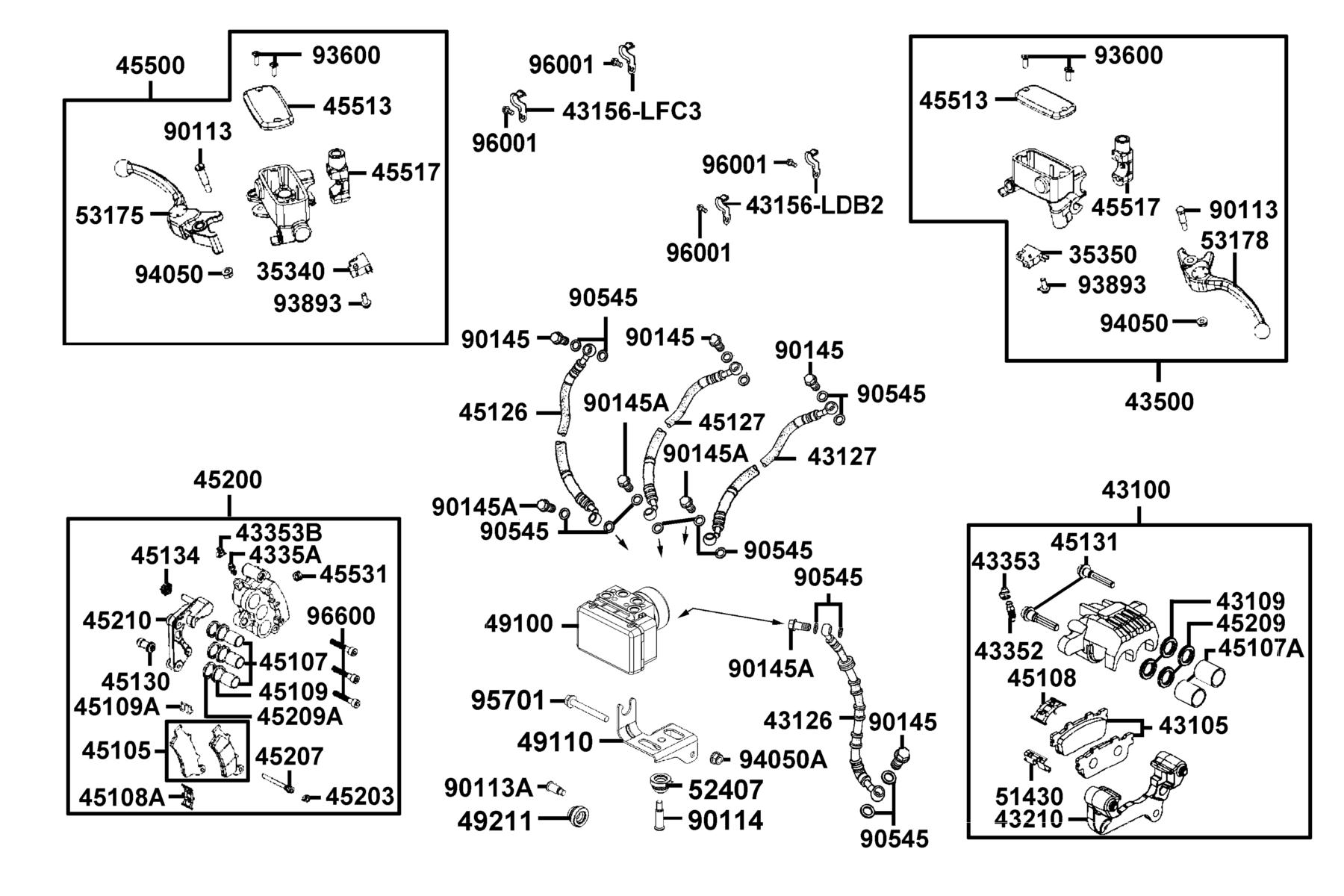

The Brake Master Cylinder diagram contains 58 genuine OEM parts for the KYMCO X-TOWN300i ABS (2019). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 35340-AEF6-C00 | SW ASSY FR STOP | 1 | $50.10 USD | View product → | |
| 2 | 35350-AEF6-C00 | SWITCH ASSY RR STOP | 1 | $50.10 USD | View product → | |
| 3 | 43100-LGE5-C01-NEA | CALIPER ASSY???ARR | 1 | $339.45 USD | View product → | |
| 4 | 43105-LGE5-406 | PAD SET | 1 | $116.43 USD | View product → | |
| 5 | 43109-MCA3-C00 | SEAL PISTON | 2 | — | Part details → | |
| 6 | 43126-ABD2-C01 | HOSE ASSY RR BRK | 1 | $182.37 USD | View product → | |
| 7 | 43127-ABD2-C01 | HOSE ASSY M/C RR BRK | 1 | $102.09 USD | View product → | |
| 8 | 43156-LDB2-C00 | CLAMPER HOSE RR | 2 | $6.24 USD | View product → | |
| 9 | 43156-LFC3-E10 | CLAMPER HOSE RR | 1 | $11.79 USD | View product → | |
| 10 | 43210-LGE5-C00 | BRACKET FR CALIPER | 1 | — | Part details → | |
| 11 | 43352-KKD6-C00 | SCREW BLEEDER | 1 | $12.45 USD | View product → | |
| 12 | 43353-4A61-C00 | CAP BLEEDER | 1 | $5.64 USD | View product → | |
| 13 | 43353-KED9-C00 | CAP BLEEDER | 1 | $5.64 USD | View product → | |
| 14 | 4335A-LBA2-C01 | SCREW BLEEDER | 1 | — | Part details → | |
| 15 | 43500-LKG5-C00 | M/C ASSY RR | 1 | $495.24 USD | View product → | |
| 16 | 45105-LGE5-305 | PAD SET | 1 | $162.06 USD | View product → | |
| 17 | 45107-KED9-C00 | PISTON | 2 | — | Part details → | |
| 18 | 45107-LGE5-C00 | PISTON C/P | 1 | — | Part details → | |
| 19 | 45108-LDH1-C00 | PAD SPRING | 1 | $16.38 USD | View product → | |
| 20 | 45108-LGE5-C00 | SPRING PAD | 1 | $15.36 USD | View product → | |
| 21 | 45109-GBE2-C00 | DUST SEAL | 1 | $15.24 USD | View product → | |
| 22 | 45109-LGE5-C00 | SLIDE PAD | 1 | $7.98 USD | View product → | |
| 23 | 45126-ABD2-C01 | HOSE ASSY FR BRK | 1 | $124.23 USD | View product → | |
| 24 | 45127-ABD2-C01 | HOSE ASSY FR BRK | 1 | $102.09 USD | View product → | |
| 25 | 45130-LGE5-C00 | PUSH BOOT PIN | 1 | — | Part details → | |
| 26 | 45131-LGE5-C00 | PIN BOLT | 1 | $39.57 USD | View product → | |
| 27 | 45134-KED9-C00 | BOOT B | 1 | $15.63 USD | View product → | |
| 28 | 45200-LKG7-C01-NEA | CALIPER ASSY FR BRK | 1 | $387.48 USD | View product → | |
| 29 | 45203-KED9-C00 | PLUG PIN | 1 | $7.35 USD | View product → | |
| 30 | 45207-LGE5-C00 | PIN HANGER | 1 | $11.46 USD | View product → | |
| 31 | 45209-GBE2-C00 | SEAL PISTON | 1 | $25.08 USD | View product → | |
| 32 | 45209-KED9-C00 | SEAL PISTON | 1 | $25.08 USD | View product → | |
| 33 | 45210-LKG7-C00 | BRACKET ASSY FR | 1 | $94.26 USD | View product → | |
| 34 | 45500-LKG7-C00 | M/C ASSY FR BRK | 1 | $285.99 USD | View product → | |
| 35 | 45513-LEA7-C00 | CAP M/C | 1 | $23.40 USD | View product → | |
| 36 | 45517-LBA2-C00 | HOLDER M/C | 1 | $18.45 USD | View product → | |
| 37 | 45531-KED9-C00 | PLUG | 1 | $5.85 USD | View product → | |
| 38 | 49100-ACD5-E01 | MODULATOR ASSY ABS | 1 | $489.06 USD | View product → | |
| 39 | 49110-LGE5-C01 | ABS STAY | 1 | $12.45 USD | View product → | |
| 40 | 49211-LFH1-C00 | RUBBER BUSH | 2 | $1.65 USD | View product → | |
| 41 | 51430-LGE5-C00 | SLIDE PAD | 1 | $23.13 USD | View product → | |
| 42 | 52407-LLB1-900 | RUBBER RR CUSH | 1 | $4.17 USD | View product → | |
| 43 | 53175-LKF5-C00-M3A | LEVER R STRG HANDLE | 1 | $149.76 USD | View product → | |
| 44 | 53178-LKF5-C00-M3A | LEVER L STRG HANDLE | 1 | $148.14 USD | View product → | |
| 45 | 90113-KKA8-C00 | BOLT HANDLE LEVER | 2 | — | Part details → | |
| 46 | 90113-LGE5-E01 | BOLT FLANGE 6X20 ABS | 2 | $26.37 USD | View product → | |
| 47 | 90114-LGE5-C01 | BOLT BLANGE SH 6*30(C) | 1 | $8.97 USD | View product → | |
| 48 | 90145-LFH1-E00 | OIL BOLT 10x22 | 4 | $29.52 USD | View product → | |
| 49 | 90145-MKS9-61A | OIL BOLT 10X22 | 4 | $9.06 USD | View product → | |
| 50 | 90145-MKS9-61A(wrong) | OIL BOLT 10X22 | 4 | $11.79 USD | View product → | |
| 51 | 90545-3L00-C00 | WASHER OIL BOLT | 1 | $2.31 USD | View product → | |
| 52 | 93600-04012-1G | SCREW FLAT 4*12 | 1 | $5.67 USD | View product → | |
| 53 | 93893-04012-18 | SCREW WASHER 4*12 | 1 | $1.86 USD | View product → | |
| 54 | 94050-06060 | NUT FLANGE 6MM | 3 | $4.92 USD | View product → | |
| 55 | 94050-06070-G | NUT FLANGE 6MM | 3 | $0.99 USD | View product → | |
