F09 — Seat

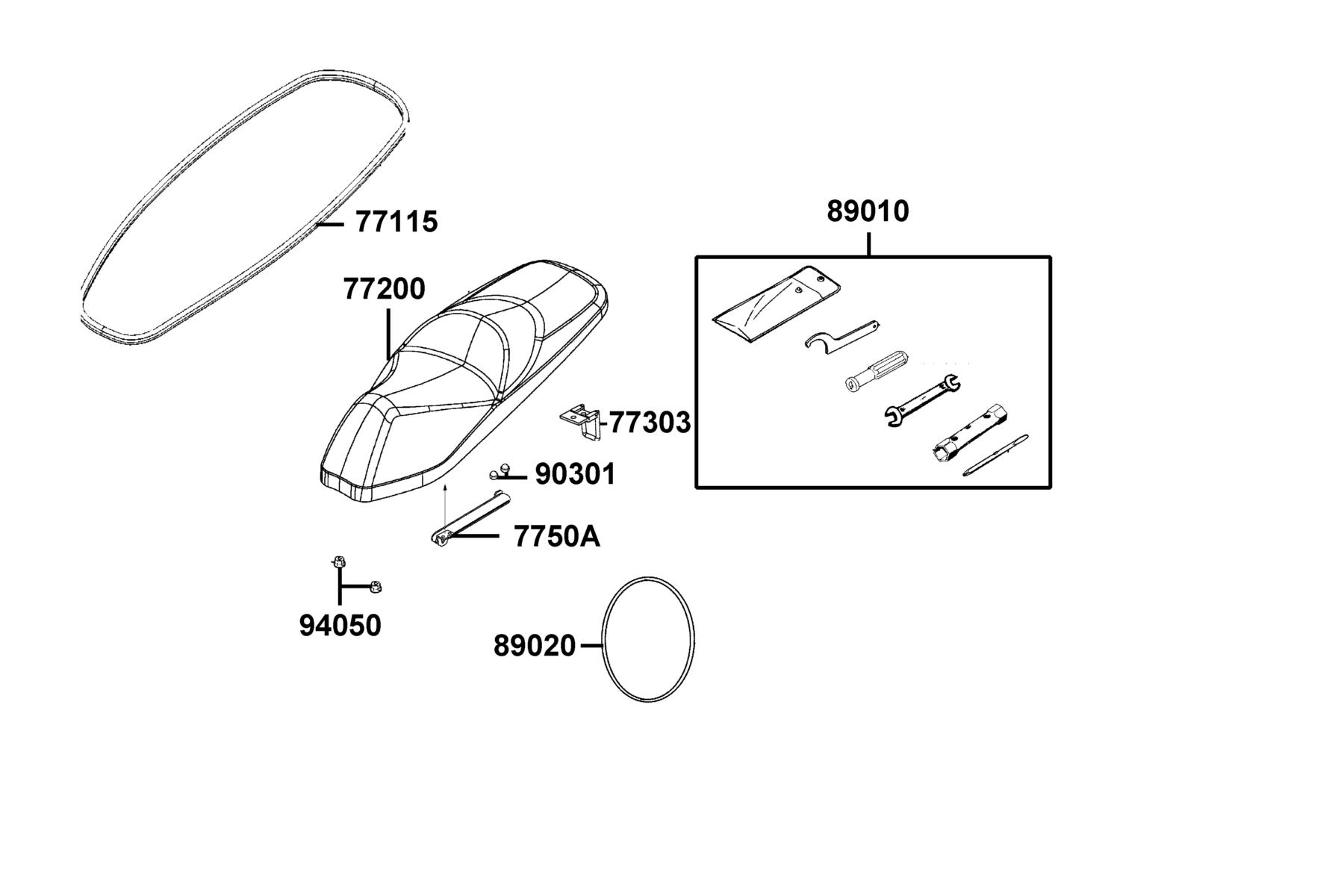

The Seat diagram contains 8 genuine OEM parts for the KYMCO X-TOWN300i ABS (2019). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 77115-ABD2-C00 | RUBBER SEAL | 2 | $114.84 USD | View product → | |
| 2 | 77200-ACJ1-E01-T01 | SEAT ASSY | 1 | $575.79 USD | View product → | |
| 3 | 77303-ZZA6-C00 | HINGE RR SEAT | 1 | $23.88 USD | View product → | |
| 4 | 7750A-ZZA6-C00 | ASSY GAS DAMPER | 1 | $143.79 USD | View product → | |
| 5 | 89010-ABD2-C00 | TOOL SET | 1 | $34.83 USD | View product → | |
| 6 | 89020-KKC4-C00 | BAND TOOL SET | 1 | $3.60 USD | View product → | |
| 7 | 90301-6C93-C00 | NUT 6MM OPENSTAY | 1 | $8.19 USD | View product → | |
| 8 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → |
