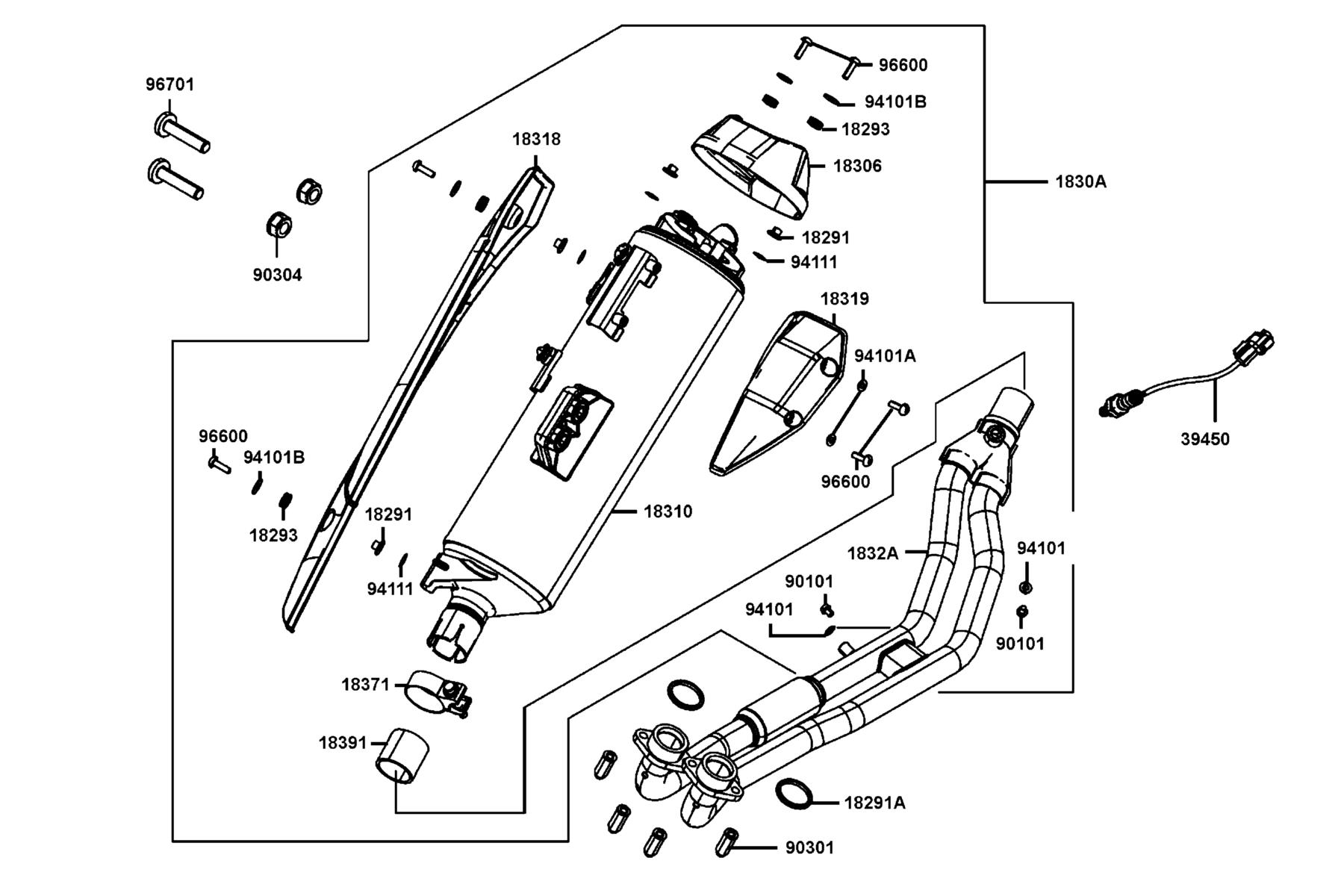

F14 — Exhaust Muffler
The Exhaust Muffler diagram contains 21 genuine OEM parts for the KYMCO AK550 2022. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 18291-LKG2-90A | COLLAR | 4 | $2.76 USD | View product → | |
| 2 | 18291-PWB1-900 | SEAL EXHAUST PIPE | 2 | $17.82 USD | View product → | |
| 3 | 18293-LHJ8-900 | RUBBER PKG PROTR | 4 | $11.79 USD | View product → | |
| 4 | 18306-LGC6-E00-T01 | TAIL CAP. MUFFLER | 1 | $72.54 USD | View product → | |
| 5 | 1830A-LGC6-M30 | MUFFLER ASSY EXHAUST | 1 | $2552.62 USD | View product → | |
| 6 | 18310-LGC6-M30 | MUFFLER COMP | 1 | $1249.98 USD | View product → | |
| 7 | 18318-LGC6-E00-T01 | MUFF. PROTECTOR | 1 | $189.45 USD | View product → | |
| 8 | 18319-LGC6-E00-T01 | COVER. SILENCER | 1 | $78.36 USD | View product → | |
| 9 | 1832A-LGC6-E00 | PIPE ASSY.. EXHAUST | 1 | $533.88 USD | View product → | |
| 10 | 18371-LBA2-E00 | BAND MUFFLER | 1 | $69.90 USD | View product → | |
| 11 | 18391-LKF5-E00 | PACKING. MUFFLER | 1 | $149.34 USD | View product → | |
| 12 | 39450-ZVA6-M00 | O2 SENSOR | 1 | $322.38 USD | View product → | |
| 13 | 90101-LEA7-E00 | BOLT FLANGE SH 6X8 | 2 | $15.84 USD | View product → | |
| 14 | 90301-GFY6-901 | NUT (HEX) CAP 8MM(C) | 4 | $19.26 USD | View product → | |
| 15 | 90304-LGC6-E00 | NUT M10X1.25(C) | 2 | $2.82 USD | View product → | |
| 16 | 94101-06200 | WASHER PLAIN 6MM | 2 | $4.92 USD | View product → | |
| 17 | 94101-LDB5-E00 | WASHER PLAIN 6MM | 2 | $32.10 USD | View product → | |
| 18 | 94101-LEA2-900 | WASHER PLAIN 6.5*18*1.5 | 4 | $5.88 USD | View product → | |
| 19 | 94111-ACD5-E00 | WASHER.SPG | 4 | $11.79 USD | View product → | |
| 20 | 96600-LEA7-E01 | SOCKET BOLT 6X20 | 6 | $7.56 USD | View product → | |
| 21 | 96701-LGC6-E01 | SOCKET BOLT 10X45 | 2 | $14.25 USD | View product → |
