F18 — Rear Light●Rear Fender

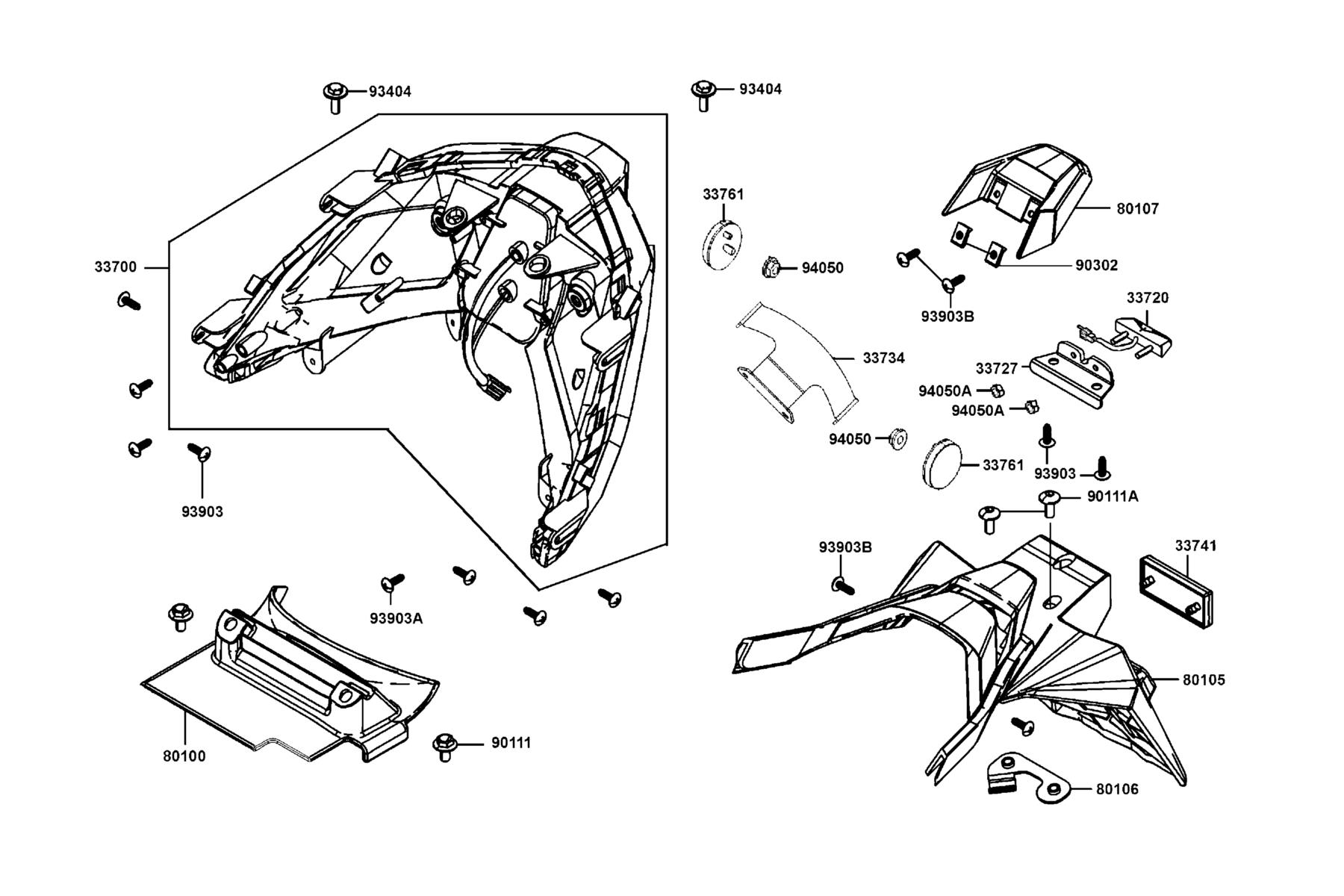

The Rear Light●Rear Fender diagram contains 19 genuine OEM parts for the KYMCO AK550 2022. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33700-LGC6-M30 | LIGHT ASSY.. RR. COMB. | 1 | $658.66 USD | View product → | |
| 2 | 33720-LGC6-306 | LIGHT SET LICENSE | 1 | $129.60 USD | View product → | |
| 3 | 33727-LGC6-E00 | STAY | 1 | $12.00 USD | View product → | |
| 4 | 33734-LGC6-M30 | STAY,REAR REFLEX REFLECTOR | 1 | — | Part details → | |
| 5 | 33741-ACH7-900 | REFLEX REFLECTOR | 1 | $9.27 USD | View product → | |
| 6 | 33761-LGC6-M30 | REFLEX REFLECTOR,SIDE(RED | 2 | $9.57 USD | View product → | |
| 7 | 80100-LGC6-E00-N1R | FENDER RR TIRE (Black) | 1 | $9.69 USD | View product → | |
| 8 | 80105-LGC6-E00-N1R | FENDER REAR (Black) | 1 | $2.52 USD | View product → | |
| 9 | 80106-LGC6-E00 | STAY RR.FENDER | 1 | $6.81 USD | View product → | |
| 10 | 80107-LGC6-E00-N1R | COVER LICENSE LIGHT (Black) | 0 | $8.01 USD | View product → | |
| 11 | 90111-LEB1-900 | BOLT FLANGE 6MM | 2 | $12.12 USD | View product → | |
| 12 | 90111-LEC8-E00 | SCREW PAN 6x14 | 2 | $7.53 USD | View product → | |
| 13 | 90302-SA4-0040 | NUT SPRING 4MM | 2 | $4.26 USD | View product → | |
| 14 | 93404-06012-06 | BOLT WASHER 6X12 | 2 | $2.61 USD | View product → | |
| 15 | 93903-24360 | SCREW TAPPING 4*12 | 6 | $4.92 USD | View product → | |
| 16 | 93903-GFY6-900 | SCREW TAPPING 4*14 | 4 | $2.61 USD | View product → | |
| 17 | 93903-LGC6-E01 | SCREW TAPPING | 4 | $0.87 USD | View product → | |
| 18 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → | |
| 19 | 94050-LHJ3-900 | NUT M4*0.7 | 2 | $3.54 USD | View product → |
