F16 — Rear Cushion

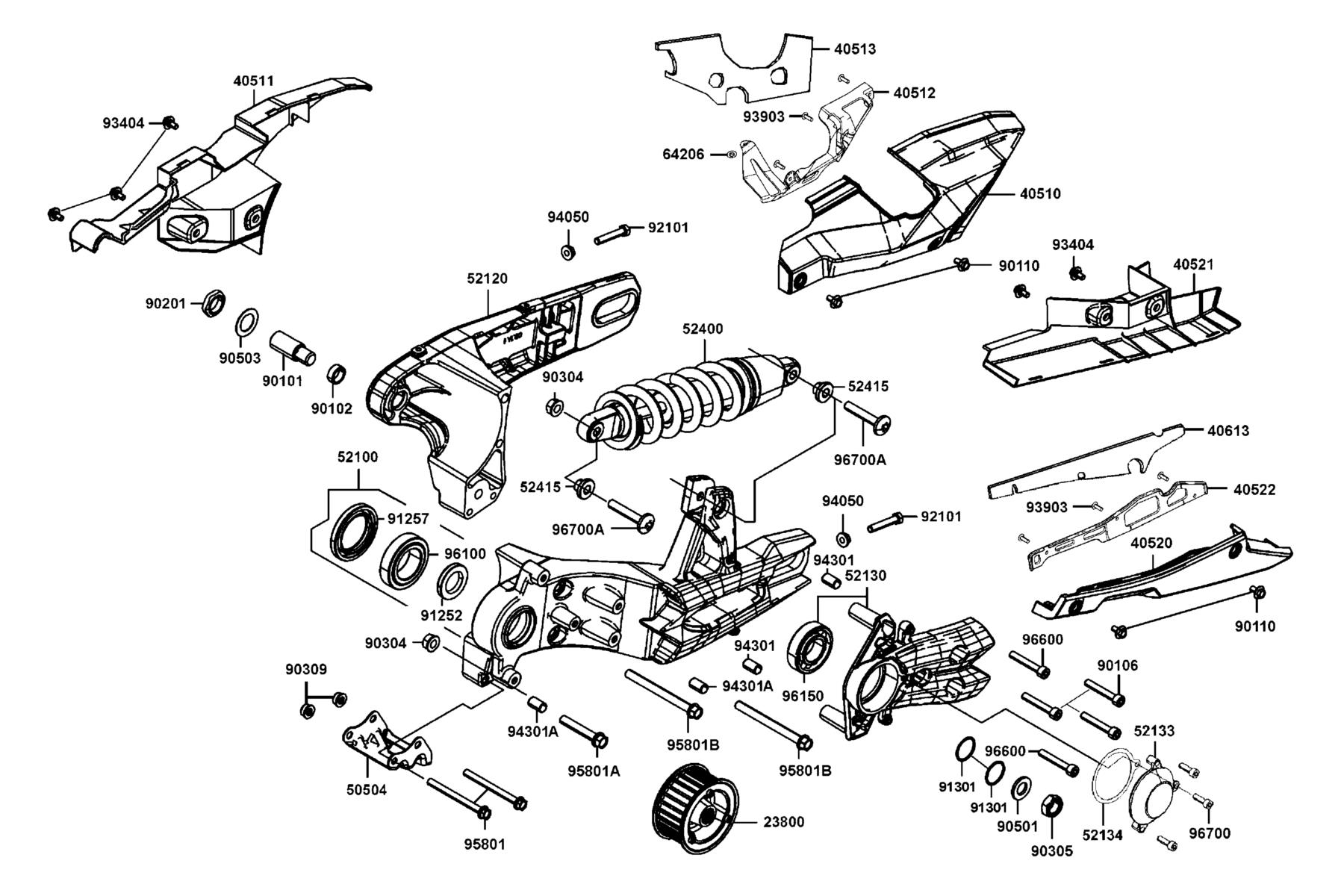

The Rear Cushion diagram contains 45 genuine OEM parts for the KYMCO AK550 2022. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 23800-LGC6-E02 | DRIVE ASSY???A TRANS BELT | 1 | $441.78 USD | View product → | |
| 2 | 40510-LGC6-E00-N1R | COVER UP A???CHAIN (Black) | 1 | $10.53 USD | View product → | |
| 3 | 40511-LGC6-E01-N1R | COVER UP B CHAIN (Black) | 1 | $15.42 USD | View product → | |
| 4 | 40512-LGC6-E00 | COVER UP C CHAIN | 1 | $9.90 USD | View product → | |
| 5 | 40513-LGC6-E00 | SPONGN | 1 | $47.61 USD | View product → | |
| 6 | 40520-LGC6-E00-N1R | COVER LOW A CHAIN (Black) | 1 | $14.13 USD | View product → | |
| 7 | 40521-LGC6-E00-N1R | COVER LOW B CHAIN (Black) | 14 | $14.13 USD | View product → | |
| 8 | 40522-LGC6-E00 | COVER LOW C CHAIN | 1 | $15.09 USD | View product → | |
| 9 | 40613-LGC6-E00 | SPONGN | 1 | $36.06 USD | View product → | |
| 10 | 50504-LGC6-E00 | PLATE MAIN STAND TOPPER | 1 | $55.65 USD | View product → | |
| 11 | 52100-LGC6-E01-T02 | FORK ASSY RR L/H | 1 | $527.46 USD | View product → | |
| 12 | 52120-LGC6-E01-T02 | FORK CAST, RR R/H | 1 | $399.72 USD | View product → | |
| 13 | 52130-LGC6-E00-T02 | HOLDER ASSY, FINAL SHAFT | 1 | $203.16 USD | View product → | |
| 14 | 52133-LGC6-E00-T02 | CAP FINAL SHAFT HOLDER | 1 | $38.58 USD | View product → | |
| 15 | 52134-LGC6-E00 | GASKET??? RR FORK CAP | 1 | $5.61 USD | View product → | |
| 16 | 52400-LGC6-E00-T01 | CUSHION ASSY RR | 1 | $218.64 USD | View product → | |
| 17 | 52415-LGC6-E00 | COLLAR RR CUSHION | 2 | $9.09 USD | View product → | |
| 18 | 64206-MLJ0-001 | NUT SPEED 4MM | 1 | $3.96 USD | View product → | |
| 19 | 90101-LGC6-E00 | AXLE RR SWING PIVOT | 1 | $21.72 USD | View product → | |
| 20 | 90102-LGC6-E00 | COLLAR RR FORK PIVOT | 1 | $8.43 USD | View product → | |
| 21 | 90106-LEC8-900 | BOLT SPECIAL M8 | 3 | $27.39 USD | View product → | |
| 22 | 90110-KED9-900 | SCREW PAN 6*18 | 4 | $5.34 USD | View product → | |
| 23 | 90201-LGC6-E00 | NUT STRG STEM | 1 | $16.86 USD | View product → | |
| 24 | 90304-LEA1-900 | NUT U FLANGE 10MM | 2 | $11.31 USD | View product → | |
| 25 | 90305-KNBN-90B | NUT U 16MM | 1 | $24.99 USD | View product → | |
| 26 | 90309-GLW0-90A | NUT U FLANGE 8MM | 2 | $6.06 USD | View product → | |
| 27 | 90501-KNBN-901 | WASHER 16MM | 1 | $5.67 USD | View product → | |
| 28 | 90503-0A51-870 | WASHER STEERING STEM NUT | 1 | $1.86 USD | View product → | |
| 29 | 91252-LGC6-E00 | OIL SEAL 28X45X7 | 1 | $25.95 USD | View product → | |
| 30 | 91257-LGC6-E00 | OIL SEAL 48X72X8 | 1 | $8.43 USD | View product → | |
| 31 | 91301-0H28-001 | O RING 27*2 | 2 | $4.92 USD | View product → | |
| 32 | 92101-LGC6-E00 | BOLT FEX 8X45 | 2 | $3.66 USD | View product → | |
| 33 | 93404-06012-06 | BOLT WASHER 6X12 | 4 | $2.61 USD | View product → | |
| 34 | 93903-24360 | SCREW TAPPING 4*12 | 6 | $4.92 USD | View product → | |
| 35 | 94050-08020 | NUT FLANGE 8MM | 2 | $4.92 USD | View product → | |
| 36 | 94301-10160 | DOWEL PIN 10*16 | 2 | $3.00 USD | View product → | |
| 37 | 94301-12200 | DOWEL PIN 12*20 | 2 | $6.39 USD | View product → | |
| 38 | 95801-08090-06 | BOLT FLANGE 8*90 | 2 | $6.48 USD | View product → | |
| 39 | 95801-10060-06 | BOLT FLANGE 10*60 | 1 | $15.45 USD | View product → | |
| 40 | 95801-10120-06 | BOLT FLANGE 10*120 (G) | 2 | $15.63 USD | View product → | |
| 41 | 96100-LGC6-E00 | TAPPER BEARING 4T-32008X | 1 | $121.14 USD | View product → | |
| 42 | 96150-62060-10 | BEARING 6206UU | 1 | $51.63 USD | View product → | |
| 43 | 96600-08050-02 | SCOKET BOLT 8X50 | 2 | $10.38 USD | View product → | |
| 44 | 96700-06020-06 | SOCKET BOLT 6X20 | 3 | $16.68 USD | View product → | |
| 45 | 96700-LGC6-E00 | SOCKET BOLT 10X58 | 2 | $9.27 USD | View product → |
