F19 — Wire Harness

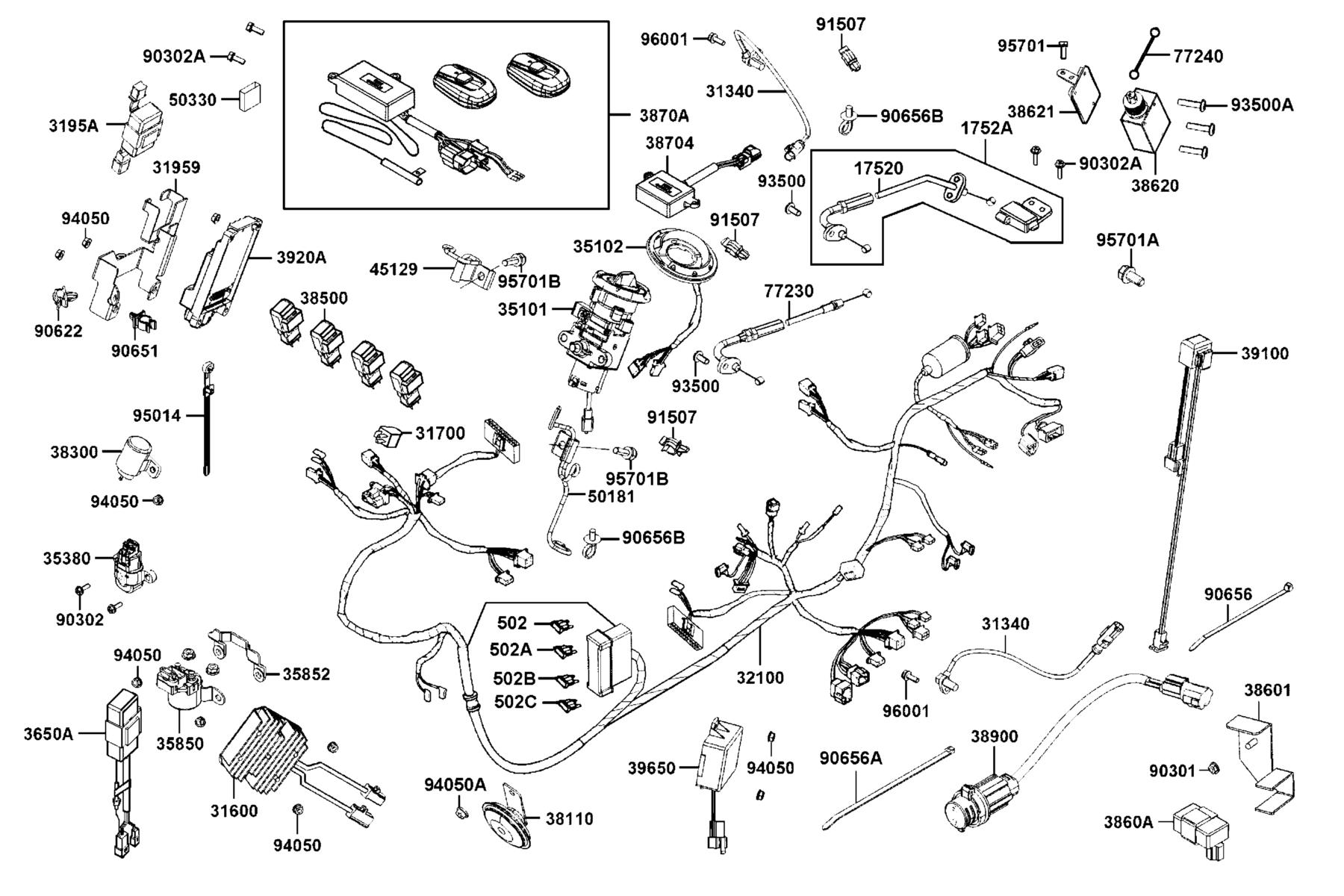

The Wire Harness diagram contains 54 genuine OEM parts for the KYMCO AK550 2022. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17520-LGC6-E00 | CABLE COMP FUEL CAP | 1 | $39.84 USD | View product → | |
| 2 | 1752A-LGC6-E00 | CABLE ASSY FUEL CAP | 1 | $45.33 USD | View product → | |
| 3 | 31340-LEA7-E00 | SENSOR FR WHEEL SPEED | 1 | $139.17 USD | View product → | |
| 4 | 31600-LKF5-E00 | REG REC COMP | 1 | $513.93 USD | View product → | |
| 5 | 31700-KEC8-E00 | RECTIFIER COMP DIODE | 1 | $42.72 USD | View product → | |
| 6 | 31959-LGC6-E00 | STAY HAZARD | 1 | $36.06 USD | View product → | |
| 7 | 3195A-LBA7-E00 | HAZARD CONTROL ASSY | 0 | $103.02 USD | View product → | |
| 8 | 32100-LGC6-910 | HARNESS WIRE | 1 | $616.74 USD | View product → | |
| 9 | 35101-LGC6-315 | KEY SET LOCK & COMB | 1 | $348.06 USD | View product → | |
| 10 | 35102-LGC6-315 | COLLAR MAIN SW | 1 | $242.34 USD | View product → | |
| 11 | 35380-LEA2-900 | SENSOR ANGLE DETECT | 1 | $193.92 USD | View product → | |
| 12 | 35850-LGC6-E00 | SET START MAG | 1 | $64.14 USD | View product → | |
| 13 | 35852-LGC6-E00-N1R | ISOLATED PLATE (Black) | 1 | $3.18 USD | View product → | |
| 14 | 3650A-LGC6-E00 | DRIVER ASS Y HEATED GRIP | 1 | $184.59 USD | View product → | |
| 15 | 38110-KKC3-90B | HORN COMP | 1 | $91.08 USD | View product → | |
| 16 | 38300-KKE5-E00 | RELAY COMP. WINKER | 1 | $119.52 USD | View product → | |
| 17 | 38500-LGL3-90A | RELAY ASSY LIGHT/D402(12V 20A) | 1 | $93.66 USD | View product → | |
| 18 | 38601-LGC6-E00 | STAY LIGHT CONTROLLER | 1 | $22.53 USD | View product → | |
| 19 | 3860A-LGC6-E00 | CONTROLLER ASS'Y HEAD LIGHT (D423) | 1 | $91.38 USD | View product → | |
| 20 | 38620-LGC6-E00 | LINEAR MOTOR ASS'Y | 1 | $99.15 USD | View product → | |
| 21 | 38621-LGC6-E00 | STAY LINEAR MOTOR | 1 | $15.09 USD | View product → | |
| 22 | 38704-LGC6-E00 | ANTENNA COMP. | 1 | $300.99 USD | View product → | |
| 23 | 3870A-LGC6-M30 | KEYLESS ASSY | 1 | $661.32 USD | View product → | |
| 24 | 38900-ACD5-E00 | CONTROLLER USB CHARGER | 1 | $112.29 USD | View product → | |
| 25 | 39100-LGC6-E00 | EMI FILTER. FAN MOTOR | 1 | $14.52 USD | View product → | |
| 26 | 3920A-LGC6-E01 | ASSY ECU (39KW) M3C | 1 | $453.86 USD | View product → | |
| 27 | 39650-LGC6-E00 | CONTROL UNIT. TIRE PRESURE | 1 | $212.61 USD | View product → | |
| 28 | 45129-LGC6-E00 | CLIP， BRAKE CABLE | 1 | $21.24 USD | View product → | |
| 29 | 50181-LGC6-E00 | CLIP，THROD CABLE | 1 | $36.06 USD | View product → | |
| 30 | 502-00149 | BLADE FUSE MINI 15A | 4 | $2.04 USD | View product → | |
| 31 | 502-00151 | BLADE FUSE MINI 10A | 3 | $2.04 USD | View product → | |
| 32 | 502-00155 | BLADE FUSE MINI 25A | 2 | $3.18 USD | View product → | |
| 33 | 502-00164 | BLADE FUSE MINI 5A | 2 | $3.18 USD | View product → | |
| 34 | 50330-LKF5-E00 | SPONGE BATTERY CASE | 1 | $20.10 USD | View product → | |
| 35 | 77230-LGC6-E00 | CABLE ASSY FR INNER BOX LOCK | 1 | $33.09 USD | View product → | |
| 36 | 77240-LGC6-E01 | CABLE ASSY SEAT LOCK | 2 | $5.61 USD | View product → | |
| 37 | 90301-6D34-671 | NUT FLANGE 6MM | 1 | $3.00 USD | View product → | |
| 38 | 90302-GFY6-940 | BOLT-WASH 5*16 | 2 | $1.86 USD | View product → | |
| 39 | 90302-LLB1-E00 | BOLT-WASH 5X12 | 2 | $2.61 USD | View product → | |
| 40 | 90622-LHJ8-900 | CLAMP | 1 | $0.87 USD | View product → | |
| 41 | 90651-ALH3-700 | CLIP WIRE HARN | 1 | $0.93 USD | View product → | |
| 42 | 90656-KCBC-900 | BAND OIL HANDLE 8X146 | 11 | $3.93 USD | View product → | |
| 43 | 90656-KUDU-900-N1R | BAND HARNESS WIRE (Black) | 1 | $4.92 USD | View product → | |
| 44 | 90656-ZVA6-M00 | CABLE STRAP | 4 | $5.19 USD | View product → | |
| 45 | 91507-LKE6-900 | CLIP | 3 | $11.79 USD | View product → | |
| 46 | 93500-KHC4-90A | SCREW PAN 5*10 | 4 | $8.19 USD | View product → | |
| 47 | 93500-LGC6-E00 | SCREW PAN 4X40 | 3 | $2.82 USD | View product → | |
| 48 | 94050-06060 | NUT FLANGE 6MM | 10 | $4.92 USD | View product → | |
| 49 | 94050-08060 | NUT FLANGE 8MM | 1 | $5.31 USD | View product → | |
| 50 | 95014-PRB3-900 | STRAP CABLE | 5 | $9.51 USD | View product → | |
| 51 | 95701-06012-06 | BOLT FLANGE 6X12 | 1 | $1.86 USD | View product → | |
| 52 | 95701-08012-06 | BOLT FLANGE 8*12 | 1 | $6.24 USD | View product → | |
| 53 | 95701-LEA5-E00 | BOLT TORQUE 8*25 | 2 | $14.31 USD | View product → | |
| 54 | 96001-06012-06 | BOLT FLANGE SH 6*12 | 2 | $1.95 USD | View product → |
