F10 — Fuel Tank

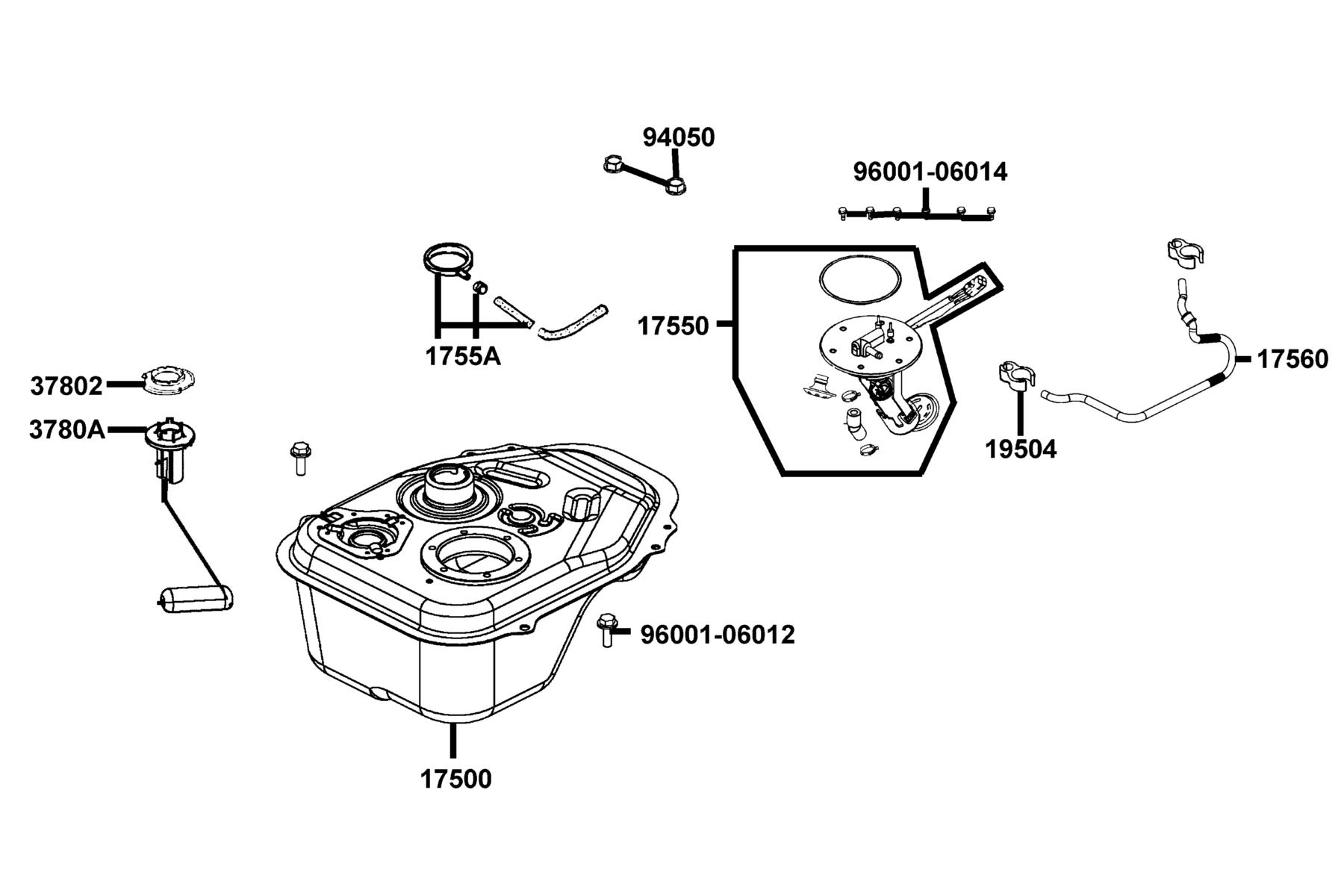

The Fuel Tank diagram contains 10 genuine OEM parts for the KYMCO LIKE 200(2010~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17500-LGS6-M30 | TANK COMP FUEL | 1 | $220.80 USD | View product → | |
| 2 | 17550-LGS6-M30 | PUMP ASSY FUEL | 1 | $408.96 USD | View product → | |
| 3 | 1755A-LGS6-E10 | TRAY ASSY FUEL CAP | 1 | $67.17 USD | View product → | |
| 4 | 17560-LGS6-M30 | "TUBE PUMP,INJECTOR" | 1 | $138.60 USD | View product → | |
| 5 | 19504-LBA2-C00 | CLAMP D16.8 | 1 | $9.18 USD | View product → | |
| 6 | 37802-GGA7-C00 | RET FUEL UNIT | 1 | $5.22 USD | View product → | |
| 7 | 3780A-LGS6-M30 | FUEL UNIT ASSY | 1 | $81.24 USD | View product → | |
| 8 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → | |
| 9 | 96001-06012-08G | BOLT FLANGE SH 6X12 (C) | 2 | $0.99 USD | View product → | |
| 10 | 96001-06014-08G | BOLT FLANGE SH 6*14 (C) | 6 | $0.99 USD | View product → |
