F19 — Wire Harness

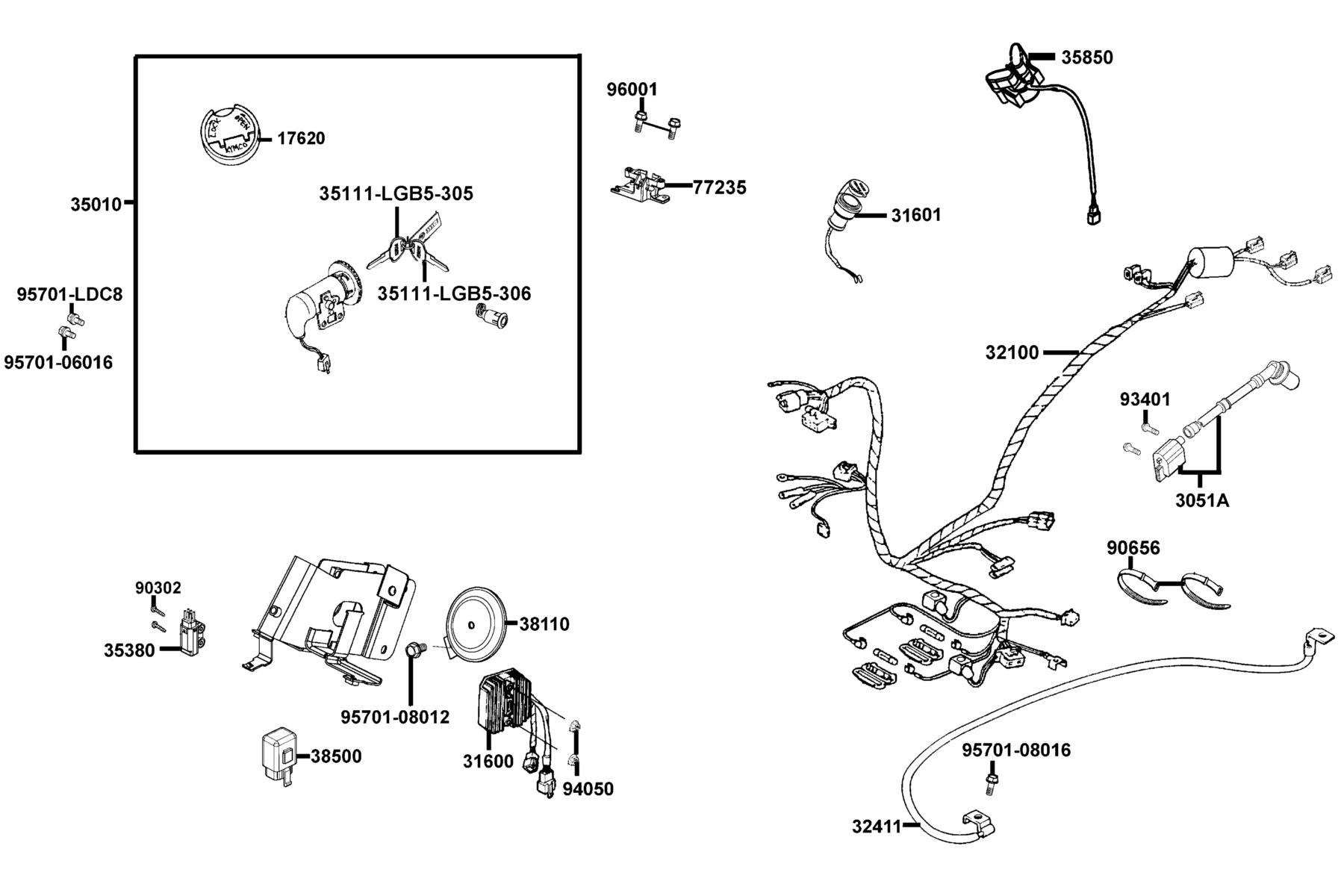

The Wire Harness diagram contains 23 genuine OEM parts for the KYMCO LIKE 200(2010~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17620-LGS6-M30 | CAP COMP.,FUEL FILLER | 1 | $144.66 USD | View product → | |
| 2 | 3051A-KKE3-900 | COIL ASSY IGN | 1 | $139.92 USD | View product → | |
| 3 | 31600-LEA5-C01 | REG RECT COMP | 1 | $145.23 USD | View product → | |
| 4 | 31601-LFC2-E10 | SOCKET COMP DC 12V | 1 | $73.80 USD | View product → | |
| 5 | 32100-LGS6-M31 | HARNESS WIRE | 1 | $495.72 USD | View product → | |
| 6 | 32411-LDF7-E10 | CABLE BAT | 1 | $38.52 USD | View product → | |
| 7 | 35010-LGS6-M30 | KEY SET | 1 | $282.57 USD | View product → | |
| 8 | 35111-LGB5-305 | KEY COMP R | 1 | $34.92 USD | View product → | |
| 9 | 35111-LGB5-306 | KEY COMP L | 1 | $34.92 USD | View product → | |
| 10 | 35380-ABE1-C00 | SENSOR ANGLE | 1 | $99.39 USD | View product → | |
| 11 | 35850-KHD8-C00 | SET START MAG | 1 | $125.43 USD | View product → | |
| 12 | 38110-KHB4-C00 | HORN COMP | 1 | $76.02 USD | View product → | |
| 13 | 38500-LGL3-C00 | RELAY ASSY START | 1 | $51.18 USD | View product → | |
| 14 | 77235-LGB5-E10 | SEAT CATCH COMP | 1 | $72.51 USD | View product → | |
| 15 | 90302-GFY6-C10 | BOLT-WASH 5*16 | 1 | $5.61 USD | View product → | |
| 16 | 90656-GFY6-911 | BAND HOSE **GFY6-901 C.2005.04.13 | 2 | $8.85 USD | View product → | |
| 17 | 93401-04025-06 | BOLT WASHER 4*25 | 1 | $13.95 USD | View product → | |
| 18 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → | |
| 19 | 95701-06016-08 | BOLT FLANGE 6*16 | 1 | $4.92 USD | View product → | |
| 20 | 95701-08012-08G | BOLT FLANGE 8X12(C) | 1 | $3.27 USD | View product → | |
| 21 | 95701-08016-08G | BOLT FLANGE 8*16 | 1 | $3.42 USD | View product → | |
| 22 | 95701-LDC8-E11 | BOLT TORQUE 6x16 | 1 | $2.82 USD | View product → | |
| 23 | 96001-06012-08G | BOLT FLANGE SH 6X12 (C) | 2 | $0.99 USD | View product → |
