E01 — Crank Case

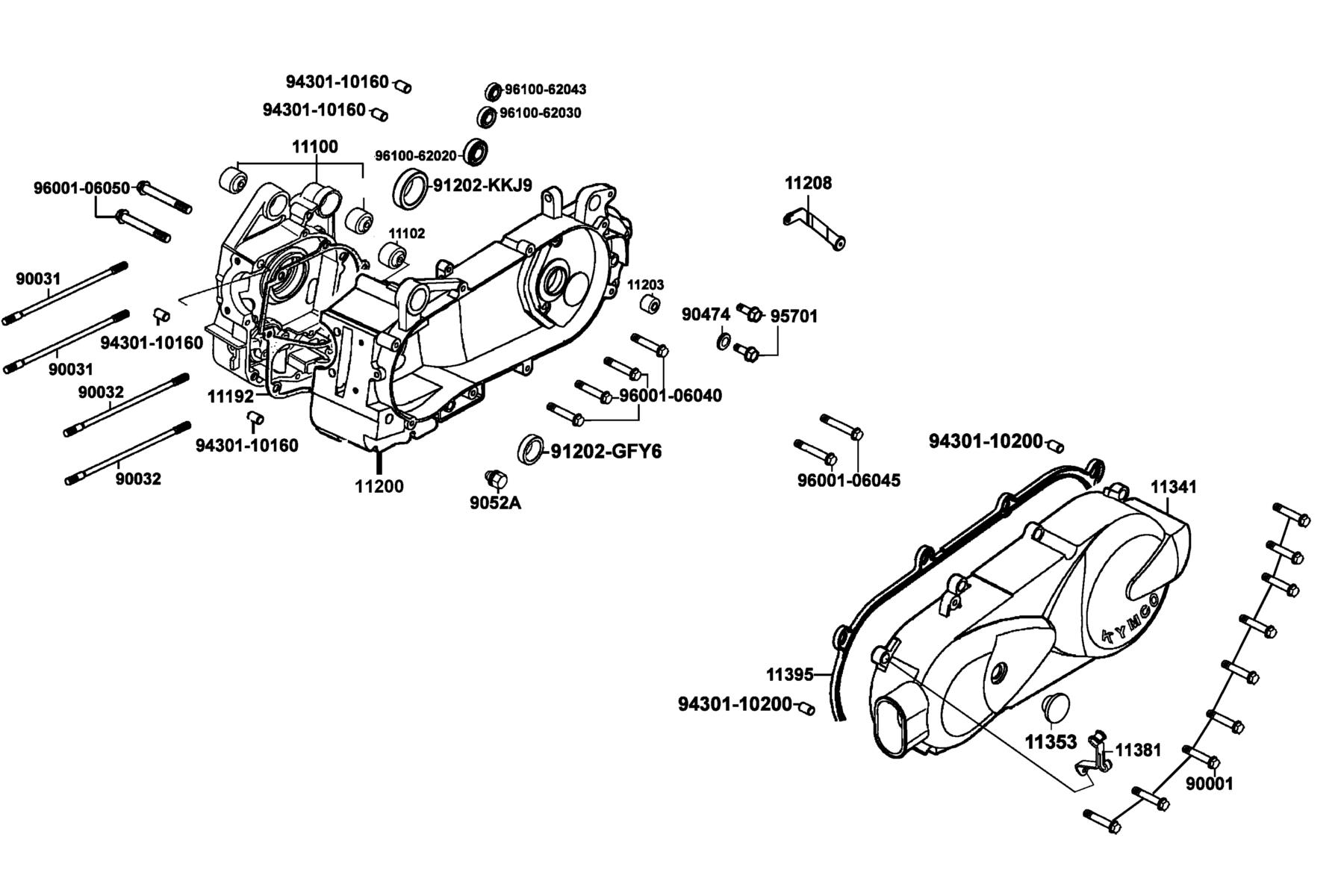

The Crank Case diagram contains 26 genuine OEM parts for the KYMCO LIKE 200(2010~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11100-LCD4-C00 | CRANK CASE COMP RIGHT | 1 | $230.88 USD | View product → | |
| 2 | 11102-1G87-C00 | RUB BUSH ENG HANGER | 1 | $21.30 USD | View product → | |
| 3 | 11192-LGS6-E90 | GASKET CRANK CASE @ A | 1 | $22.47 USD | View product → | |
| 4 | 11200-KKD9-C00 | CRANK CASE COMP L | 1 | $556.44 USD | View product → | |
| 5 | 11203-GGC7-W10 | BUSH | 1 | $14.31 USD | View product → | |
| 6 | 11208-LGR5-E11 | STAY B RR FENDER | 1 | $30.90 USD | View product → | |
| 7 | 11341-KEC4-C00-N8A | COVER L. CRANK CASE | 1 | $478.38 USD | View product → | |
| 8 | 11353-LEA6-C00 | RUBBER PLUG L COVER KICK | 1 | $11.79 USD | View product → | |
| 9 | 11381-KUDU-C00 | CLAMPER THROTTLE CABLE | 1 | $16.41 USD | View product → | |
| 10 | 11395-KKD7-E90 | GASKET L COVER @A | 1 | $40.11 USD | View product → | |
| 11 | 90001-GBHB-C11 | BOLT FLANGE SHF 6*40 | 1 | $11.85 USD | View product → | |
| 12 | 90031-KUDU-C01 | BOLT A STUD 8*200.5 | 1 | $13.14 USD | View product → | |
| 13 | 90032-KUDU-C00 | BOLT B STUD 8*208.5 | 1 | $23.67 USD | View product → | |
| 14 | 90474-3C33-C00 | WASHER 8MM(T*2) | 1 | $0.99 USD | View product → | |
| 15 | 9052A-PUA3-B50 | BOLT ASSY DRAIN PLUG 12*15 | 1 | $7.89 USD | View product → | |
| 16 | 91202-GFY6-90C | OIL SEAL 19.8*30*5 | 1 | $12.36 USD | View product → | |
| 17 | 91202-KKJ9-C00 | OIL SEAL 20*32*6 | 1 | $6.78 USD | View product → | |
| 18 | 94301-10160 | DOWEL PIN 10*16 | 4 | $3.00 USD | View product → | |
| 19 | 94301-10200 | DOWEL PIN 10*20 | 2 | $6.39 USD | View product → | |
| 20 | 95701-08012-08G | BOLT FLANGE 8X12(C) | 2 | $3.27 USD | View product → | |
| 21 | 96001-06045-08 | BOLT FLANGE SH 6*45 | 3 | $7.53 USD | View product → | |
| 22 | 96001-06050-08 | BOLT FLANGE 6*50 | 2 | $1.86 USD | View product → | |
| 23 | 96100-62020-00 | BEARING BALL RADIAL 6202 | 1 | $48.24 USD | View product → | |
| 24 | 96100-62030-00 | BRG BALL RADIAL 6203 | 1 | $42.36 USD | View product → | |
| 25 | 96100-62043-00-M1 | BEARING BALL RADIAL 6204 | 1 | $43.50 USD | View product → | |
| 26 | 96100-62043-00-invalid | BEARING BALL RADIAL 6204 | 1 | $37.23 USD | View product → |
