E01 — Crank Case

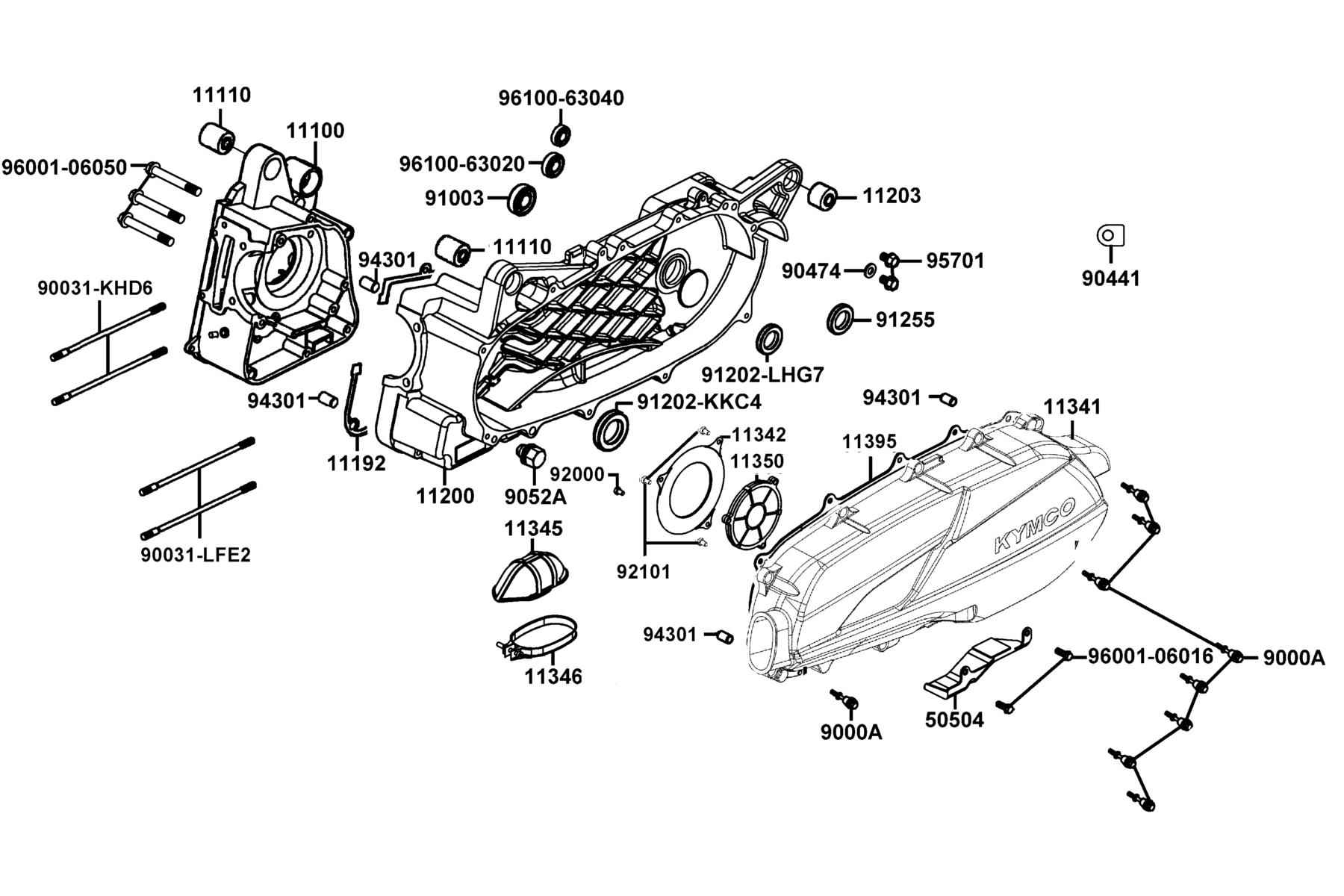

The Crank Case diagram contains 30 genuine OEM parts for the KYMCO X-Town 300i ABS (2022). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11100-LDB2-C00 | CRANK CASE COMP R | 1 | $180.45 USD | View product → | |
| 2 | 11110-LLJ3-C00 | BUSH ASSY ENG HANGER | 2 | $57.90 USD | View product → | |
| 3 | 11192-KHE7-C00 | GASKET CRANK CASE @A | 1 | $36.27 USD | View product → | |
| 4 | 11200-ABD2-C00 | CRANK CASE COMP???AL | 1 | $331.86 USD | View product → | |
| 5 | 11203-LBA2-C00 | RUB BUSH L CASE | 1 | $17.97 USD | View product → | |
| 6 | 11341-ABD2-C00-HJA | "COVER. LEFT" | 1 | $203.67 USD | View product → | |
| 7 | 11342-LDF2-C00 | PLATE. L. COVER | 1 | $17.97 USD | View product → | |
| 8 | 11345-LEA7-C00 | DUCT L COVER ASSY | 1 | $15.06 USD | View product → | |
| 9 | 11346-GFY6-C00 | BAND L COVER DUCT | 1 | $12.45 USD | View product → | |
| 10 | 11350-LHG7-C00-N1R | "ELEMENT COMP., L COVER" (Black) | 1 | $14.73 USD | View product → | |
| 11 | 11395-LLJ3-C00 | GASKET L COVER | 1 | $47.31 USD | View product → | |
| 12 | 50504-ACJ2-C00 | STAY MAIN STAND COMP | 1 | $35.01 USD | View product → | |
| 13 | 9000A-KTDT-C03 | BOLT ASSY SPECIAL 6*29.5 | 9 | $8.19 USD | View product → | |
| 14 | 90031-KHD6-C01 | BOLT A STUD 8*218 | 2 | $19.89 USD | View product → | |
| 15 | 90031-LFE2-C01 | BOLT A STUD 8*225 | 2 | $25.23 USD | View product → | |
| 16 | 90441-KDY4-C00 | PLATE BRG HOLD | 1 | $3.60 USD | View product → | |
| 17 | 90474-3C33-C00 | WASHER 8MM(T*2) | 2 | $0.99 USD | View product → | |
| 18 | 9052A-LEB1-C01 | BOLT ASSY DRAIN PLUG12*15(C) | 1 | $7.23 USD | View product → | |
| 19 | 91003-KHE7-C00 | BRG BALL RADIAL | 1 | — | Part details → | |
| 20 | 91202-KKC4-C00 | OIL SEAL 27*42*7 | 1 | $32.28 USD | View product → | |
| 21 | 91202-LHG7-C00 | "OIL SEAL,22*34*6" | 1 | $12.36 USD | View product → | |
| 22 | 91255-KHE7-C00 | OIL SEAL 34*52*7 | 1 | $28.62 USD | View product → | |
| 23 | 92000-06012-0HG | BOLT HEX 6*12 (C) | 1 | $4.65 USD | View product → | |
| 24 | 92101-05012-0HG | BOLT HEX 5*12 | 3 | $0.66 USD | View product → | |
| 25 | 94301-10160 | DOWEL PIN 10*16 | 4 | $3.00 USD | View product → | |
| 26 | 95701-08012-08G | BOLT FLANGE 8X12(C) | 2 | $3.27 USD | View product → | |
| 27 | 96001-06016-08G | BOLT FLANGE SH 6x16 (C) | 2 | $0.99 USD | View product → | |
| 28 | 96001-06050-08G | BOLT FLANGE SH 6*50 (C) | 3 | $1.95 USD | View product → | |
| 29 | 96100-63020-00 | BRG BALL RADIAL 6302 | 1 | $47.01 USD | View product → | |
| 30 | 96100-63040-00 | BRG BALL RADIAL 6304 | 1 | $53.61 USD | View product → |
