F13 — Air Cleaner

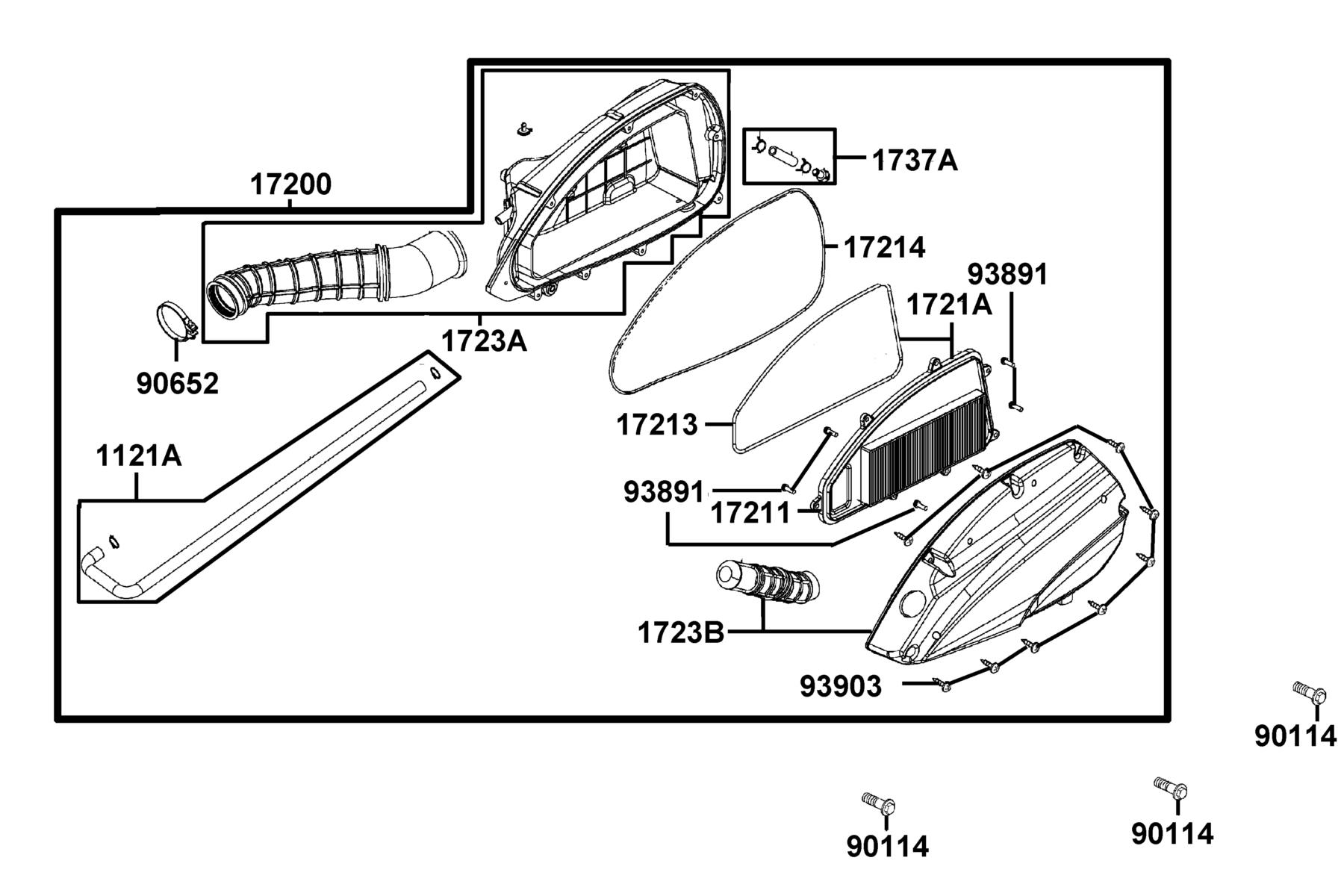

The Air Cleaner diagram contains 13 genuine OEM parts for the KYMCO X-Town 300i ABS (2022). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 1121A-ABD2-C00 | TUBE BREATHER | 1 | $17.97 USD | View product → | |
| 2 | 17200-ABD2-C00 | AIR/C ASSY. | 1 | $175.35 USD | View product → | |
| 3 | 17211-ABD2-C00 | "ELEMENT,AIR/C" | 1 | $47.31 USD | View product → | |
| 4 | 17213-ABD2-C00 | SEAL AIR/C ELEMENT | 1 | $10.08 USD | View product → | |
| 5 | 17214-ABD2-C00 | SEAL AIR/C CASE | 1 | $13.41 USD | View product → | |
| 6 | 1721A-ABD2-C00 | ELEMENT ASSY AIR/C | 1 | $111.39 USD | View product → | |
| 7 | 1723A-ABD2-C00 | CASE ASSY AIR/C | 1 | $356.94 USD | View product → | |
| 8 | 1723B-ABD2-C00 | COVER ASSY AIR/C | 1 | $157.53 USD | View product → | |
| 9 | 1737A-ABD2-C00 | V TUBE ASSY | 1 | $10.83 USD | View product → | |
| 10 | 90114-GDM4-C01 | BOLT FLANGE SH 6*28 | 3 | $1.95 USD | View product → | |
| 11 | 90652-KHE7-900 | BAND CONNECTING TUBE | 1 | $13.17 USD | View product → | |
| 12 | 93891-05016-00 | SCREW WASHER 5*16 | 1 | $2.61 USD | View product → | |
| 13 | 93903-25460 | SCREW TAPPING 5*20 | 1 | $4.26 USD | View product → |
