F09 — Seat

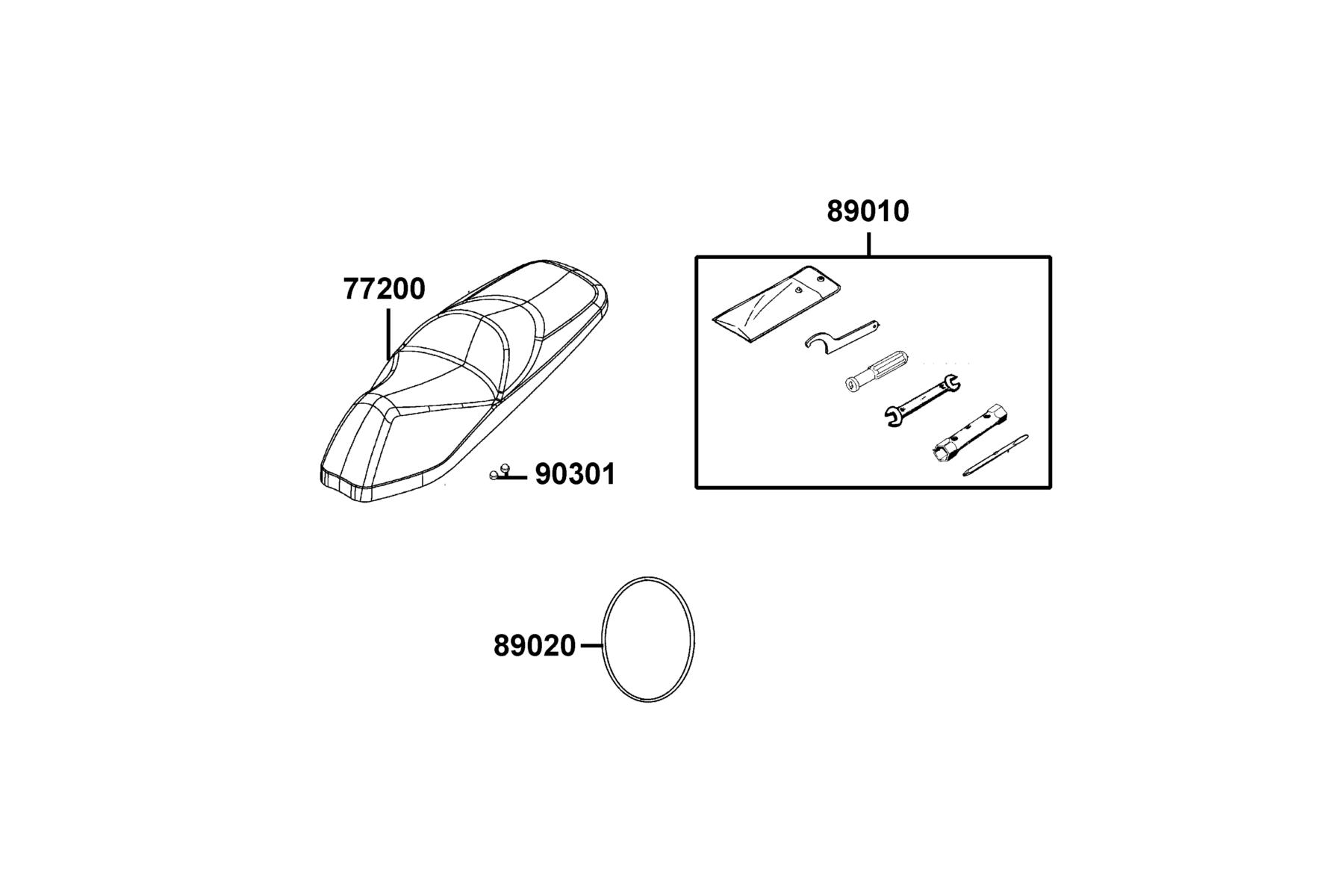

The Seat diagram contains 4 genuine OEM parts for the KYMCO X-Town 300i ABS(2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 77200-ABD2-M30-T02 | SEAT ASSY | 1 | $529.44 USD | View product → | |
| 2 | 89010-ABD2-C00 | TOOL SET | 1 | $34.83 USD | View product → | |
| 3 | 89020-KKC4-C00 | BAND TOOL SET | 1 | $3.60 USD | View product → | |
| 4 | 90301-6C93-C01 | NUT 6MM OPENSTAY | 1 | $8.97 USD | View product → |
