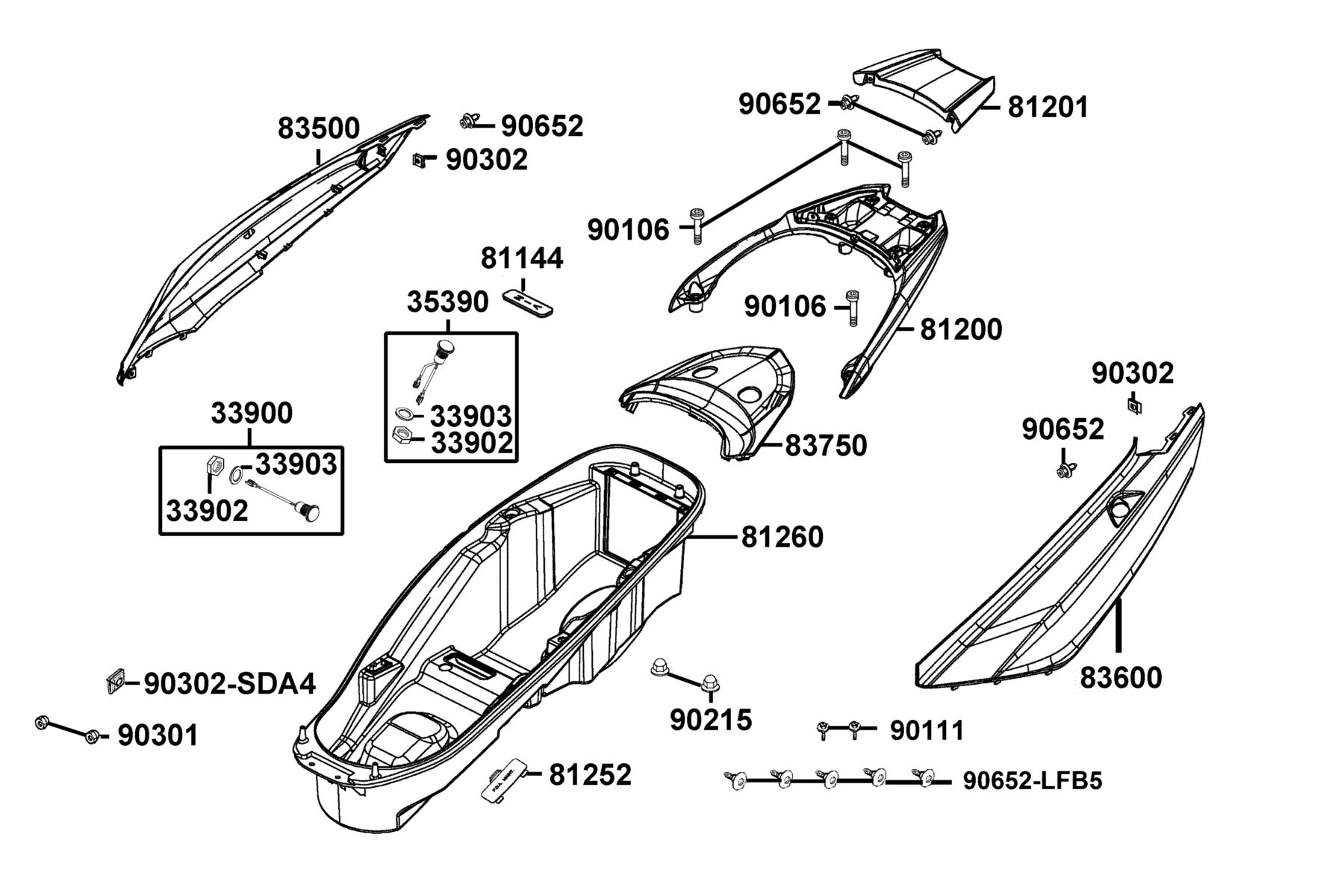

F12 — Body Cover ● Luggage Box
The Body Cover ● Luggage Box diagram contains 20 genuine OEM parts for the KYMCO X-Town 300i ABS(2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33900-LHG7-E00 | LIGHT ASSY LUGGAGE BOX | 1 | $84.96 USD | View product → | |
| 2 | 33902-LHG7-E00 | NUT SCREW | 1 | $18.87 USD | View product → | |
| 3 | 33903-LHG7-E00 | PACKING | 1 | $13.11 USD | View product → | |
| 4 | 35390-LHG7-E00 | SENSOR LUGGAGE BOX LIGHT | 1 | $165.09 USD | View product → | |
| 5 | 81144-ALJ8-E10 | LID LEG SHIELD | 1 | $4.77 USD | View product → | |
| 6 | 81200-ABD2-C00-59P | CARRIER RR | 1 | $457.68 USD | View product → | |
| 7 | 81201-ABD2-C00-N1R | "COVER,CARRIER REAR" | 1 | $13.56 USD | View product → | |
| 8 | 81252-ABD2-C00-N1R | "COVER, P.D.A MAINT." | 1 | $2.40 USD | View product → | |
| 9 | 81260-ABD2-C00-N1R | ASSY., BOX LUGGAGE | 1 | $138.57 USD | View product → | |
| 10 | 83500-ABD2-C00-85P | "COVER, R BODY" | 1 | $139.71 USD | View product → | |
| 11 | 83600-ABD2-C00-85P | COVER L BODY | 1 | $175.95 USD | View product → | |
| 12 | 83750-ABD2-C00-85P | COVER RR CENTER | 1 | $92.19 USD | View product → | |
| 13 | 90106-KFC2-900 | BOLT-WASH 8MM | 4 | $10.80 USD | View product → | |
| 14 | 90111-06016-07G | BOLT FLANGE 6*16 (K) | 2 | $4.65 USD | View product → | |
| 15 | 90215-KKC4-C00 | NUT CAP 6MM | 2 | $9.18 USD | View product → | |
| 16 | 90301-6C93-C01 | NUT 6MM OPENSTAY | 6 | $8.97 USD | View product → | |
| 17 | 90302-LKB9-C00 | NUT SPRING 5MM | 2 | $7.02 USD | View product → | |
| 18 | 90302-SDA4-C01 | NUT SPRING 4MM | 2 | $0.99 USD | View product → | |
| 19 | 90652-LCA4-C10 | CLIP MUDGUARD | 1 | $5.67 USD | View product → | |
| 20 | 90652-LFB5-C00 | CLIP MUDGUARD | 5 | $2.31 USD | View product → |
