F04 — Front Cover●Tank Cover

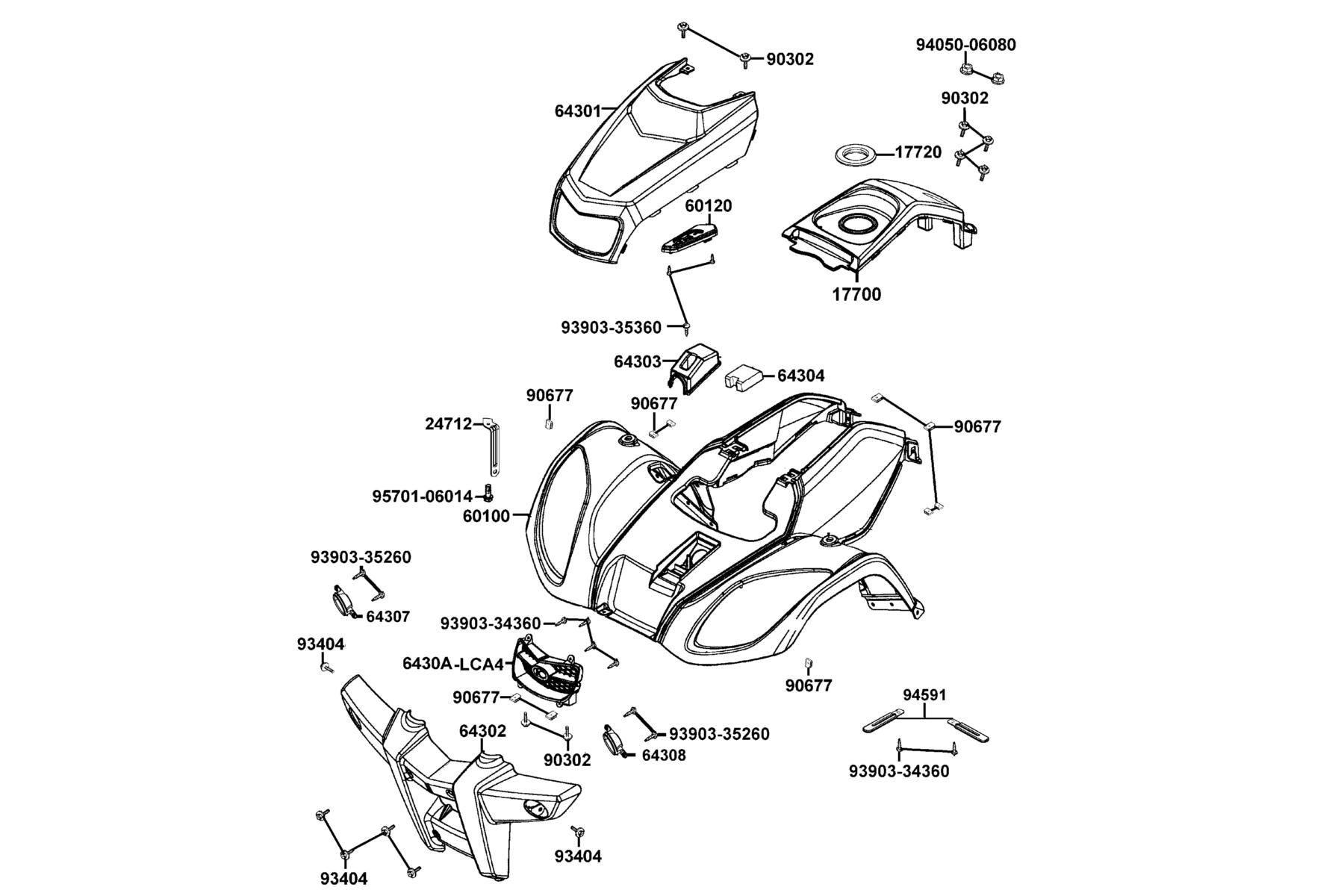

The Front Cover●Tank Cover diagram contains 21 genuine OEM parts for the KYMCO MXU 150(2019). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17700-LCA4-E00-GWR | COVER TANK | 1 | $57.42 USD | View product → | |
| 2 | 17720-LBA7-900 | TRAY TANK COVER | 1 | $17.07 USD | View product → | |
| 3 | 24712-LCA4-E00 | STAY GUIDE COVER | 1 | $10.14 USD | View product → | |
| 4 | 60100-LCA4-M00-GWR | FENDER FRONT | 1 | $214.05 USD | View product → | |
| 5 | 60120-LCA4-E00-N1R | GUIDE COVER CHANGE HANDLE (Black) | 1 | $13.80 USD | View product → | |
| 6 | 64301-LCA4-E00-GWR | COVER FRONT | 1 | $41.58 USD | View product → | |
| 7 | 64302-LCA5-E01-N1R | BUMPER FRONT (Black) | 1 | $110.22 USD | View product → | |
| 8 | 64303-LLB1-900 | COVER CVT ELEMENT | 1 | $5.55 USD | View product → | |
| 9 | 64304-LLB1-900 | CVT ELEMENT | 1 | $4.89 USD | View product → | |
| 10 | 64307-LCA5-900 | CAP R FR BUMPER | 1 | $7.59 USD | View product → | |
| 11 | 64308-LCA5-900 | CAP L FR BUMPER | 1 | $7.59 USD | View product → | |
| 12 | 6430A-LCA4-E00-T01 | COVER ASSY GRILLE | 1 | — | Part details → | |
| 13 | 90302-PWA1-900 | BOLT-WASH 5*16 | 8 | $4.92 USD | View product → | |
| 14 | 90677-GAR1-004 | NUT CLIP 5MM | 10 | $3.00 USD | View product → | |
| 15 | 93404-KKC2-900-06 | BOLT-WASH 6X16 | 6 | $4.92 USD | View product → | |
| 16 | 93903-34360 | SCREW TAPPING 4X12 | 6 | $4.29 USD | View product → | |
| 17 | 93903-35260 | SCREW TAPPING 5*12 | 4 | $4.92 USD | View product → | |
| 18 | 93903-35360 | SCREW TAPPING 5*16 | 3 | $3.78 USD | View product → | |
| 19 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → | |
| 20 | 94591-27000 | CLIP 2X70 | 2 | $3.78 USD | View product → | |
| 21 | 95701-06014-06 | BOLT FLANGE 6*14 | 1 | $1.65 USD | View product → |
