F12 — Air Cleaner

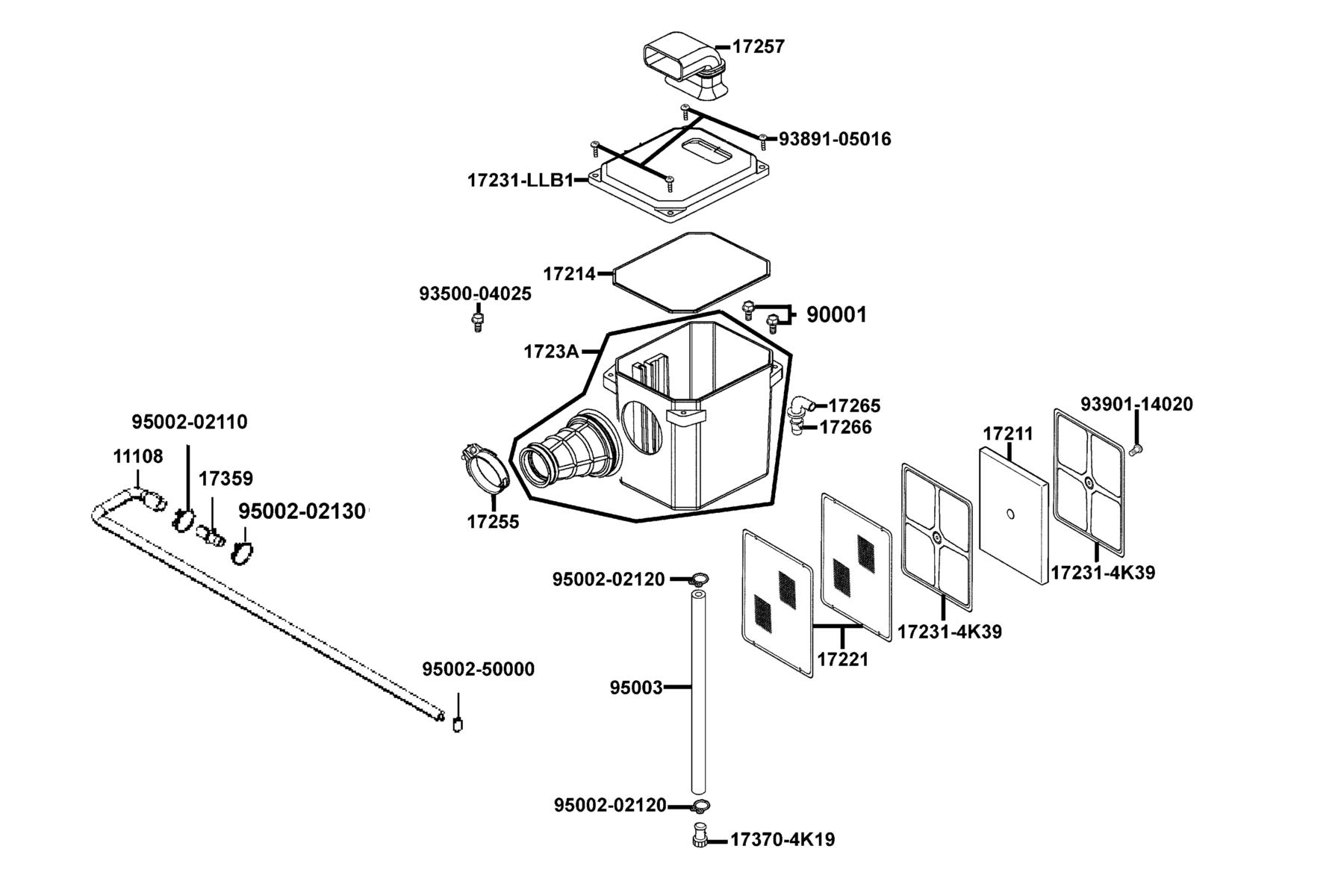

The Air Cleaner diagram contains 22 genuine OEM parts for the KYMCO MXU 150(2019). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11108-LLB1-900 | TUBE B | 1 | $11.31 USD | View product → | |
| 2 | 17211-4K39-001 | ELEMENT AIR/C | 1 | $28.05 USD | View product → | |
| 3 | 17214-LLB1-900 | SEAL AIR/C COVER | 1 | $6.78 USD | View product → | |
| 4 | 17221-KGG7-001 | TRAP COMP | 2 | $17.79 USD | View product → | |
| 5 | 17231-4K39-001 | PLATE ELEMENT SET | 2 | $8.67 USD | View product → | |
| 6 | 17231-LLB1-900 | COVER AIR/C | 1 | $58.38 USD | View product → | |
| 7 | 1723A-LLB1-900 | CASE ASSY AIR/C | 1 | $120.60 USD | View product → | |
| 8 | 17255-KAK-9000 | BAND A AIR/C CONNECTING TUBE | 1 | $12.09 USD | View product → | |
| 9 | 17257-LLB1-900 | DUCT AIR/C COVER | 1 | $17.13 USD | View product → | |
| 10 | 17265-KGG7-001 | JOINT BLOW BY | 1 | $12.09 USD | View product → | |
| 11 | 17266-KGG7-001 | PACKING ACV JOINT | 1 | $6.06 USD | View product → | |
| 12 | 17359-4K19-671 | JOINT BREATHER TUBE | 1 | $4.92 USD | View product → | |
| 13 | 17370-4K19-701 | PLUG BREATHER TUBE | 1 | $4.92 USD | View product → | |
| 14 | 90001-GBHB-681 | BOLT FLANGE SHF 6*28 | 2 | $4.92 USD | View product → | |
| 15 | 93500-04025-0F | SCREW PAN 4X25 | 1 | $0.99 USD | View product → | |
| 16 | 93891-05016-06 | SCREW WASHER 5* 16 | 1 | $1.86 USD | View product → | |
| 17 | 93901-14020 | SCREW TAPPING 4*6 | 1 | $3.51 USD | View product → | |
| 18 | 95002-02110 | CLIP | 1 | $4.92 USD | View product → | |
| 19 | 95002-02120 | CLIP B12 TUBE | 2 | $1.86 USD | View product → | |
| 20 | 95002-02130 | CLIP B12.5 TUBE | 1 | $1.86 USD | View product → | |
| 21 | 95002-50000 | CLIP C9 TUBE | 1 | $1.86 USD | View product → | |
