F04 — Master Cylinder

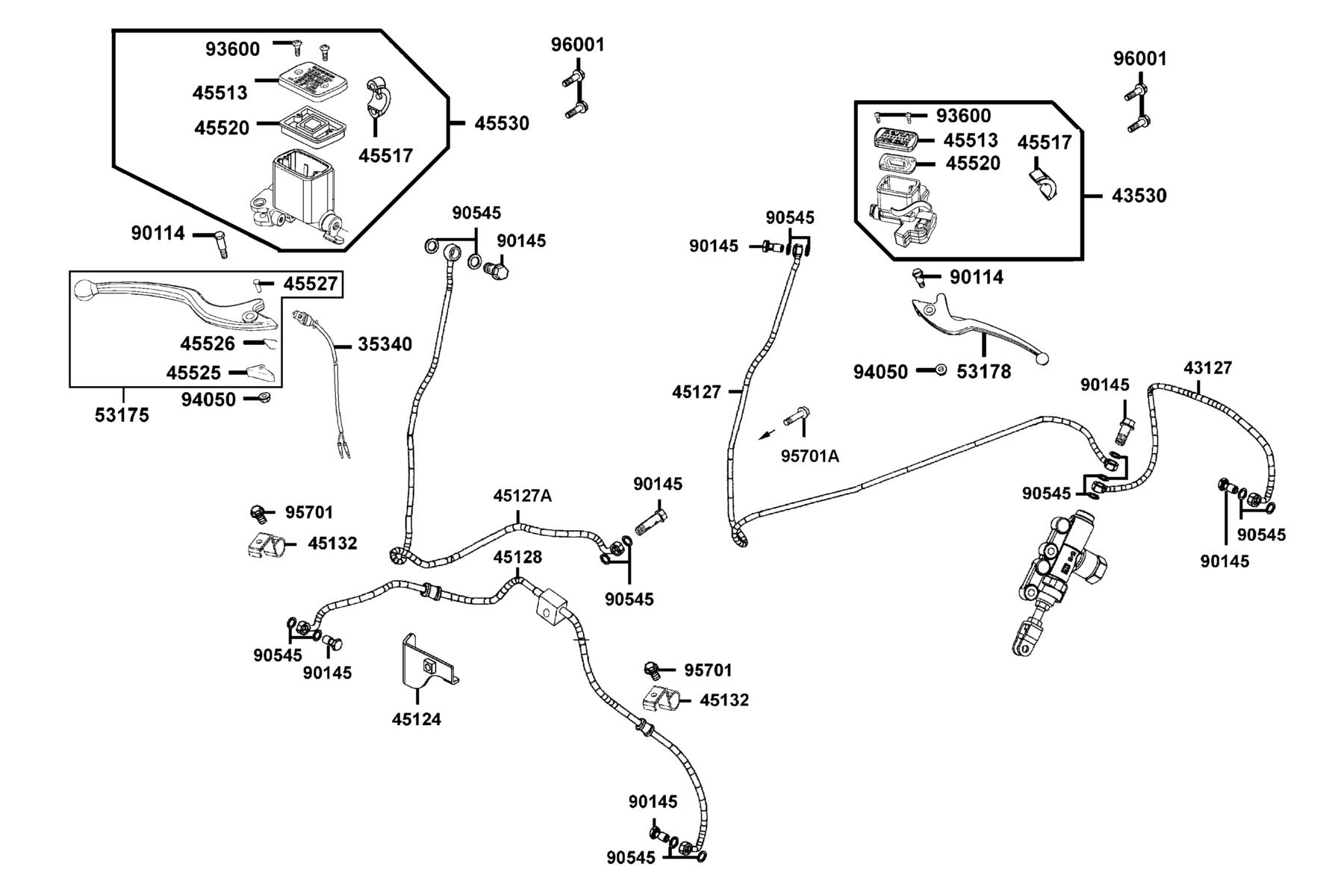

The Master Cylinder diagram contains 27 genuine OEM parts for the KYMCO MAXXER 450i. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 35340-LDB5-900 | SW ASSY FR STOP | 1 | $44.85 USD | View product → | |
| 2 | 43127-LFA5-E00 | HOSE???BRAKE-SECONDARY | 1 | $154.38 USD | View product → | |
| 3 | 43530-LGN5-305 | CYLINDER SET MASTER | 1 | $204.27 USD | View product → | |
| 4 | 45124-PWB1-900 | STAY THREE WAY JUNCTION | 1 | $27.00 USD | View product → | |
| 5 | 45127-LGN5-900 | HOSE . BRAKE LHM/C-FOOT M/C | 1 | $213.39 USD | View product → | |
| 6 | 45127-PWB1-900 | HOSE BRAKE-MC/JUNCTION | 1 | $173.37 USD | View product → | |
| 7 | 45128-PWB1-600 | HOSE FR BRAKE (JUNCTION-C/P) | 1 | $232.89 USD | View product → | |
| 8 | 45132-LBA7-900 | CLAMPER FR BRAKE HOSE | 2 | $16.14 USD | View product → | |
| 9 | 45513-KKC4-900 | CAP M/C | 2 | $2.82 USD | View product → | |
| 10 | 45517-KFAF-910 | HOLDER M/C | 2 | $17.43 USD | View product → | |
| 11 | 45517-KFAF-910(wrong) | HOLDER M/C | 2 | $13.41 USD | View product → | |
| 12 | 45520-KKC4-900 | DIAPHRAGM | 2 | $1.08 USD | View product → | |
| 13 | 45525-LBA7-900 | STOPPER | 1 | $23.40 USD | View product → | |
| 14 | 45526-LBA7-900 | SPRING | 1 | $9.39 USD | View product → | |
| 15 | 45527-LBA7-900 | PIN PARK | 1 | $9.39 USD | View product → | |
| 16 | 45530-LDB5-305 | CYLINDER SET FR | 1 | $226.26 USD | View product → | |
| 17 | 53175-LFA5-305 | LEVER SET BRK | 1 | $125.70 USD | View product → | |
| 18 | 53178-KFC8-E10-M2A | LEVER L STRG HNDL | 1 | $48.30 USD | View product → | |
| 19 | 90114-1F66-007 | BOLT HANDLE LEVER | 2 | $4.92 USD | View product → | |
| 20 | 90145-LEA3-E00 | OIL BOLT 10*22 | 7 | $22.86 USD | View product → | |
| 21 | 90545-3L00-001 | WASHER OIL BOLT | 21 | $2.91 USD | View product → | |
| 22 | 90545-3L00-001(wrong) | WASHER OIL BOLT | 21 | $3.78 USD | View product → | |
| 23 | 93600-04012-1G | SCREW FLAT 4*12 | 4 | $5.67 USD | View product → | |
| 24 | 94050-06060 | NUT FLANGE 6MM | 2 | $4.92 USD | View product → | |
| 25 | 95701-06012-06 | BOLT FLANGE 6X12 | 3 | $1.86 USD | View product → | |
| 26 | 95701-06030-06 | BOLT FLANGE 6X30 | 1 | $4.92 USD | View product → | |
| 27 | 96001-06022-06 | BOLT FLANGE SH 6X22 | 4 | $4.26 USD | View product → |
