F10 — Fuel Tank

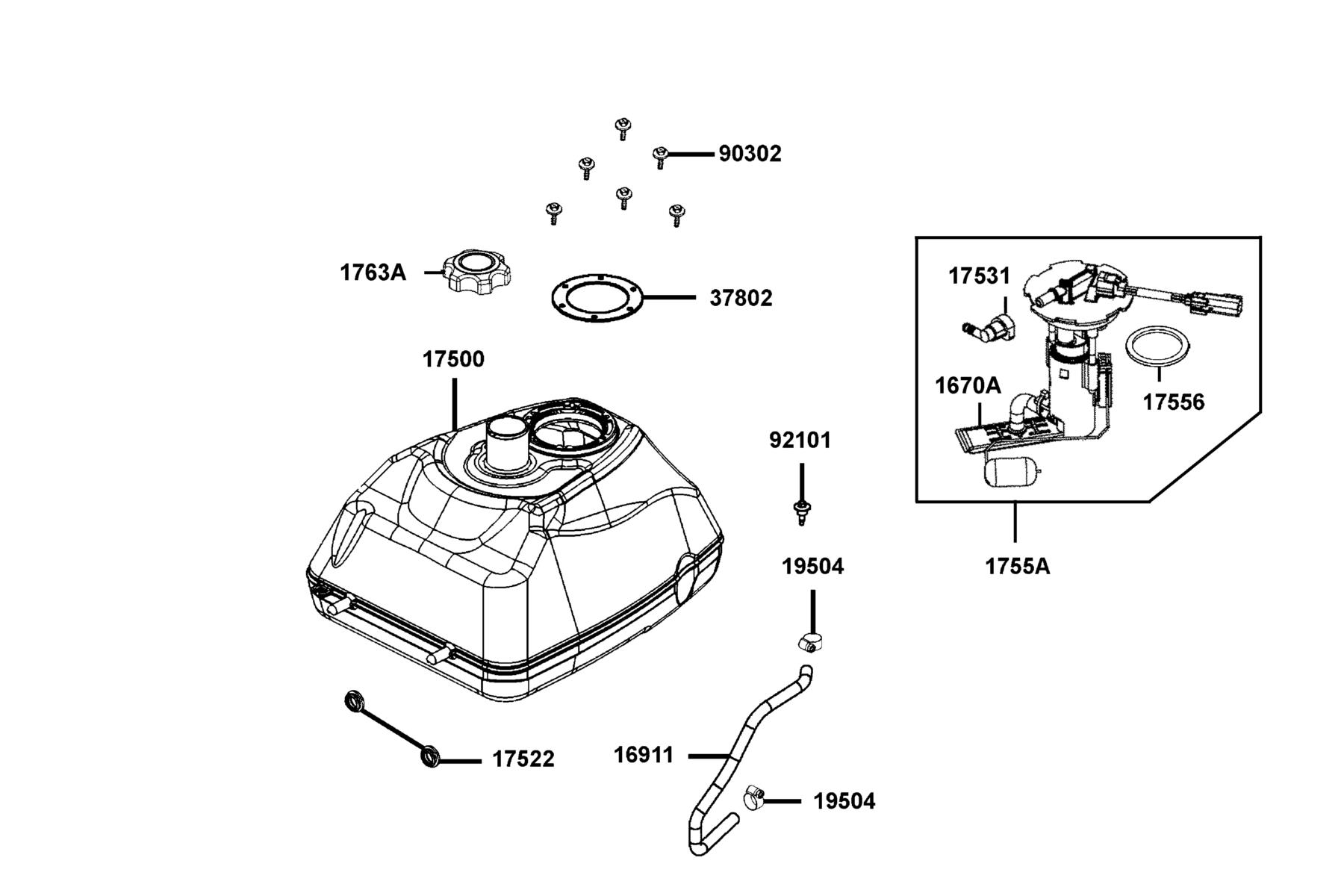

The Fuel Tank diagram contains 12 genuine OEM parts for the KYMCO MAXXER 450i. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 1670A-PTA1-800 | FUEL FILTER | 1 | $63.33 USD | View product → | |
| 2 | 16911-LGC7-920 | TUBE FUEL | 1 | $70.38 USD | View product → | |
| 3 | 17500-ZXA6-M02 | TANK COMP FUEL | 1 | $514.20 USD | View product → | |
| 4 | 17522-PWB1-900 | GROMMET FUEL TANK | 2 | $5.31 USD | View product → | |
| 5 | 17531-LGC7-E01 | CONNECTOR FUEL PUMP-90 DEGREE | 1 | $52.50 USD | View product → | |
| 6 | 17556-PTA1-800 | FUEL PUMP SEAL | 1 | $36.24 USD | View product → | |
| 7 | 1755A-PTA1-800 | FUEL PUMP ASSEMBLY | 1 | $753.48 USD | View product → | |
| 8 | 1763A-AGA8-E00 | CAP ASSY???FUEL TANK | 1 | $32.97 USD | View product → | |
| 9 | 19504-LBA2-E00 | CLAMP D16.8 | 2 | $13.95 USD | View product → | |
| 10 | 37802-LGC3-E00 | MOUNT FUEL PUMP | 1 | $25.65 USD | View product → | |
| 11 | 90302-LLB1-E00 | BOLT-WASH 5X12 | 6 | $2.61 USD | View product → | |
