F05 — Front Cover ● Front Fender

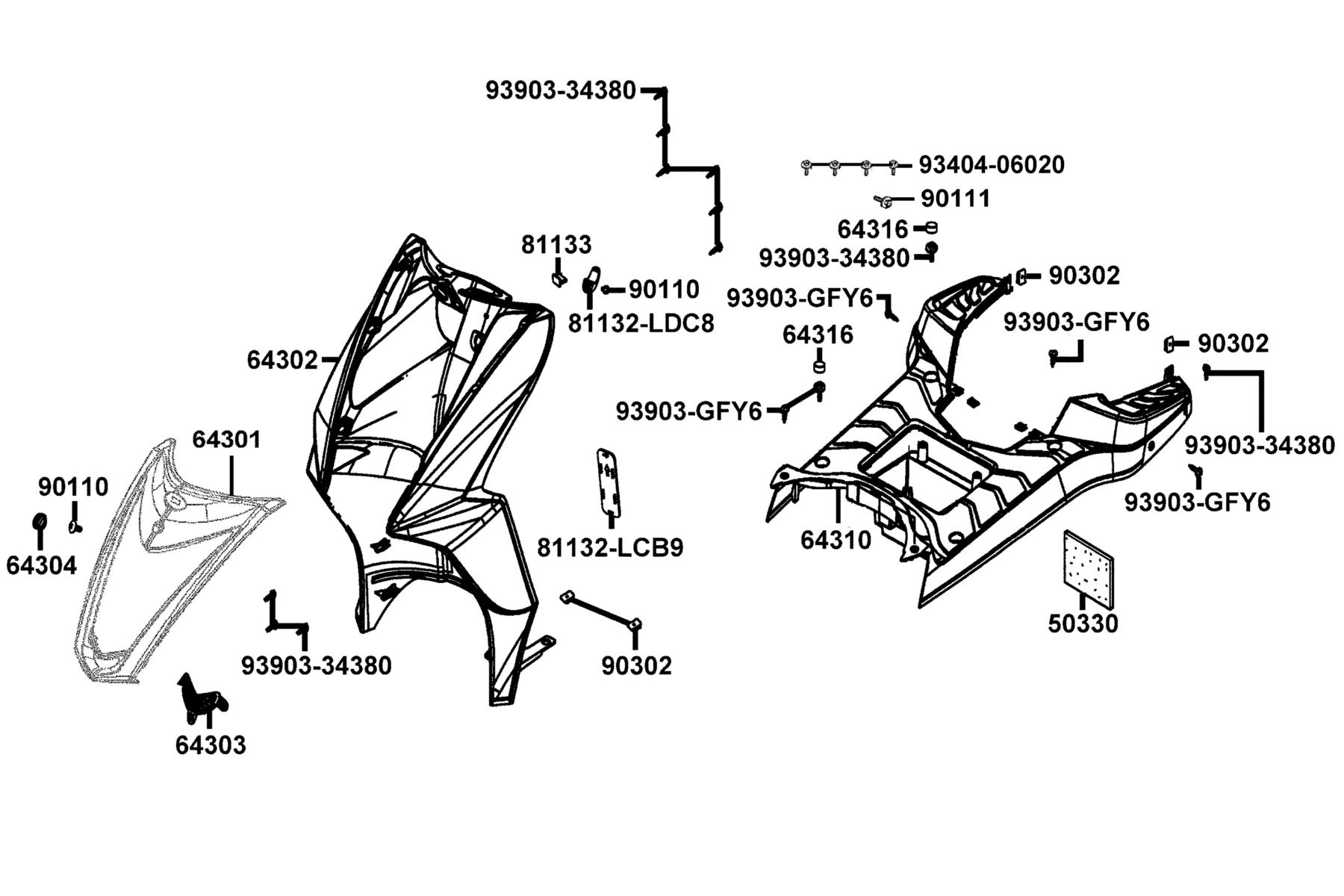

The Front Cover ● Front Fender diagram contains 15 genuine OEM parts for the KYMCO SUPER 8 50X (2022). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 50330-KEBE-C00 | SEAL BATTER FRONT | 1 | $13.56 USD | View product → | |
| 2 | 64301-AAE6-B40-93P | COVERT FRONT (Plain Gray) | 1 | $81.27 USD | View product → | |
| 3 | 64302-LGB5-E10-N1R | MOLD FRONT ASSY | 1 | $151.17 USD | View product → | |
| 4 | 64303-LGB5-E10-N1R | GRILL FRONT | 1 | $9.00 USD | View product → | |
| 5 | 64304-LGB5-E10-93P | CAP FRONT COVER (Flat Deep Blue) | 1 | $8.97 USD | View product → | |
| 6 | 64310-LGB5-E10-N1R | FLOOR PANEL | 1 | $188.97 USD | View product → | |
| 7 | 64316-LCB9-C10-N1R | PLUG FLOOR (Black) | 1 | $6.09 USD | View product → | |
| 8 | 81132-LCB9-C10-N1R | LID LEG SHIELD | 1 | $12.99 USD | View product → | |
| 9 | 81132-LDC8-E10-N1R | HOOK LUGGAGE | 1 | $6.09 USD | View product → | |
| 10 | 81133-KNBN-C00 | STOPPER LUGGAGE | 1 | $3.39 USD | View product → | |
| 11 | 90110-GLW0-C00 | SCREW SPECIAL 6*14(CR) | 1 | $8.16 USD | View product → | |
| 12 | 90111-1G87-C01 | BOLT FLANGE 6MM | 1 | $5.31 USD | View product → | |
| 13 | 90302-SDA4-C01 | NUT SPRING 4MM | 1 | $0.99 USD | View product → | |
| 14 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 10 | $2.73 USD | View product → | |
| 15 | 93903-GFY6-C01 | SCREW TAPPING 4*14(K) | 1 | $4.92 USD | View product → |
