F17 — Front Winker

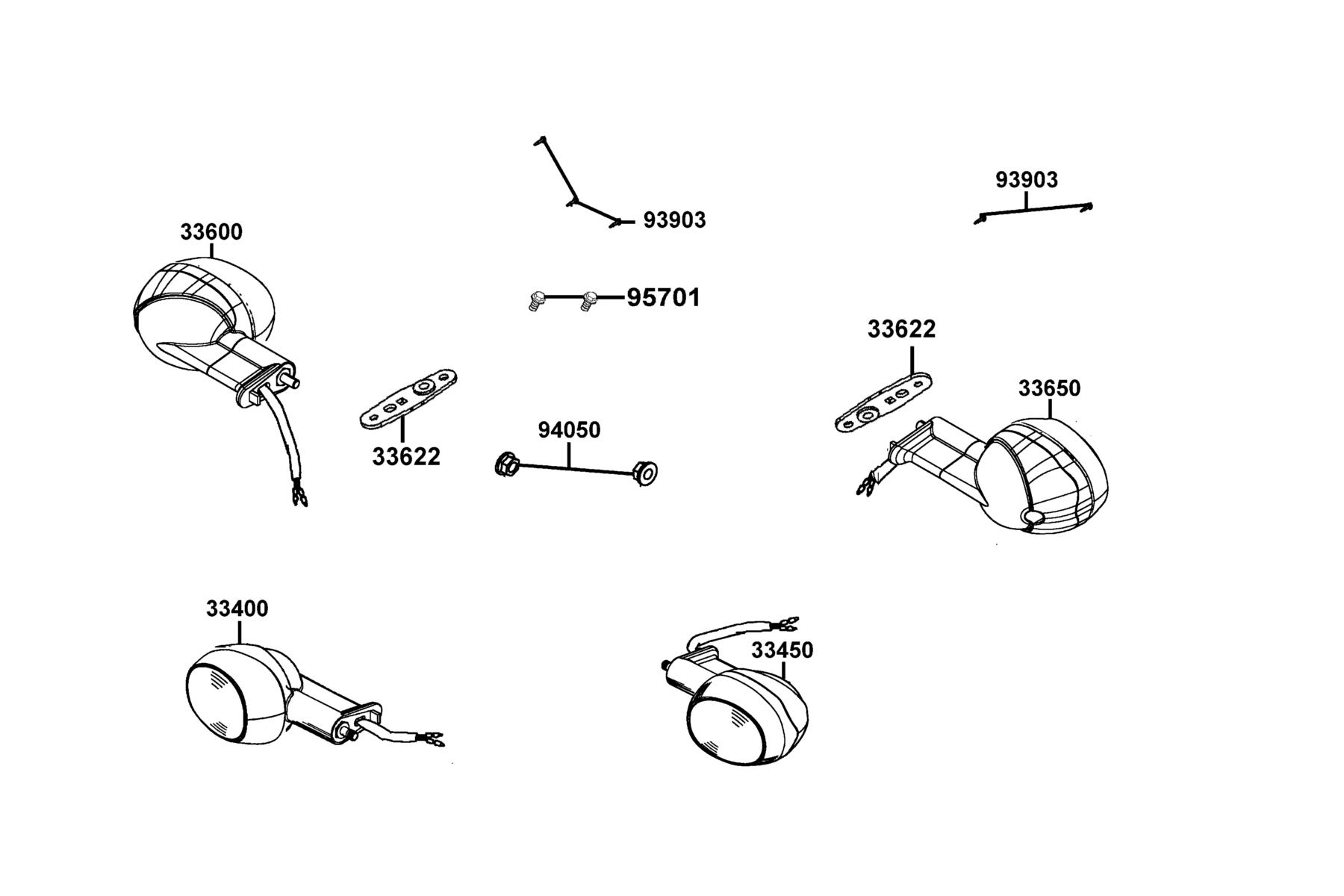

The Front Winker diagram contains 8 genuine OEM parts for the KYMCO SUPER 8 50X (2022). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33400-ADA9-M30 | WINKER ASSY R FR | 1 | $101.94 USD | View product → | |
| 2 | 33450-ADA9-M30 | WINKER ASSY L FR | 1 | $101.94 USD | View product → | |
| 3 | 33600-ADA9-M30 | WINKER ASSY R RR | 1 | $98.49 USD | View product → | |
| 4 | 33622-ADA9-M30 | "STAY,WINKER ASSY RR" | 1 | $15.06 USD | View product → | |
| 5 | 33650-ADA9-M30 | WINKER ASSY L RR | 1 | $98.49 USD | View product → | |
| 6 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 6 | $2.73 USD | View product → | |
| 7 | 94050-08080-G | NUT FLANGE 8MM | 4 | $1.95 USD | View product → | |
| 8 | 95701-06016-07G | BOLT FLANGE SH 6*16 (KG) | 2 | $0.99 USD | View product → |
