F03 — Handle Steering ● Handle Cover

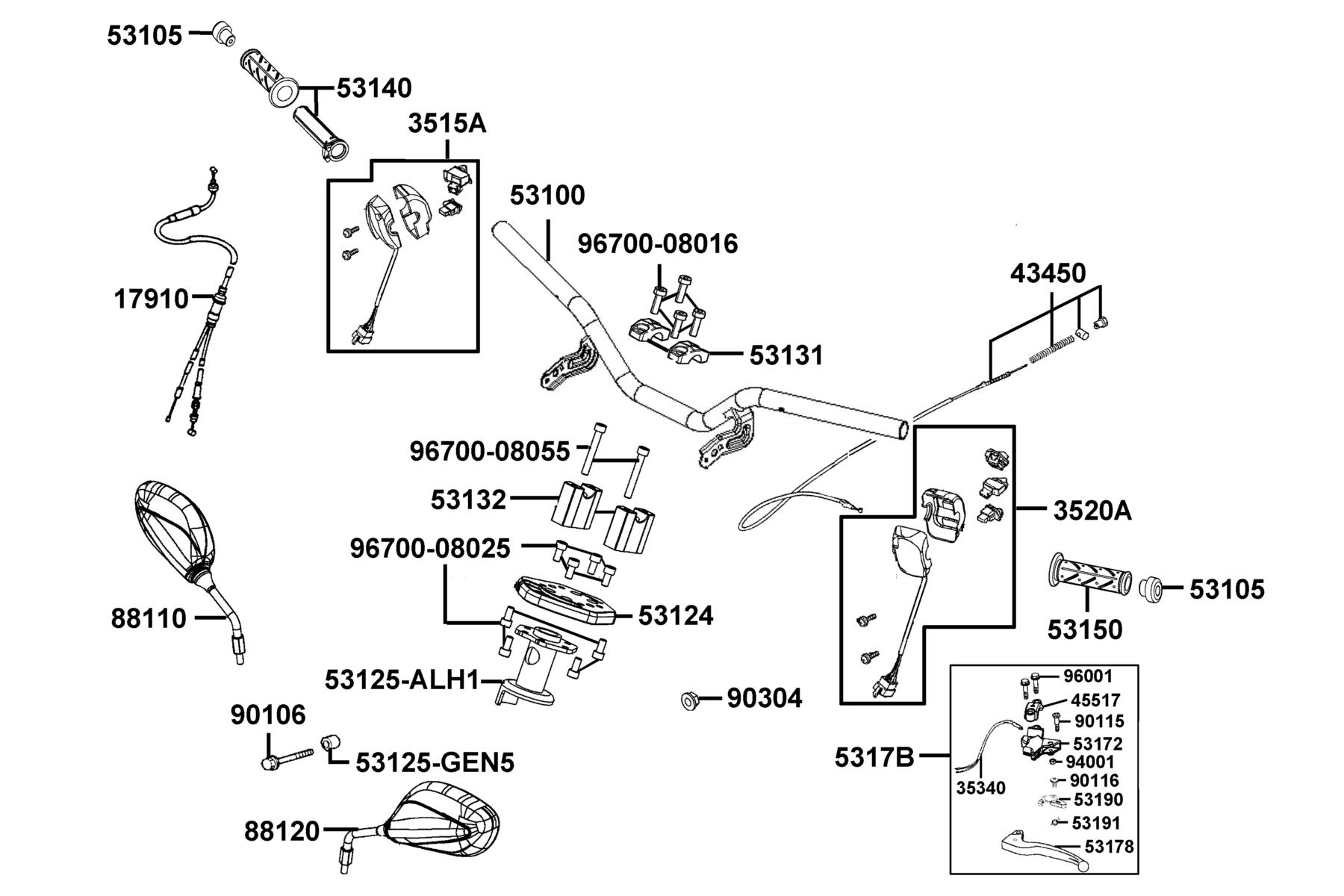

The Handle Steering ● Handle Cover diagram contains 31 genuine OEM parts for the KYMCO SUPER 8 50X (2022). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17910-LDC8-E10 | CABLE COMP THROT | 1 | $87.87 USD | View product → | |
| 2 | 3515A-ADA9-M30 | SW ASSY RH HNDL COMP | 1 | $140.76 USD | View product → | |
| 3 | 3520A-ALH1-E60 | SW ASSY LH HANDLE COMP | 1 | $128.13 USD | View product → | |
| 4 | 35340-LHM9-E60 | "SW ASS'Y.,FR STOP" | 1 | $27.15 USD | View product → | |
| 5 | 43450-AAF1-E60 | CABLE COMP RR BRK | 1 | $65.16 USD | View product → | |
| 6 | 45517-GFY6-C00 | HOLDER MASTER CYLINDER | 1 | $10.14 USD | View product → | |
| 7 | 53100-ADA9-M31-NEA | HANDLE COMP STEERING | 1 | $139.98 USD | View product → | |
| 8 | 53105-KNBN-C00 | END STRG HANDLE | 1 | $10.14 USD | View product → | |
| 9 | 53124-ALH1-E60 | BRIDGE HANDLE PIPE | 1 | $119.67 USD | View product → | |
| 10 | 53125-ALH1-E60 | STAY L HANDLE UP COVER | 1 | $125.70 USD | View product → | |
| 11 | 53125-GEN5-C00 | COLLAR HANDLE SET | 1 | $19.80 USD | View product → | |
| 12 | 53131-ALH1-E60 | HOLDER UPPER HNDLE PIPE | 1 | $26.76 USD | View product → | |
| 13 | 53132-ALH1-E60 | HOLDER UNDER HNDLE PIPE | 2 | $74.52 USD | View product → | |
| 14 | 53140-LFB6-800-N1R | GRIP COMP THROT (Black) | 1 | $37.80 USD | View product → | |
| 15 | 53150-LEA6-900-N1R | GRIP COMP L HANDLE (Black) | 1 | $28.05 USD | View product → | |
| 16 | 53172-LHM9-E60 | BRKT HNDL L | 1 | $59.79 USD | View product → | |
| 17 | 53178-LGB6-E10-M3A | LEVER L STRG HANDLE | 1 | $51.15 USD | View product → | |
| 18 | 5317B-LHM9-E60-M3A | BRKT ASSY HNDL LH | 1 | $111.03 USD | View product → | |
| 19 | 53190-GFY6-C00 | LEVER COMP P/BRK | 1 | $10.14 USD | View product → | |
| 20 | 53191-GFY6-C00 | SPG PKB LEVER | 1 | $1.65 USD | View product → | |
| 21 | 88110-LEB5-M30-NEP | MIRROR ASSY R BACK | 1 | $78.45 USD | View product → | |
| 22 | 88120-LEB5-M30-NEP | MIRROR ASSY L BACK | 1 | $79.68 USD | View product → | |
| 23 | 90106-PUA3-B50 | BOLT FLANGE 10*50 | 1 | $4.92 USD | View product → | |
| 24 | 90115-GLE0-C00 | BOLT HNDL LEVER PIVOT | 1 | $13.77 USD | View product → | |
| 25 | 90116-GGS7-C00 | SCREW P/BRK LEVER PIVOT | 1 | $1.65 USD | View product → | |
| 26 | 90304-GHE8-C01 | NUT U 10MM(C) | 1 | $21.45 USD | View product → | |
| 27 | 94001-05080-0S | NUT HEX 5MM | 1 | $4.92 USD | View product → | |
| 28 | 96001-06025-02 | BOLT FLANGE SH 6X25 | 1 | $5.58 USD | View product → | |
| 29 | 96700-08016-02 | BOLT FLANGE SH 8*16(CR) | 10 | $9.18 USD | View product → | |
| 30 | 96700-08025-02 | BOLT FLANGE SH 8*25(CR) | 4 | $5.10 USD | View product → | |
| 31 | 96700-08055-02 | BOLT FLANGE SH 8*55(CR) | 2 | $12.78 USD | View product → |
