F22 — Emblem ● Stripe

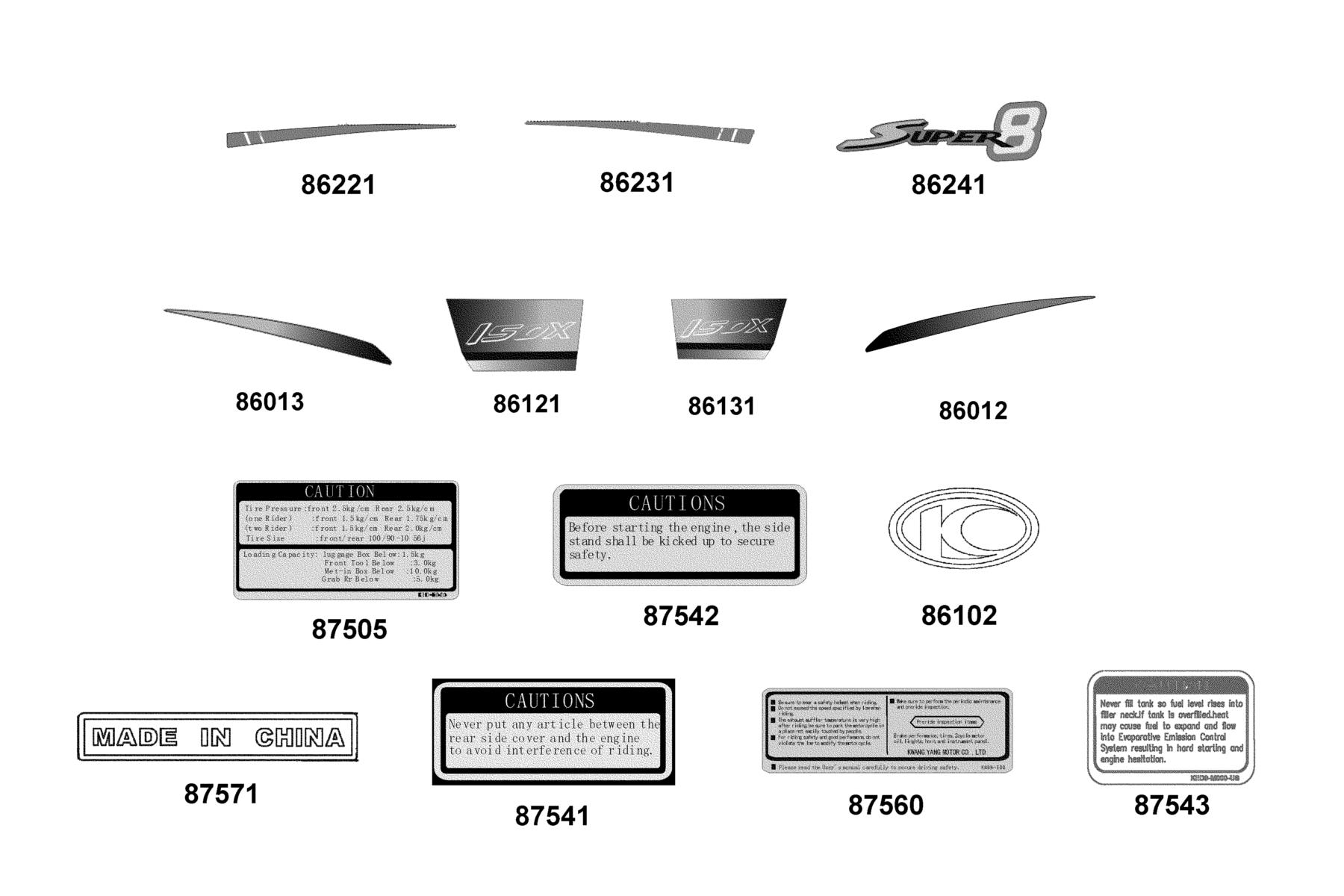

The Emblem ● Stripe diagram contains 14 genuine OEM parts for the KYMCO SUPER 8 50X (2022). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 86012-ADB1-M33-T01 | STRIPE R HANDLE COVER FR | 1 | $62.49 USD | View product → | |
| 2 | 86013-ADB1-M33-T01 | STRIPE L HANDLE COVER FR | 1 | $62.49 USD | View product → | |
| 3 | 86102-ALG1-E00-T01 | EMB K-LOGO | 1 | $47.49 USD | View product → | |
| 4 | 86121-ADA9-M33-T01 | STRIPE R FR COVER | 1 | $29.61 USD | View product → | |
| 5 | 86131-ADA9-M33-T01 | STRIPE L FR COVER | 1 | $29.61 USD | View product → | |
| 6 | 86221-ADA9-M33-T01 | STRIPE R BODY COVER | 1 | $6.69 USD | View product → | |
| 7 | 86231-ADA9-M33-T01 | STRIPE L BODY COVER | 1 | $20.79 USD | View product → | |
| 8 | 86241-ADA9-M33-T01 | STRIPE B R BODY COVER | 2 | $10.71 USD | View product → | |
| 9 | 87505-LDC8-E10-T01 | LABEL TIRE | 1 | $1.32 USD | View product → | |
| 10 | 87541-GAR1-C01-T01 | CAUTION SIDE STAND | 1 | $5.34 USD | View product → | |
| 11 | 87542-GAR1-C01-T01 | MARK MAINT CAUTION R | 1 | $2.97 USD | View product → | |
| 12 | 87543-KED9-M30-T01 | LABEL FUEL FILL CAUTION | 1 | $7.80 USD | View product → | |
| 13 | 87560-GFY6-E11-T01 | MARK DRIVE CAUTION | 1 | $6.87 USD | View product → | |
| 14 | 87571-LDC8-B90-T01 | LABEL MIC | 1 | $7.23 USD | View product → |
