F07 — Front Wheel

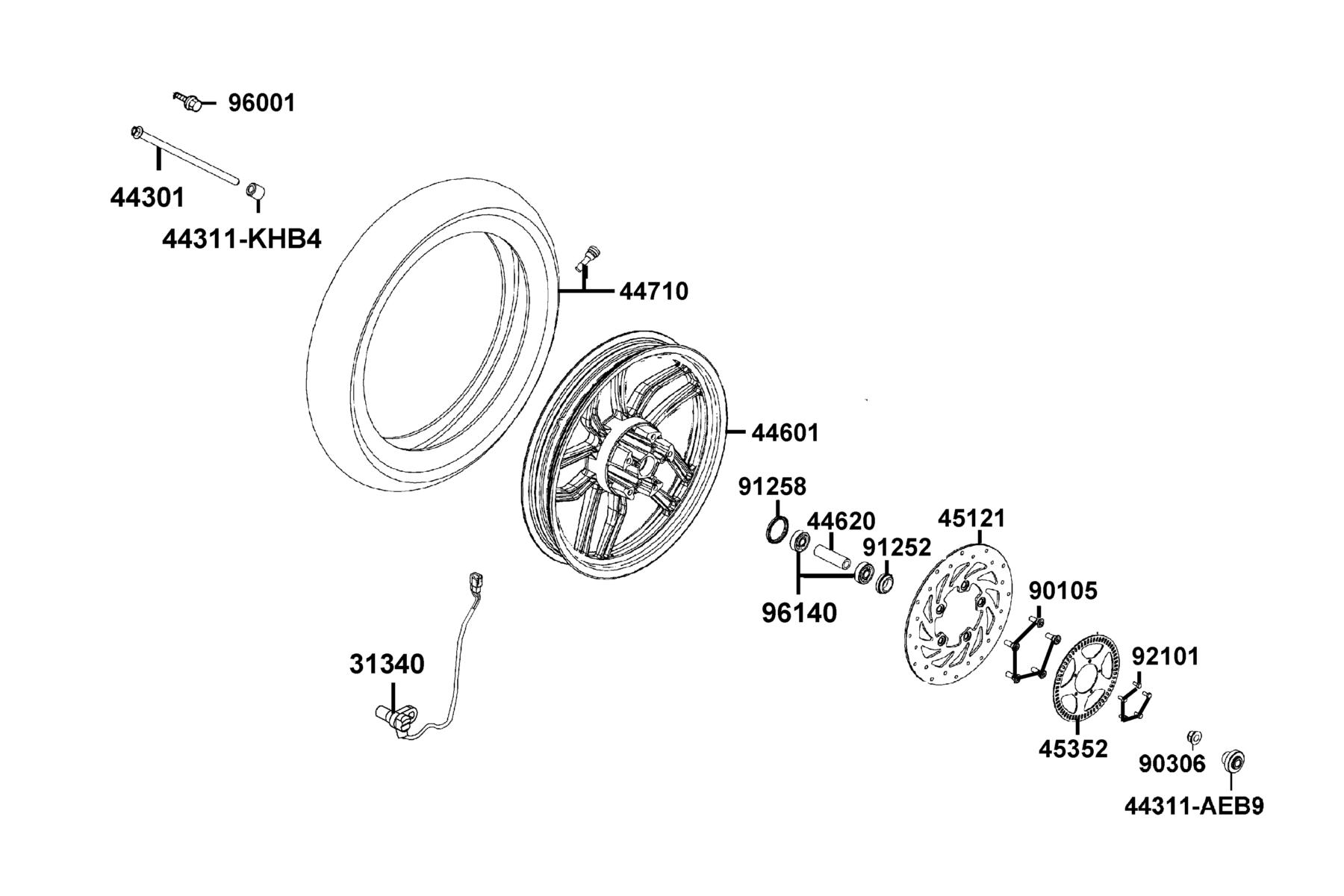

The Front Wheel diagram contains 16 genuine OEM parts for the KYMCO People S 150i ABS MY2026. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 31340-LFH1-E00 | SENSOR RR WHEEL SPEED | 1 | $168.96 USD | View product → | |
| 2 | 44301-LEJ2-E13 | AXLE FR WHEEL 12*243(K) | 1 | $42.78 USD | View product → | |
| 3 | 44311-AEB9-M30 | COLLAR FR WHEEL SIDE | 1 | $29.88 USD | View product → | |
| 4 | 44311-KHB4-C01 | COLLAR FR WHEEL SIDE | 1 | $17.61 USD | View product → | |
| 5 | 44601-AEB9-E00-N1A | WHEEL CAST FR | 1 | $457.77 USD | View product → | |
| 6 | 44620-KFLF-C00 | COLLAR FR DIST | 1 | $22.62 USD | View product → | |
| 7 | 44710-LFC4-E91 | TIRE ASSY FR ????O | 1 | $523.52 USD | View product → | |
| 8 | 45121-LFC2-E80 | DISK FR BRK | 1 | $123.18 USD | View product → | |
| 9 | 45352-AED9-E10 | DISK FR BRK | 1 | $19.59 USD | View product → | |
| 10 | 90105-KCR3-C01 | BOLT FR DISK 8X24 | 5 | $7.92 USD | View product → | |
| 11 | 90306-LKL5-E31 | NUT U FLANGE 12MM(K) | 1 | $18.96 USD | View product → | |
| 12 | 91252-0L30-C00 | OIL SEAL WHEEL 23*37*7 | 1 | $6.54 USD | View product → | |
| 13 | 91258-4L10-007 | DUST SEAL 40*50*5 | 1 | $9.78 USD | View product → | |
| 14 | 92101-05012-0HG | BOLT HEX 5*12 | 5 | $0.66 USD | View product → | |
| 15 | 96001-06012-08G | BOLT FLANGE SH 6X12 (C) | 1 | $0.99 USD | View product → | |
| 16 | 96140-63010-10 | BEARING BALL RADIAL 6301 U | 2 | $50.07 USD | View product → |
