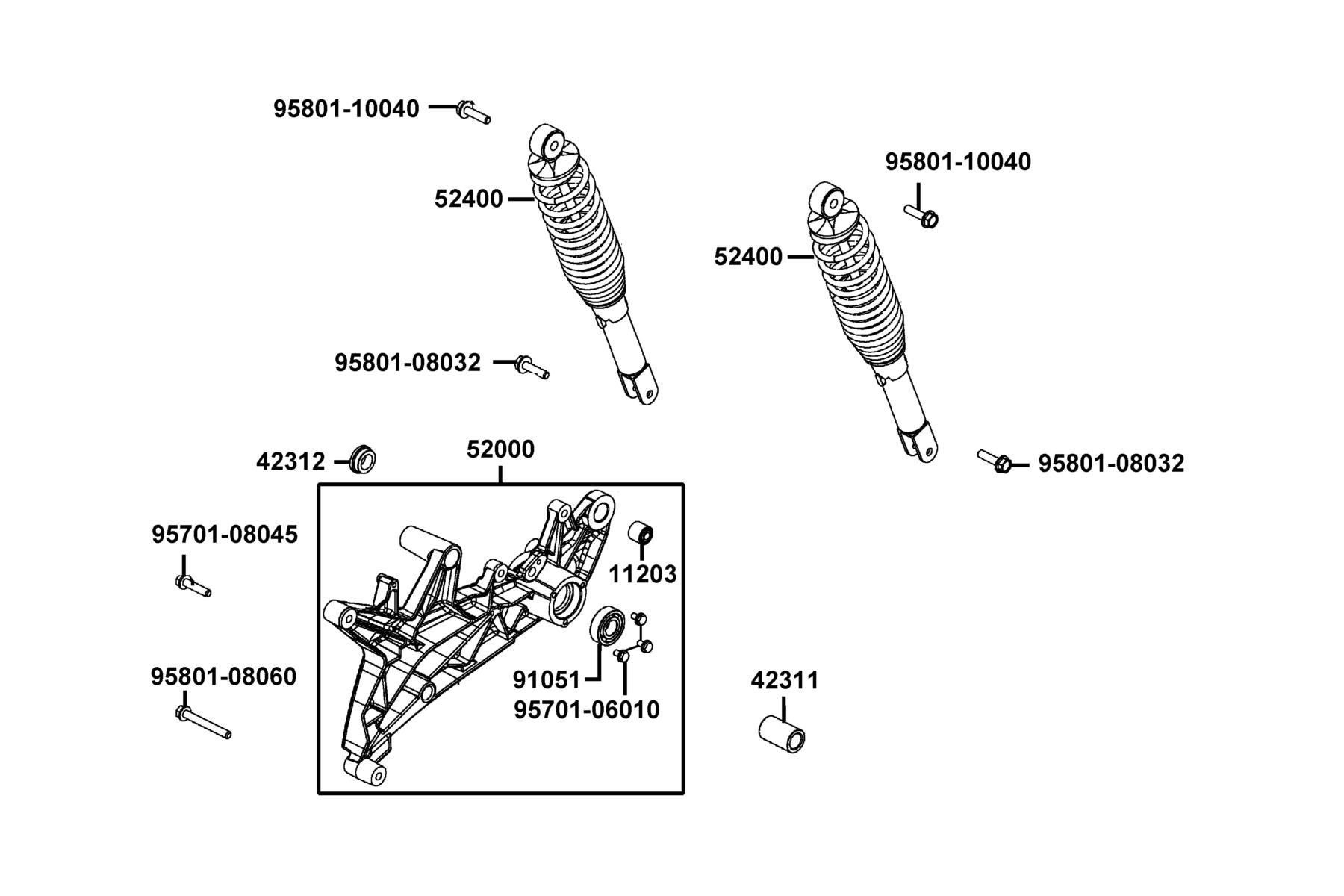

F16 — Rear Cushion
The Rear Cushion diagram contains 11 genuine OEM parts for the KYMCO People S 150i ABS MY2026. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11203-GGC7-W10 | BUSH | 1 | $14.31 USD | View product → | |
| 2 | 42311-LFB5-C00 | COLLAR REAR HUB SIDE | 1 | $17.58 USD | View product → | |
| 3 | 42312-LEJ2-E10 | COLLAR RR AXLE SIDE | 1 | $23.31 USD | View product → | |
| 4 | 52000-ADD1-E00 | FORK ASSY, RR | 1 | $240.15 USD | View product → | |
| 5 | 52400-AEB9-E00-NES | CUSHION ASSY REAR | 2 | $149.70 USD | View product → | |
| 6 | 91051-KFBF-C00 | BRG BALL RADIAL 6203 LLU | 1 | $45.15 USD | View product → | |
| 7 | 95701-06010-07G | BOLT FLANGE 6*10 (K) | 3 | $0.99 USD | View product → | |
| 8 | 95701-08045-07G | BOLT FLANGE 8*45(K) | 1 | $8.97 USD | View product → | |
| 9 | 95801-08032-07G | BOLT FLANGE 8*32(K) | 2 | $3.27 USD | View product → | |
| 10 | 95801-08060-07G | BOLT FLANGE 8*60 (C) | 1 | $13.62 USD | View product → | |
| 11 | 95801-10040-08G | BOLT FLANGE 10*40 | 2 | $6.24 USD | View product → |
