F01 — Head Light

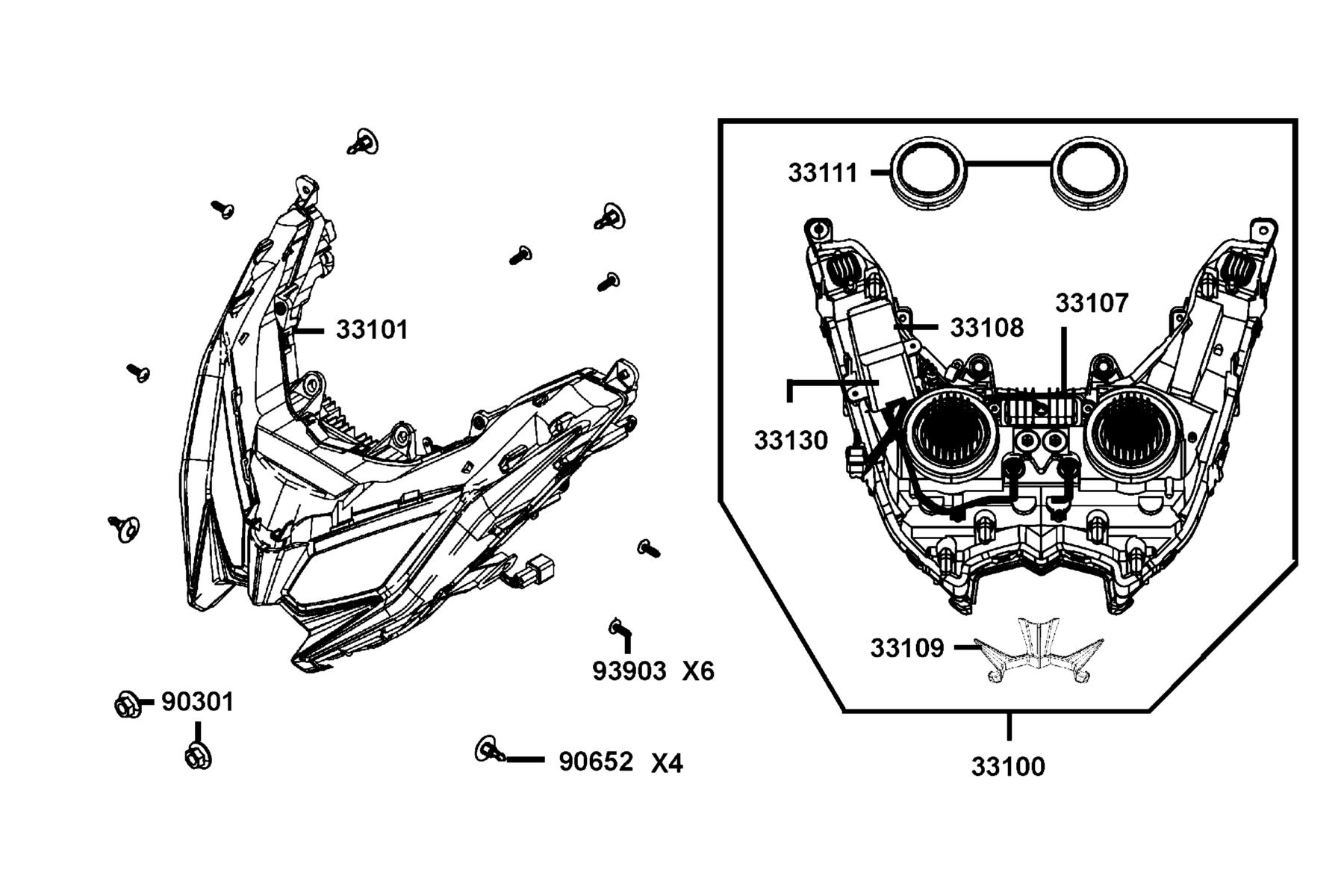

The Head Light diagram contains 11 genuine OEM parts for the KYMCO AK550(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33100-LGC6-306 | COMB HEAD LIGHT | 1 | $668.64 USD | View product → | |
| 2 | 33100-LGC6-E01-T01 | LIGHT ASSY.HEAD | 1 | $822.80 USD | View product → | |
| 3 | 33101-LGC6-305 | COMB HEAD LIGHT | 1 | $1271.16 USD | View product → | |
| 4 | 33107-LGC6-E00 | DRIVE PCB ASSY POSITION LIGHT | 1 | $43.44 USD | View product → | |
| 5 | 33108-LGC6-E00 | DRIVE PCB ASSY HEAD LIGHT | 1 | $391.89 USD | View product → | |
| 6 | 33109-LGC6-E00-T01 | RUBBER | 1 | $228.09 USD | View product → | |
| 7 | 33111-LGC6-E00 | COVER RUBBER | 2 | $54.66 USD | View product → | |
| 8 | 33130-LGC6-E00 | SOCKET COMP HEAD LIGHT | 1 | $74.49 USD | View product → | |
| 9 | 90301-6D34-671 | NUT FLANGE 6MM | 2 | $3.00 USD | View product → | |
| 10 | 90652-LCA4-E00 | CLIP MUDGUARD | 4 | $4.92 USD | View product → | |
| 11 | 93903-35260 | SCREW TAPPING 5*12 | 4 | $4.92 USD | View product → |
