F15 — Fr Body Frame●Stand

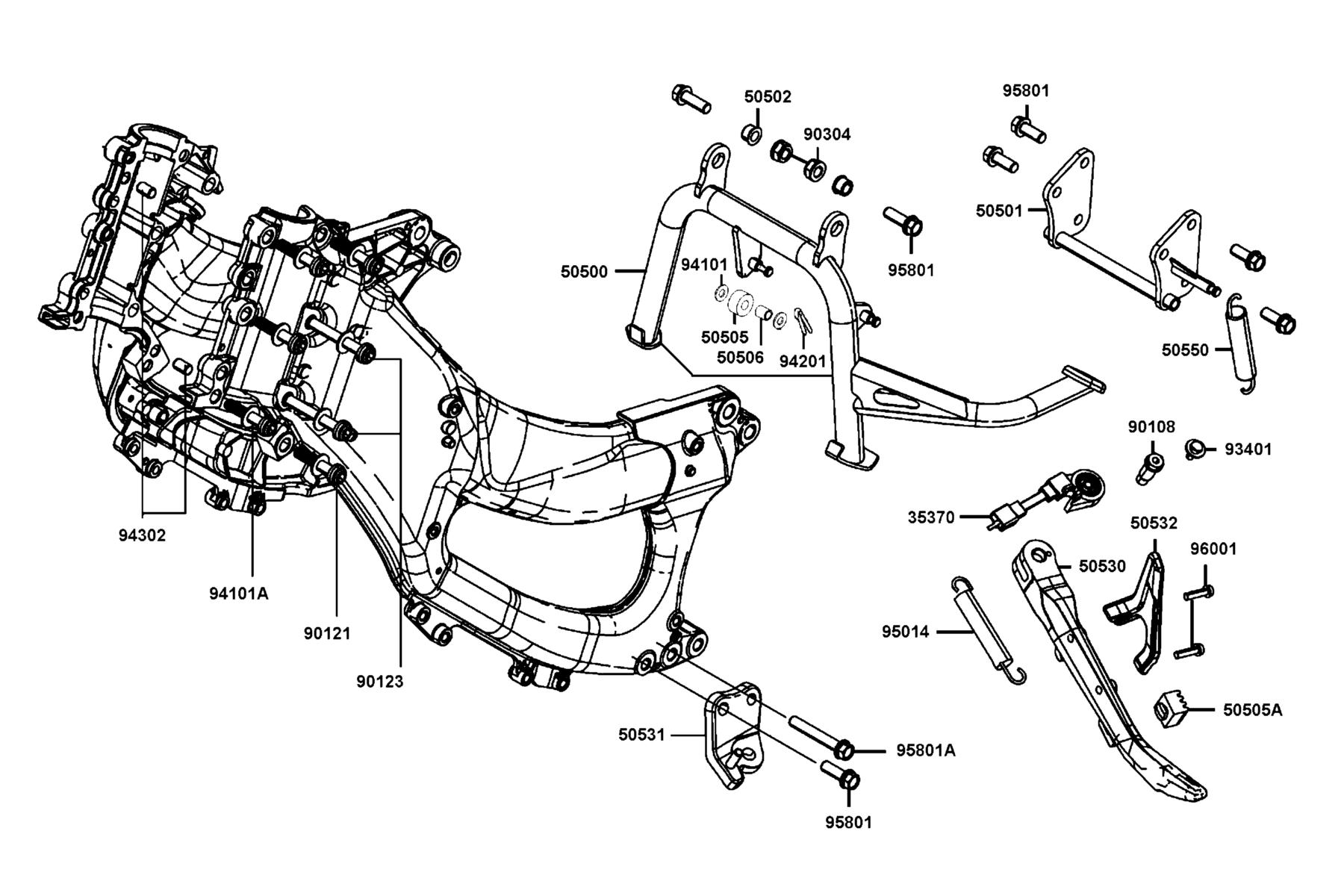

The Fr Body Frame●Stand diagram contains 24 genuine OEM parts for the KYMCO AK550(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 35370-ZZA6-E00 | SW UNIT SIDE STAND | 1 | $76.44 USD | View product → | |
| 2 | 50500-AKB8-E00 | STAND COMP MAIN | 1 | $170.37 USD | View product → | |
| 3 | 50501-LGC6-E00 | BRKT MAIN STAND | 1 | $61.14 USD | View product → | |
| 4 | 50502-GFY6-901 | COLLAR MAIN STAND | 2 | $5.67 USD | View product → | |
| 5 | 50505-LEA7-E00 | STOPPER RUBBER | 1 | $16.68 USD | View product → | |
| 6 | 50505-LKB9-900 | RUBBER SIDE STAND | 1 | $2.76 USD | View product → | |
| 7 | 50506-KHE7-E00 | COLLAR STOPPER RUBBER | 1 | $9.78 USD | View product → | |
| 8 | 50530-LGC6-E00 | STAND BAR SIDE | 1 | $50.97 USD | View product → | |
| 9 | 50531-LGC6-E00 | BRKT.SIDE STAND | 1 | $55.65 USD | View product → | |
| 10 | 50532-LGC6-E00 | KICK BAR SIDE STAND | 1 | $124.41 USD | View product → | |
| 11 | 50550-KKC2-E00 | SPG ASSY MAIN STAND | 1 | $27.42 USD | View product → | |
| 12 | 90108-LGC6-E00 | SCREW???SIDE STAND PINOT | 1 | $8.43 USD | View product → | |
| 13 | 90121-LGC6-E00 | BOLT FLANGE 10X50 | 2 | $11.19 USD | View product → | |
| 14 | 90123-LGC6-E00 | BOLT FLANGE 10X95 | 2 | $20.43 USD | View product → | |
| 15 | 90304-LEA1-900 | NUT U FLANGE 10MM | 2 | $11.31 USD | View product → | |
| 16 | 93401-06020-07 | BOLT WASHER 6*20 | 1 | $7.17 USD | View product → | |
| 17 | 94101-08600 | WASH PLAIN 8MM | 2 | $2.25 USD | View product → | |
| 18 | 94101-10000 | WASHER PLAIN 10MM | 7 | $1.95 USD | View product → | |
| 19 | 94201-20180 | 0 | 1 | $4.92 USD | View product → | |
| 20 | 94302-10160 | LOCK PIN | 2 | $4.77 USD | View product → | |
| 21 | 95014-72204 | SPG B1 SIDE STAND | 1 | $6.54 USD | View product → | |
| 22 | 95801-10030-06 | BOLT FLANGE 10X30 | 3 | $16.68 USD | View product → | |
| 23 | 95801-10065-06 | BOLT FLANGE 10*65 | 1 | $7.02 USD | View product → | |
| 24 | 96001-06022-06 | BOLT FLANGE SH 6X22 | 2 | $4.26 USD | View product → |
