F10 — Fuel Tank

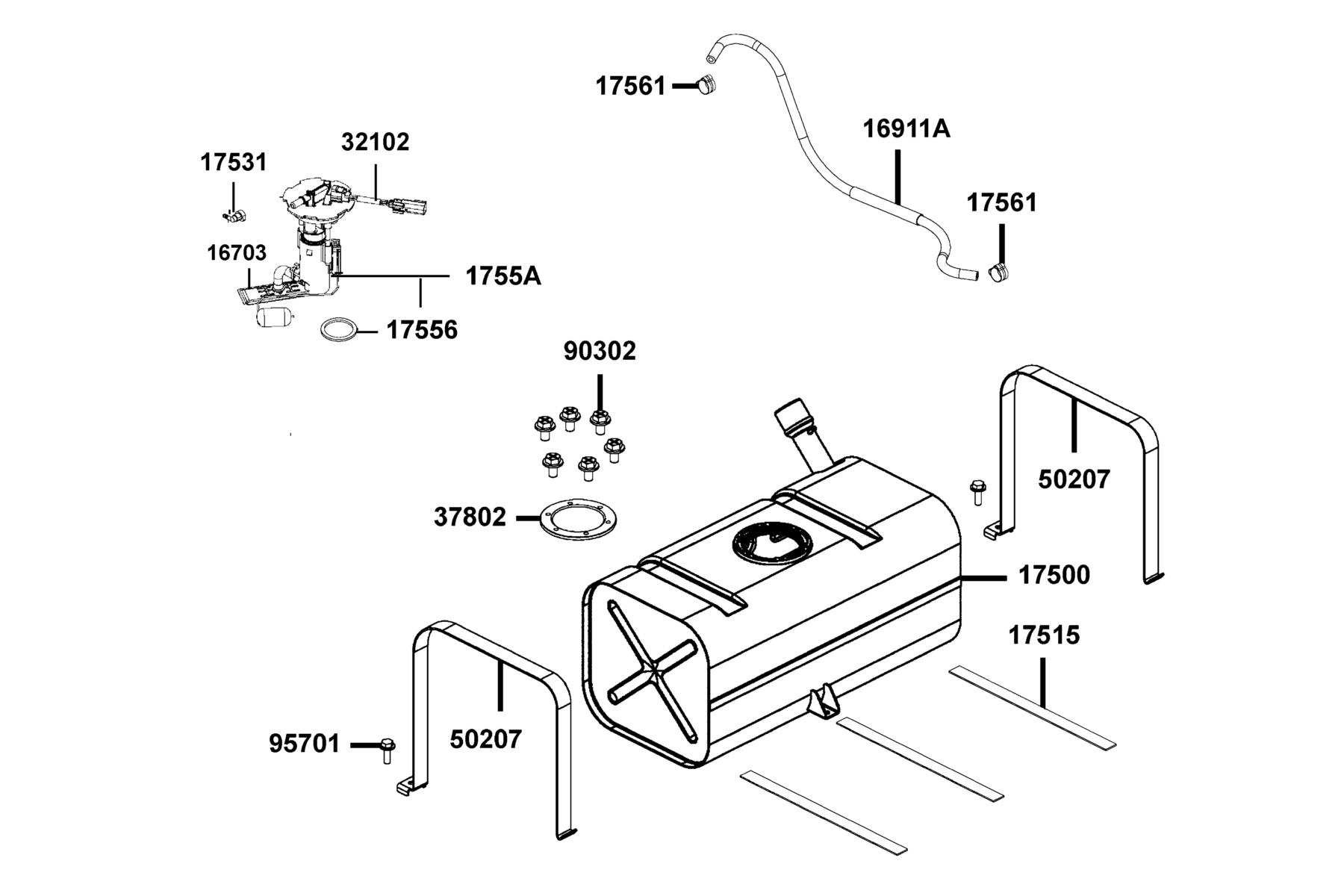

The Fuel Tank diagram contains 13 genuine OEM parts for the KYMCO UXV 700i (MY2024). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 16703-AKB9-M00 | FUEL FILTER ASSY | 1 | $50.58 USD | View product → | |
| 2 | 16911-LKM8-800 | HOSE ASSY FUEL | 1 | $113.25 USD | View product → | |
| 3 | 17500-ACB2-M00-M2S | TANK FUEL | 1 | $332.64 USD | View product → | |
| 4 | 17515-LEE8-E00 | SPONGE FUEL TANK | 3 | $27.39 USD | View product → | |
| 5 | 17531-LGC7-E01 | CONNECTOR FUEL PUMP-90 DEGREE | 1 | $52.50 USD | View product → | |
| 6 | 17556-ZXA6-M01 | PACKING PUMP | 1 | $54.66 USD | View product → | |
| 7 | 1755A-AKB9-M00 | FUEL PUMP ASSEMBLY | 1 | $600.50 USD | View product → | |
| 8 | 17561-LKB9-900 | CLIP 12.5 | 2 | $8.10 USD | View product → | |
| 9 | 32102-ZXA6-M01 | SUB HARNESS FUEL PUMP | 1 | — | Part details → | |
| 10 | 37802-LGC3-E00 | MOUNT FUEL PUMP | 1 | $25.65 USD | View product → | |
| 11 | 50207-LEE8-E00 | STAY FUEL TANK | 2 | $79.41 USD | View product → | |
| 12 | 90302-LBF2-900 | BOLT-WASH M5X10 | 6 | $5.67 USD | View product → | |
| 13 | 95701-08020-06 | BOLT FLANGE 8*20 | 2 | $3.78 USD | View product → |
