F16 — Rear Control Arm

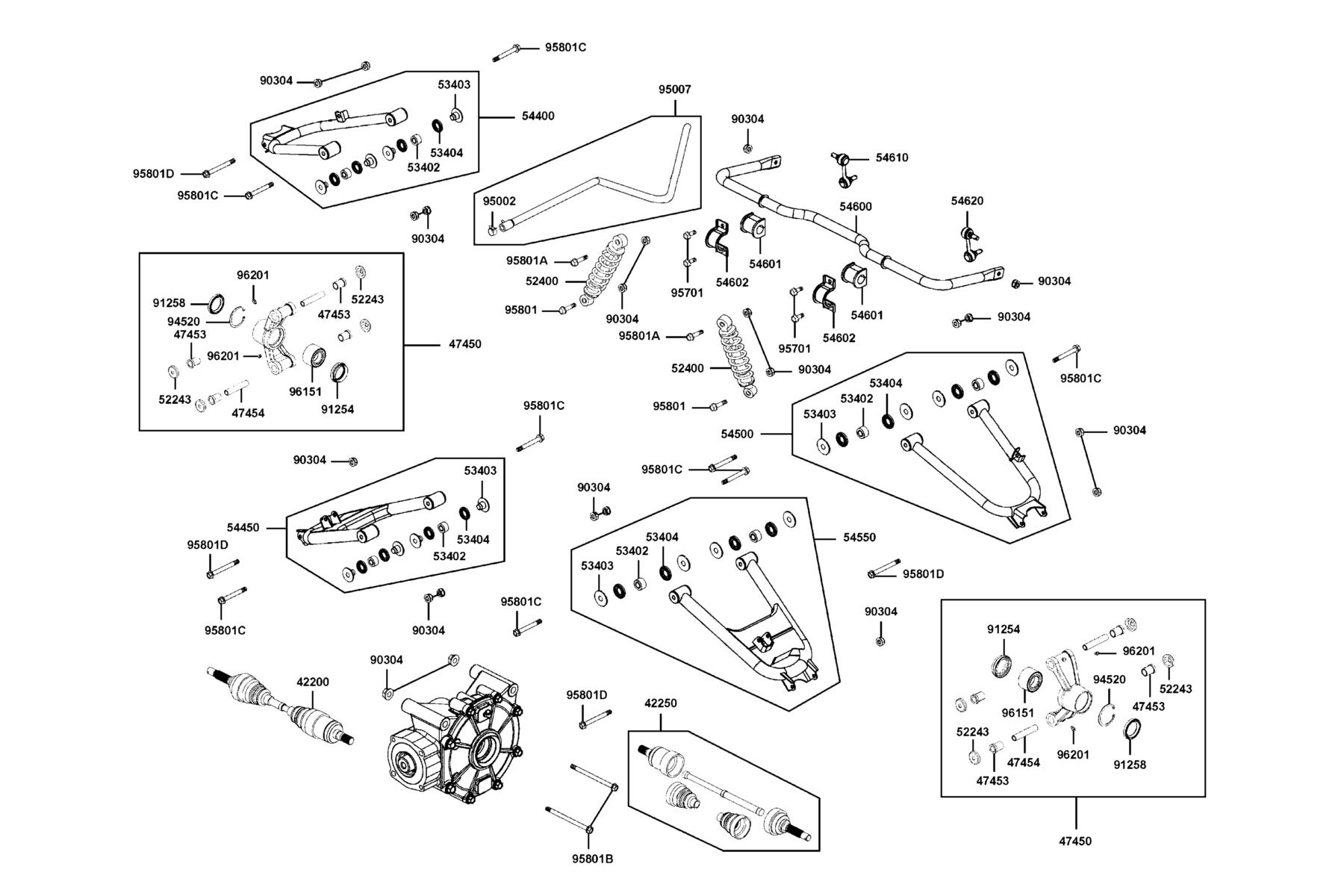

The Rear Control Arm diagram contains 32 genuine OEM parts for the KYMCO UXV 700i (MY2024). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42200-LKM8-900 | HALF SHAFT REAR-RH | 1 | $510.40 USD | View product → | |
| 2 | 42250-LKM8-900 | HALF SHAFT REAR-LH | 1 | $507.46 USD | View product → | |
| 3 | 47450-LEE8-900 | KNUCKLE ASSY | 2 | $389.43 USD | View product → | |
| 4 | 47453-LEE8-E00 | BUSH RR KNUCKLE | 4 | $37.41 USD | View product → | |
| 5 | 47454-LEE8-E00 | COLLAR RR KNUCKLE | 2 | $56.67 USD | View product → | |
| 6 | 52243-KEC8-900 | DUST SEAL RR CUSH ARM A | 4 | $12.09 USD | View product → | |
| 7 | 52400-ADG8-E00-N1S | CUSHION ASSY???ARR | 2 | $663.14 USD | View product → | |
| 8 | 53402-LEE8-E00 | BEARING SPHERICAL PLAIN | 8 | $65.37 USD | View product → | |
| 9 | 53403-LEE8-E00 | COLLAR SWING ARM | 16 | $22.62 USD | View product → | |
| 10 | 53404-LEE8-E00 | DUST SEAL 16*30*4.5 | 16 | $23.49 USD | View product → | |
| 11 | 54400-LKM8-900 | ARM ASSY RR R SWING UP | 1 | $159.00 USD | View product → | |
| 12 | 54450-LKM8-900 | ARM ASSY RR R SWING LOW | 1 | $237.54 USD | View product → | |
| 13 | 54500-LKM8-900 | ARM ASSY RR L SWING UP | 1 | $159.00 USD | View product → | |
| 14 | 54550-LKM8-900 | ARM ASSY RR L SWING LOW | 1 | $226.32 USD | View product → | |
| 15 | 54600-LEE8-900 | BAR STABILIZER | 1 | $167.76 USD | View product → | |
| 16 | 54601-LEE8-E00 | BUSH STABILIZER | 2 | $15.63 USD | View product → | |
| 17 | 54602-LEE8-E00 | COVER STABILIZER | 2 | $19.92 USD | View product → | |
| 18 | 54610-LEE8-E00 | JOINT STABILIZER R | 1 | $150.84 USD | View product → | |
| 19 | 54620-LEE8-E00 | JOINT STABILIZER L | 1 | $150.84 USD | View product → | |
| 20 | 90304-GLW0-90A | NUT U FLANGE 10MM | 22 | $9.39 USD | View product → | |
| 21 | 91258-LDB5-E00 | SEAL DUST HUB 38*55*7 | 1 | $18.72 USD | View product → | |
| 22 | 94520-55000 | CIR CLIP IN 55 | 2 | $13.95 USD | View product → | |
| 23 | 95002-41150-00 | CLIP D11.5 TUBE | 1 | $12.78 USD | View product → | |
| 24 | 95007-LEE8-E00 | HOSE VENT GEARCASE | 1 | $40.11 USD | View product → | |
| 25 | 95701-10020-06 | BOLT FLANGE 10*20 | 4 | $6.24 USD | View product → | |
| 26 | 95801-10050-06 | BOLT FLANGE 10*50 | 2 | $9.39 USD | View product → | |
| 27 | 95801-10060-06 | BOLT FLANGE 10*60 | 2 | $15.45 USD | View product → | |
| 28 | 95801-10130-06 | BOLT FLANGE 10*130 | 2 | $24.66 USD | View product → | |
| 29 | 95801-LCA5-900 | BOLT FLANGE 10*70 | 8 | $11.70 USD | View product → | |
| 30 | 95801-LEE8-E00 | BOLT FLANGE 10*100 | 4 | $34.32 USD | View product → | |
| 31 | 96151-PWB1-900 | BEARING WHEEL | 2 | $160.56 USD | View product → | |
| 32 | 96201-10000 | NIPPLE GREASE | 2 | $21.93 USD | View product → |
