F16 — Rear Cushion

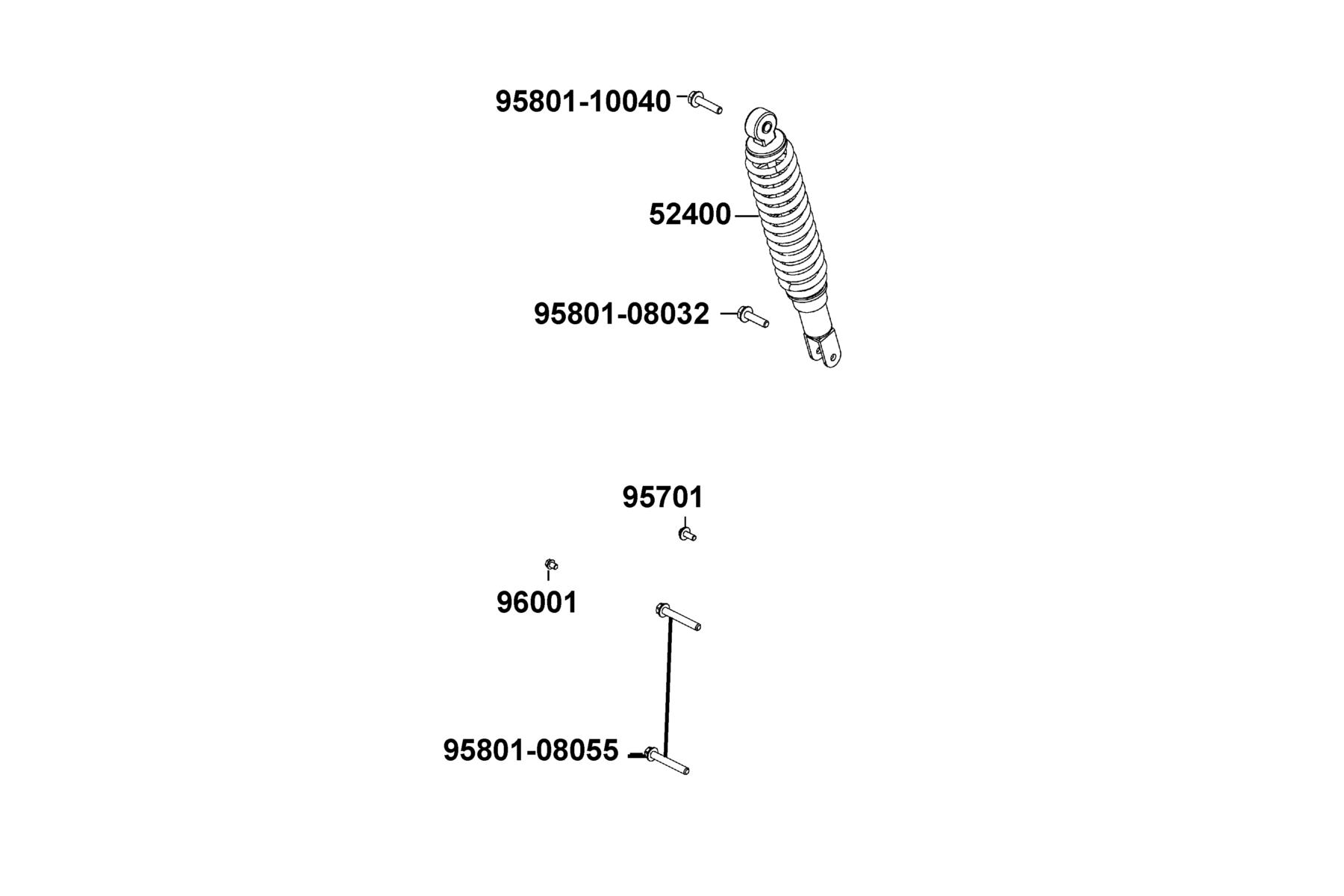

The Rear Cushion diagram contains 6 genuine OEM parts for the KYMCO LIKE(2)50(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 52400-ACB9-E10 | CUSHION ASSY REAR | 1 | $183.63 USD | View product → | |
| 2 | 95701-06016-07G | BOLT FLANGE SH 6*16 (KG) | 1 | $0.99 USD | View product → | |
| 3 | 95801-08032-07G | BOLT FLANGE 8*32(K) | 2 | $3.27 USD | View product → | |
| 4 | 95801-08055-07G | BOLT FLANGE 8*55 | 2 | $3.93 USD | View product → | |
| 5 | 95801-10040-08G | BOLT FLANGE 10*40 | 2 | $6.24 USD | View product → | |
| 6 | 96001-06012-07G | BOLT FLANGE 6*12(G) | 1 | $0.99 USD | View product → |
