F17 — Front Winker

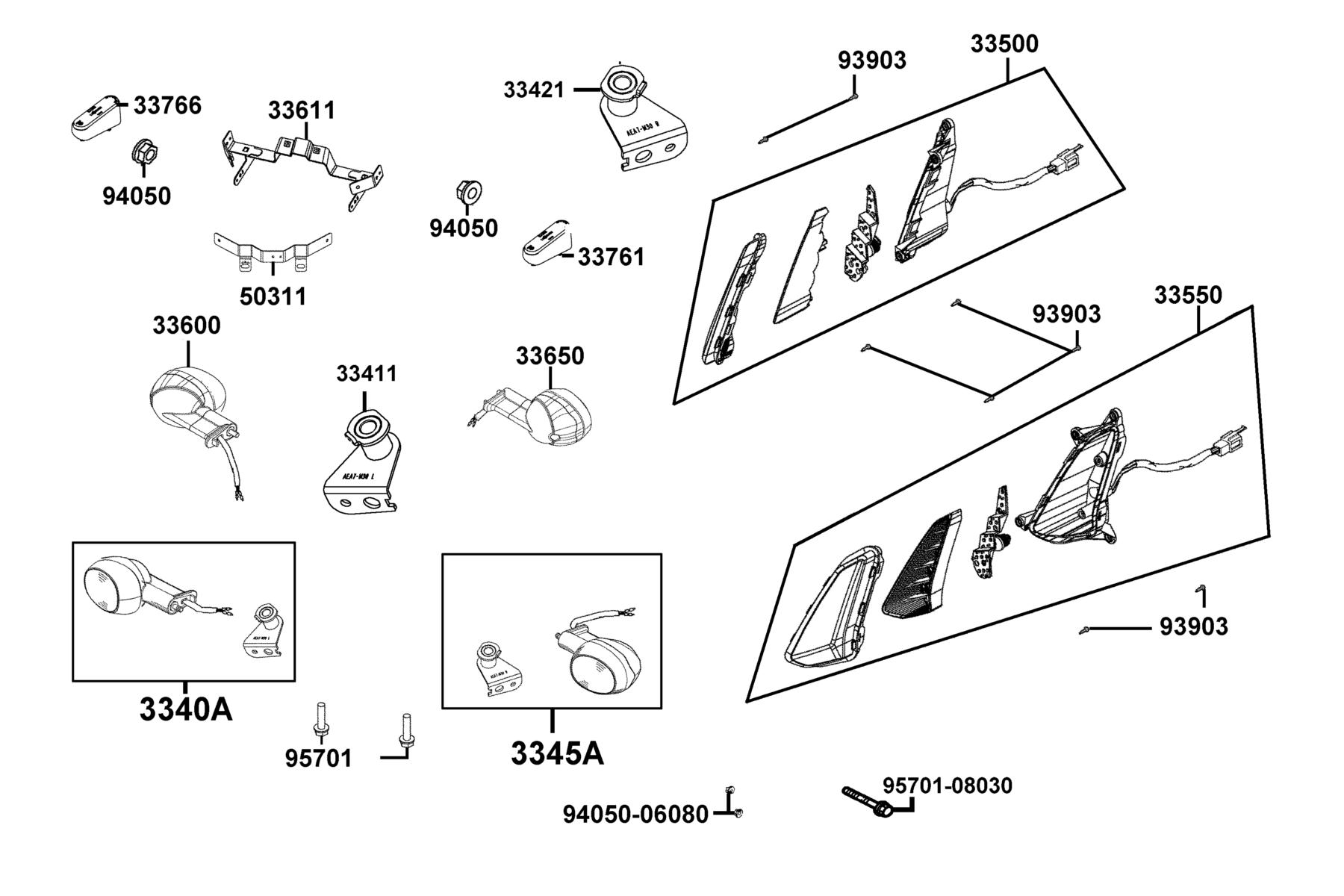

The Front Winker diagram contains 17 genuine OEM parts for the KYMCO LIKE(2)50(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 3340A-AEA7-M30 | WINKER ASSY RH FR | 1 | $109.86 USD | View product → | |
| 2 | 33411-AEA7-M30 | STAY R FR WINKER | 1 | $300.42 USD | View product → | |
| 3 | 33421-AEA7-M30 | STAY L FR WINKER | 1 | $69.30 USD | View product → | |
| 4 | 3345A-AEA7-M30 | WINKER ASSY LH FR | 1 | $64.59 USD | View product → | |
| 5 | 33500-AEA7-M30 | WINKER ASSY R FR | 1 | $191.73 USD | View product → | |
| 6 | 33550-AEA7-M30 | WINKER ASSY L FR | 1 | $191.73 USD | View product → | |
| 7 | 33600-AEA7-M30 | WINKER ASSY RH RR | 1 | $109.32 USD | View product → | |
| 8 | 33611-AEA7-M30 | "STAY COMP., RR WINKER" | 1 | $55.08 USD | View product → | |
| 9 | 33650-AEA7-M30 | WINKER ASSY LH RR | 1 | $109.32 USD | View product → | |
| 10 | 33761-AEA7-M30 | "REFLEX,REFLECTOR R SIDE(RED)" | 1 | $39.06 USD | View product → | |
| 11 | 33766-AEA7-M30 | "REFLEX,REFLECTOR L SIDE(RED)" | 1 | $36.51 USD | View product → | |
| 12 | 50311-AEA7-M30 | "STAY, RR REFLECTOR" | 1 | $25.26 USD | View product → | |
| 13 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 7 | $2.73 USD | View product → | |
| 14 | 94050-05080-G | NUT FLANGE 5MM | 2 | $0.99 USD | View product → | |
| 15 | 94050-06080-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → | |
| 16 | 95701-06012-07G | BOLT FLANGE 6*12 (K) | 2 | $0.99 USD | View product → | |
| 17 | 95701-08030-08G | BOLT FLANGE SMALL | 2 | $3.27 USD | View product → |
