F13 — Air Cleaner

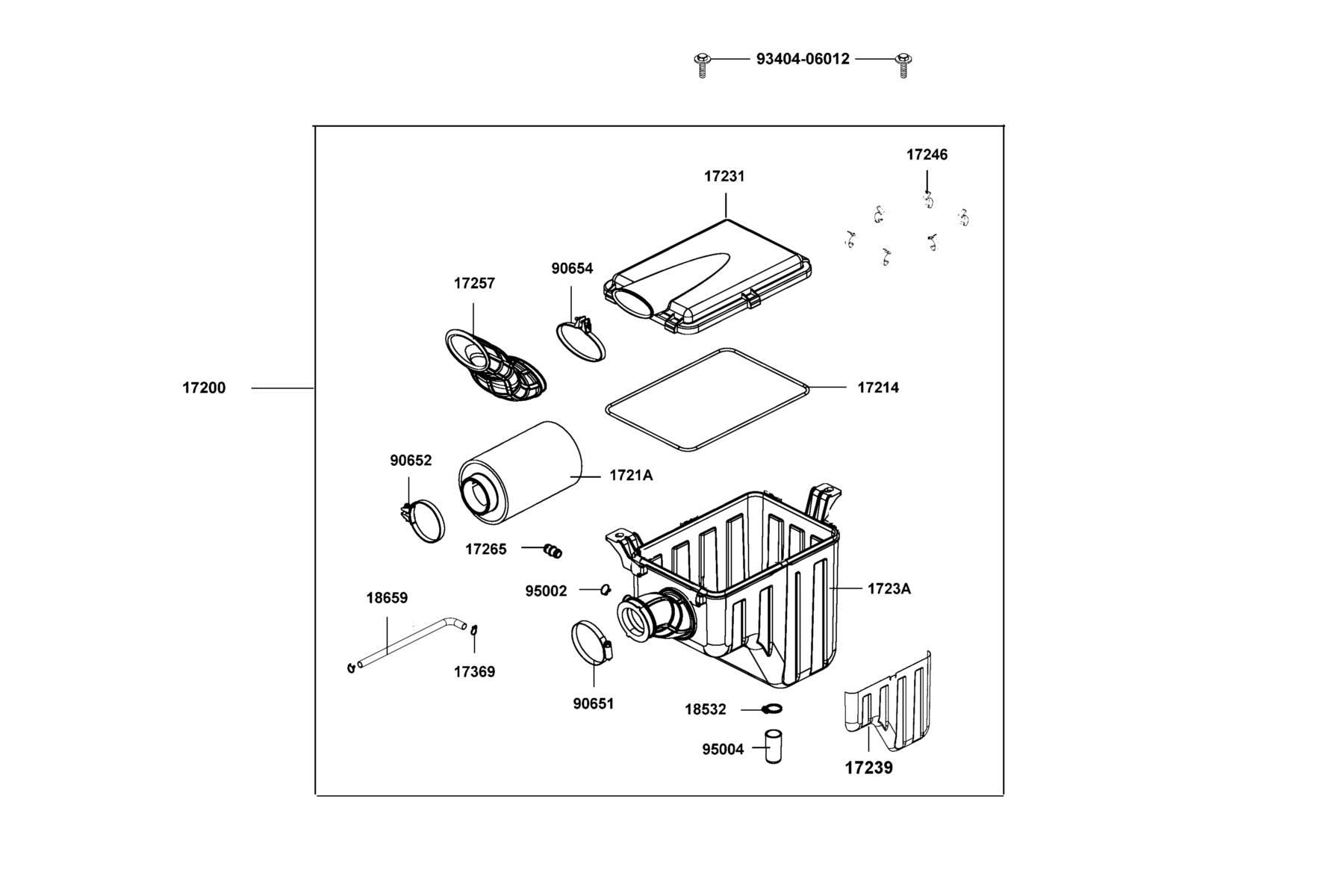

The Air Cleaner diagram contains 18 genuine OEM parts for the KYMCO MXU 550(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17200-AGA7-E00 | AIR/C ASSY | 1 | $370.89 USD | View product → | |
| 2 | 17214-LDB5-E00 | SEAL AIR/C CASE | 1 | $27.12 USD | View product → | |
| 3 | 1721A-LDB5-E00 | ELEMENT COMP AIR/C | 1 | $114.63 USD | View product → | |
| 4 | 17231-LDB5-E00 | COVER??? AIR/C | 1 | $52.50 USD | View product → | |
| 5 | 17239-AGA8-E00 | SHIELD AIR/C | 1 | $33.69 USD | View product → | |
| 6 | 1723A-ALC1-E00 | CASE ASSY AIR/C | 1 | $181.77 USD | View product → | |
| 7 | 17246-LBA7-900 | CLAMP AIR/C | 6 | $16.14 USD | View product → | |
| 8 | 17257-ALC1-E00 | DUCT AIR/C CHAMBER | 1 | $87.00 USD | View product → | |
| 9 | 17265-LBA7-900 | JOINT BLOW BY | 1 | $9.39 USD | View product → | |
| 10 | 17369-KHC4-900 | CLIP BREATHER TUBE | 2 | $4.53 USD | View product → | |
| 11 | 18532-6D34-671 | CLIP AIR HOSE 21.5 | 1 | $4.53 USD | View product → | |
| 12 | 18659-ALC1-E00 | TUBE BREATHER | 1 | $46.68 USD | View product → | |
| 13 | 90651-LFE9-E00 | BAND 66 | 1 | $43.50 USD | View product → | |
| 14 | 90652-LLJ3-E00 | BAND CONNECTING TUBE | 1 | $19.65 USD | View product → | |
| 15 | 90654-LDB5-E00 | CLAMP ELLIPSE | 1 | $23.40 USD | View product → | |
| 16 | 93404-06012-06 | BOLT WASHER 6X12 | 2 | $2.61 USD | View product → | |
| 17 | 95002-02150 | CLIP B14.5 TUBE | 1 | $4.92 USD | View product → | |
| 18 | 95004-LBA7-900 | TUBE DRAIN | 1 | $16.41 USD | View product → |
