F22 — Radiator

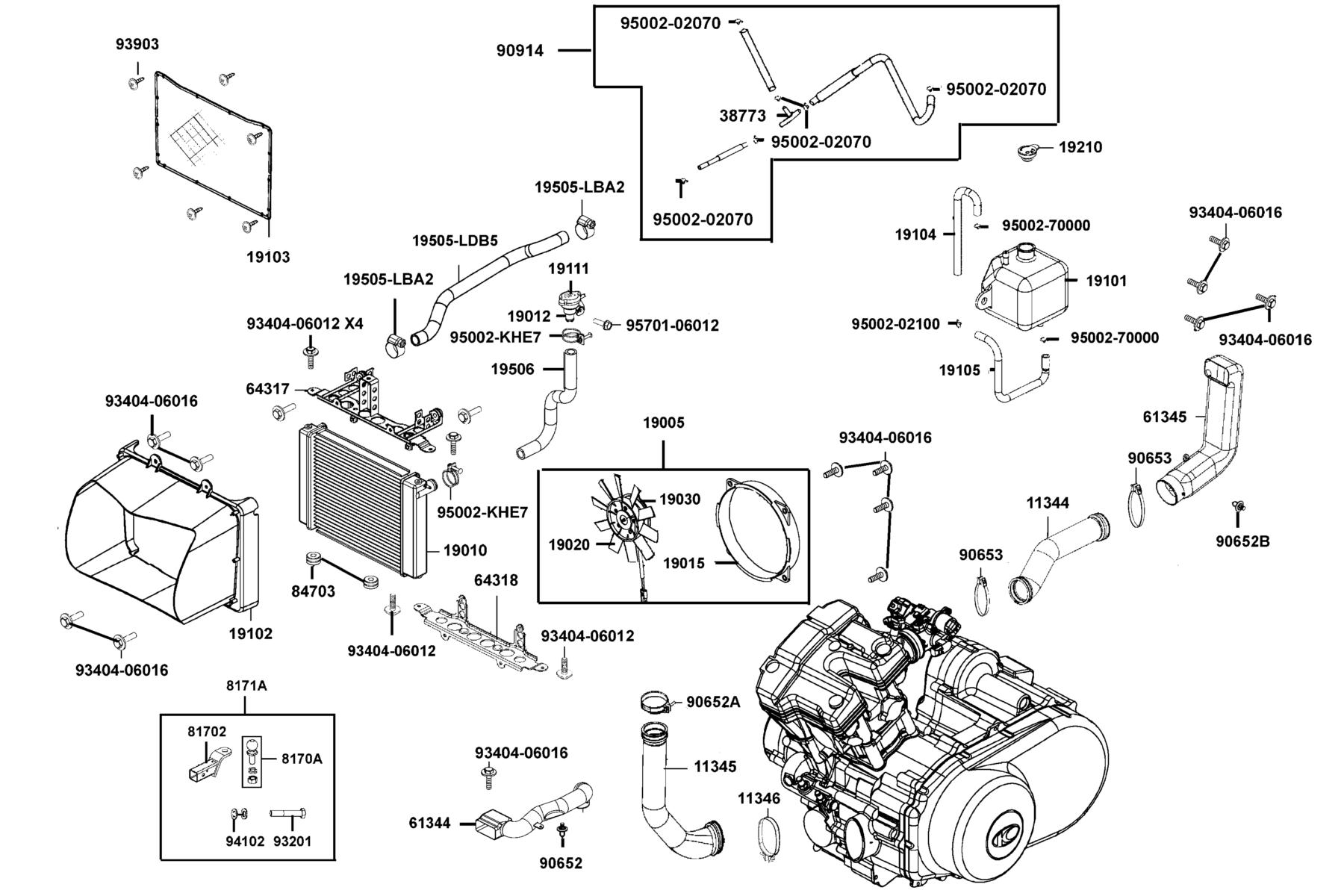

The Radiator diagram contains 43 genuine OEM parts for the KYMCO MXU 550(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11344-AGA7-E00 | DUCT B L CASE | 1 | $133.26 USD | View product → | |
| 2 | 11345-AGA7-E00 | DUCT A L CASE | 1 | $154.56 USD | View product → | |
| 3 | 11346-LDB5-E00 | BAND 56X96 FRONT CVT TUBE | 1 | $19.35 USD | View product → | |
| 4 | 19005-LDB5-E00 | SHROUD ASSY | 1 | $287.13 USD | View product → | |
| 5 | 19010-PRB2-900 | RADIATOR COMP. | 1 | $331.83 USD | View product → | |
| 6 | 19012-KHD8-900 | UNIT RADIATOR | 1 | $54.18 USD | View product → | |
| 7 | 19015-LBA2-E00 | SHROUD COMP | 1 | $85.89 USD | View product → | |
| 8 | 19020-LBA2-E00 | FAN COOLING | 1 | $59.70 USD | View product → | |
| 9 | 19030-LDB5-E00 | MOTOR ASSY FAN | 1 | $391.89 USD | View product → | |
| 10 | 19101-LFE9-E00 | TANK RESERVE | 1 | $56.67 USD | View product → | |
| 11 | 19102-ALC1-E00-N1R | DUCT COOLING AIR (Black) | 1 | $41.61 USD | View product → | |
| 12 | 19103-ALC1-E00 | GRID RADIATOR | 1 | $97.50 USD | View product → | |
| 13 | 19104-LDB5-E00 | HOSE ASSY DRAIN | 1 | $16.14 USD | View product → | |
| 14 | 19105-AGA8-E00 | HOSE ASSY.RESERVE TANK-PRESSURE VALVE | 1 | $18.57 USD | View product → | |
| 15 | 19111-GBE2-004 | CAP COMP | 1 | $47.31 USD | View product → | |
| 16 | 19210-KKC4-900 | CAP RESERVE TANK | 1 | $9.39 USD | View product → | |
| 17 | 19505-LBA2-E00 | CLAMP WATER HOSE | 2 | $15.06 USD | View product → | |
| 18 | 19505-LDB5-E00 | HOSE WATER F ENG-RADIATOR | 1 | $81.84 USD | View product → | |
| 19 | 19506-AGA7-E00 | WATER HOSE. RADIATOR-PRESSURE VALVE | 1 | $42.96 USD | View product → | |
| 20 | 38773-PB9-0000 | JOINT ASSY TANK CAP | 1 | $5.67 USD | View product → | |
| 21 | 61344-AGA8-E00 | CHAMBER L. COVER DUCT A | 1 | $39.09 USD | View product → | |
| 22 | 61345-AGA8-E00-N1R | CHAMBER L COVER DUCT B (Black) | 1 | $45.57 USD | View product → | |
| 23 | 64317-AGA7-E00 | BRKT RADIATOR UPPER | 1 | $97.11 USD | View product → | |
| 24 | 64318-LDB5-E00 | STAY RADIATOR LOWER | 1 | $44.49 USD | View product → | |
| 25 | 81702-ZXA6-E03 | HITCH | 1 | $158.37 USD | View product → | |
| 26 | 8170A-ZXA6-E02 | HITCH BALL ASSY | 1 | $152.16 USD | View product → | |
| 27 | 8171A-ZXA6-E03 | HITCH ASSY. | 1 | $293.70 USD | View product → | |
| 28 | 84703-LLB1-900 | RUBBER TAIL LIGHT | 2 | $3.96 USD | View product → | |
| 29 | 90652-LDB5-900 | CLIP MUDGUARD | 1 | $5.31 USD | View product → | |
| 30 | 90652-LDB5-E00 | BAND 67 FRONT CVT DUCT | 1 | $14.04 USD | View product → | |
| 31 | 90652-LFB5-900 | CLIP MUDGUARD | 1 | $7.17 USD | View product → | |
| 32 | 90653-LDB5-E00 | BAND 81 REAR CVT DUCT | 2 | $16.14 USD | View product → | |
| 33 | 90914-AGA7-E00 | TUBE ASSY WATER | 1 | $46.59 USD | View product → | |
| 34 | 93201-16090-0G | HEX BOLT 19*90 | 1 | $17.07 USD | View product → | |
| 35 | 93404-06012-06 | BOLT WASHER 6X12 | 6 | $2.61 USD | View product → | |
| 36 | 93404-06016-06 | BOLT WASHER 6*16 | 13 | $7.89 USD | View product → | |
| 37 | 93903-KEB7-900 | SCREW WASHER 4*12 | 6 | $12.12 USD | View product → | |
| 38 | 94102-16000 | WASHER PLAIN 16MM | 2 | $2.04 USD | View product → | |
| 39 | 95002-02070 | CLIP B7 TUBE | 5 | $1.86 USD | View product → | |
| 40 | 95002-02100 | CLIP B15 TUBE | 1 | $4.92 USD | View product → | |
| 41 | 95002-70000 | CLIP C11 TUBE | 2 | $4.92 USD | View product → | |
| 42 | 95002-KHE7-900 | CLIP WATER HOSE | 2 | $9.39 USD | View product → | |
| 43 | 95701-06012-06 | BOLT FLANGE 6X12 | 1 | $1.86 USD | View product → |
