E06 — Driven Pulley

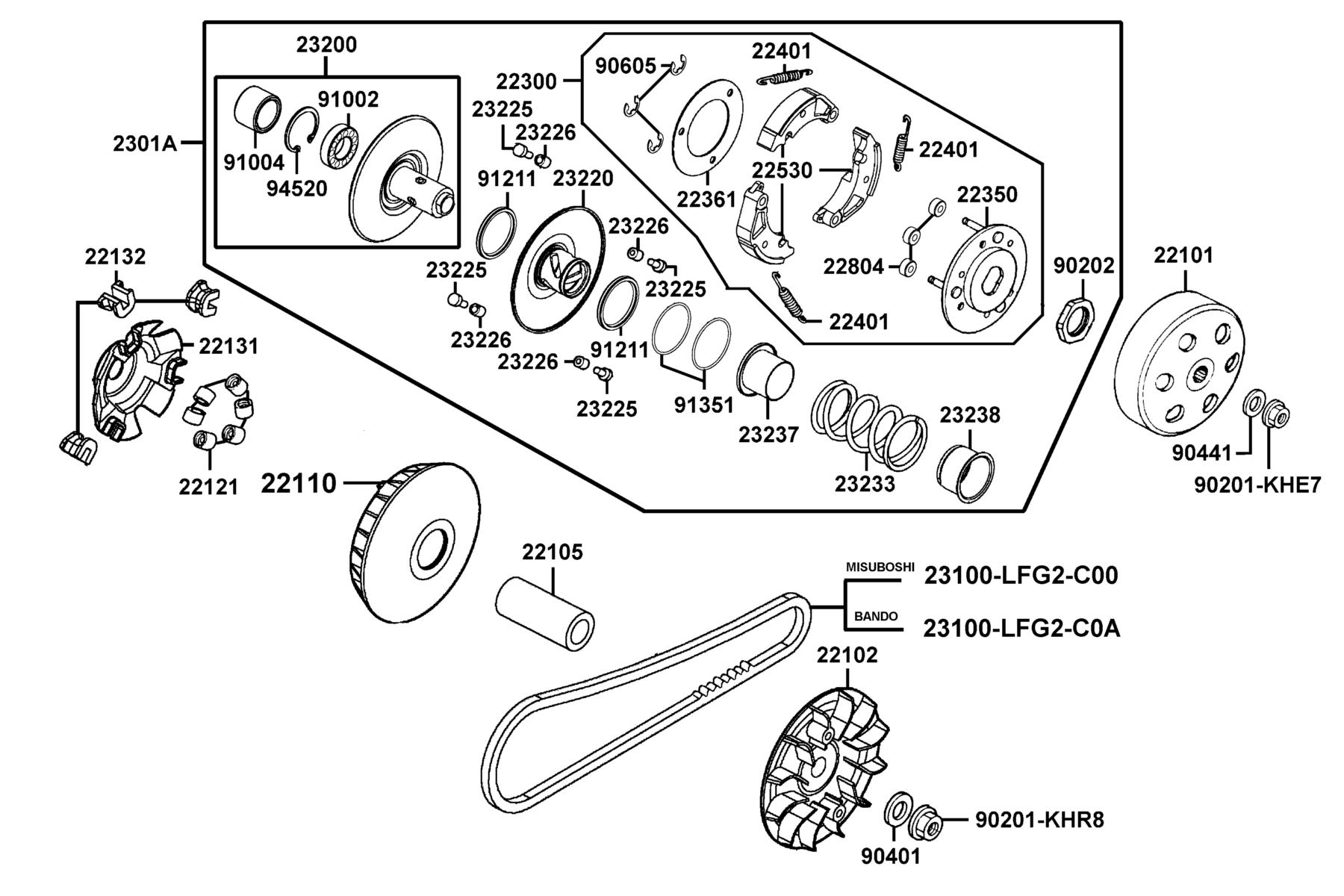

The Driven Pulley diagram contains 34 genuine OEM parts for the KYMCO X-TOWN 300（2018）. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 22101-LBA7-C00 | OUTER CLUTCH | 1 | $117.42 USD | View product → | |
| 2 | 22102-KHE7-C00 | FACE DRIVE | 1 | $59.40 USD | View product → | |
| 3 | 22105-LBA7-C00 | BOSS DRIVE FACE | 1 | $39.93 USD | View product → | |
| 4 | 22110-LFG1-C00 | FACE COMP MOVABLE DRIVE | 1 | $146.58 USD | View product → | |
| 5 | 22121-LFG2-305 | ROLLER SET WEIGHT (1SET:6PCS) | 1 | $110.01 USD | View product → | |
| 6 | 22131-LBA7-900 | PLATE RAMP | 1 | $44.70 USD | View product → | |
| 7 | 22132-KHE7-405 | PIECE SLIDE SET (1SET:3PCS) | 1 | $63.72 USD | View product → | |
| 8 | 22300-LFG2-E81 | PLATE ASSY DRIVE | 1 | $201.54 USD | View product → | |
| 9 | 22350-KHE7-900 | PLATE COMP DRIVE | 1 | $82.86 USD | View product → | |
| 10 | 22361-LEA7-E00 | PLATE CLUTCH SIDE | 1 | $38.52 USD | View product → | |
| 11 | 22401-LFG2-E80 | SPRING CLUTCH | 1 | $9.39 USD | View product → | |
| 12 | 22530-KHE7-910 | WEIGHT CLUTCH | 1 | $60.48 USD | View product → | |
| 13 | 22804-GGB2-001 | RUBBER CLUTCH DAMPER | 1 | $8.19 USD | View product → | |
| 14 | 2301A-LFG2-E81 | PULLEY SUB ASSY | 1 | $475.17 USD | View product → | |
| 15 | 23100-LFG2-C00 | BELT, DRIVE | 1 | $281.43 USD | View product → | |
| 16 | 23100-LFG2-C0A | BELT DRIVE | 1 | $281.43 USD | View product → | |
| 17 | 23200-KHE7-900 | FACE ASSY DRIVEN | 1 | $176.76 USD | View product → | |
| 18 | 23225-KHE7-900 | PIN ROLLER GUIDE | 1 | $6.78 USD | View product → | |
| 19 | 23226-GHC8-004 | ROLLER GUIDE | 1 | $4.92 USD | View product → | |
| 20 | 23233-KHE7-900 | SPG DRIVEN FACE | 1 | $61.59 USD | View product → | |
| 21 | 23237-KHE7-900 | COLLAR SEAL | 1 | $36.24 USD | View product → | |
| 22 | 23238-KHE7-900 | COLLAR SPG | 1 | $36.78 USD | View product → | |
| 23 | 90201-KHE7-C01 | NUT C FLANGE M12 | 1 | $13.62 USD | View product → | |
| 24 | 90201-KHR8-C01 | NUT FLANGE 14MM | 1 | $13.62 USD | View product → | |
| 25 | 90202-1G87-001 | NUT SPECIAL 28MM | 1 | $11.70 USD | View product → | |
| 26 | 90202-1G87-001(wrong) | NUT SPECIAL 28MM | 1 | $9.00 USD | View product → | |
| 27 | 90401-KKJ9-C00 | WASHER THRUST 14*28*2 | 1 | $11.19 USD | View product → | |
| 28 | 90441-GFY6-C01 | WASHER 12.2*29*2.5 | 1 | $4.65 USD | View product → | |
| 29 | 90605-1F66-721 | CIR CLIP 7MM | 1 | $4.92 USD | View product → | |
| 30 | 91002-GGA7-70A | BRG BALL RADIAL 6902U | 1 | $51.27 USD | View product → | |
| 31 | 91004-KHE7-900 | BRG NDL 22X29X18 | 1 | $97.77 USD | View product → | |
| 32 | 91211-KHE7-900 | SEAL DRIVEN FACE | 1 | $37.65 USD | View product → | |
| 33 | 91351-KHE7-900 | O-RING PINION CAP | 1 | $15.06 USD | View product → | |
| 34 | 94520-28000 | CIR CLIP IN 28 | 1 | $4.92 USD | View product → |
