F16 — Rear Cushion

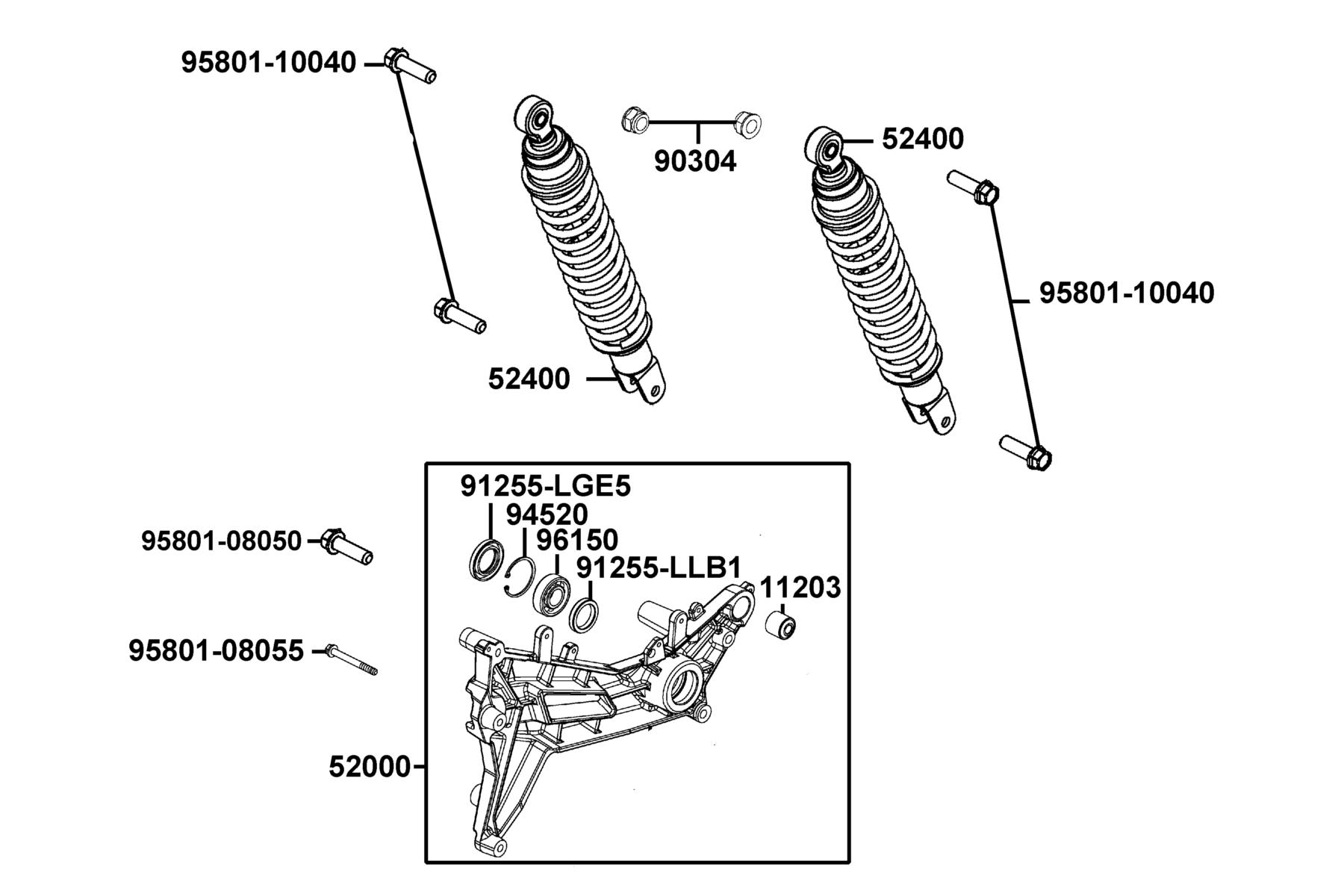

The Rear Cushion diagram contains 11 genuine OEM parts for the KYMCO X-TOWN 300（2018）. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11203-LBA2-C00 | RUB BUSH L CASE | 1 | $17.97 USD | View product → | |
| 2 | 52000-ABD2-C00 | FORK ASSY, RR | 1 | $259.80 USD | View product → | |
| 3 | 52400-ABD2-E00-NES | CUSHION ASSY REAR | 2 | $284.70 USD | View product → | |
| 4 | 90304-GHE8-C01 | NUT U 10MM(C) | 2 | $21.45 USD | View product → | |
| 5 | 91255-LGE5-C00 | OIL SEAL 30*48*7 | 1 | $9.84 USD | View product → | |
| 6 | 91255-LLB1-C00 | OIL SEAL 30*40*7 | 1 | $9.84 USD | View product → | |
| 7 | 94520-47000 | CIR CLIP IN 47 | 1 | $11.31 USD | View product → | |
| 8 | 95801-08050-07G | BOLT FLANGE 8*50(G) | 1 | $9.18 USD | View product → | |
| 9 | 95801-08055-07G | BOLT FLANGE 8*55 | 1 | $3.93 USD | View product → | |
| 10 | 95801-10040-07G | BOLT FLANGE 10*40 | 4 | $5.88 USD | View product → | |
| 11 | 96150-62040-10 | BEARING BALL RADIAL 6204 | 1 | $54.18 USD | View product → |
