F03 — Handle Steering ● Handle Cover

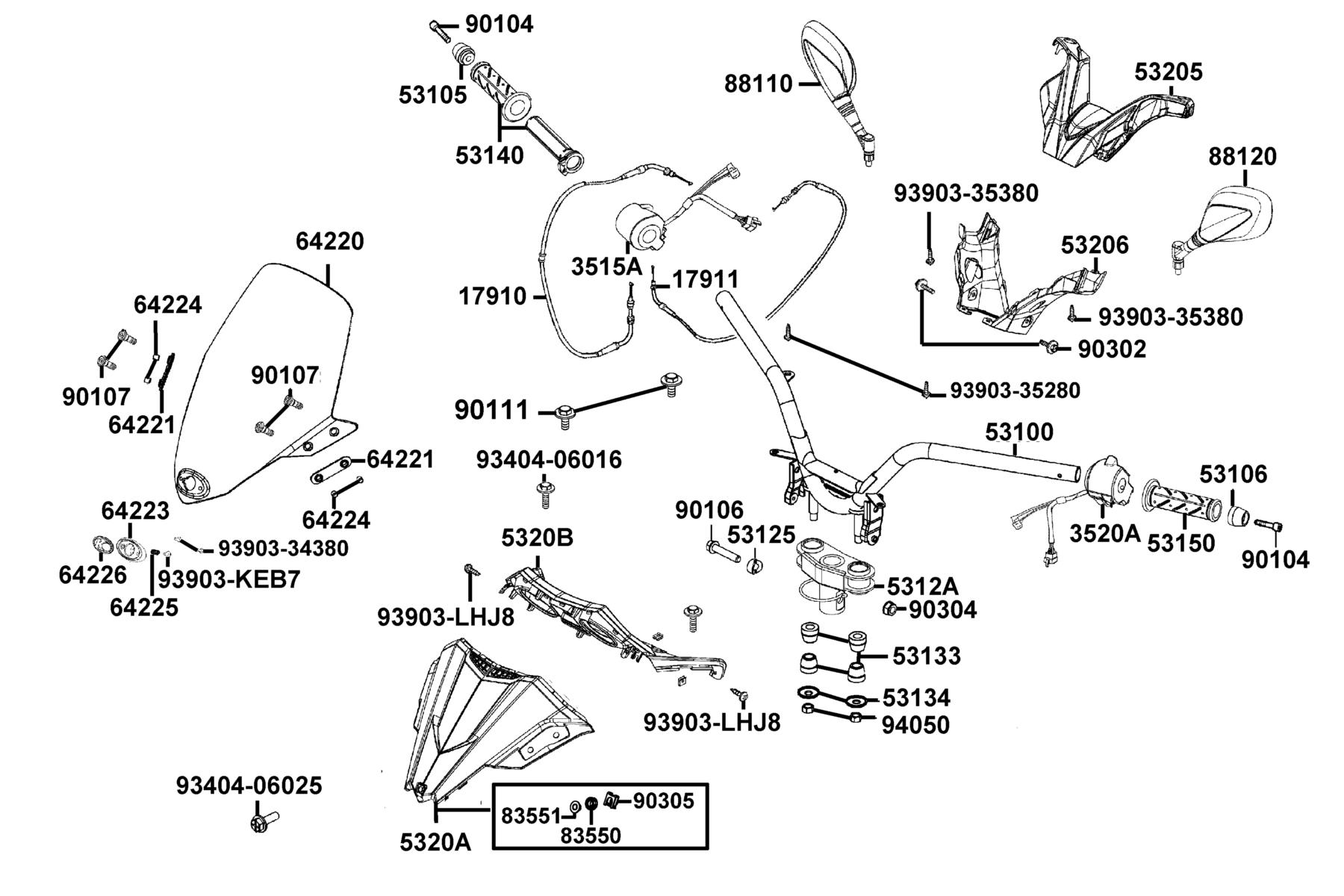

The Handle Steering ● Handle Cover diagram contains 41 genuine OEM parts for the KYMCO X-TOWN 300（2018）. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17910-LEA7-C00 | CABLE COMP THROT | 1 | $46.02 USD | View product → | |
| 2 | 17911-LEA7-C00 | "CABLE B COMP.,THROT" | 1 | $44.49 USD | View product → | |
| 3 | 3515A-ABD2-M30 | SW ASSY RH HANDLE COMP | 1 | $103.98 USD | View product → | |
| 4 | 3520A-ABD2-M30 | SW ASSY LH HANDLE COMP | 1 | $103.98 USD | View product → | |
| 5 | 53100-ABD2-E00 | HANDLE PIPE COMP. | 1 | $170.52 USD | View product → | |
| 6 | 53105-LEA7-C00 | "END R,HANDLE" | 1 | $34.23 USD | View product → | |
| 7 | 53106-LEA7-C00 | "END L,HANDLE" | 1 | $33.15 USD | View product → | |
| 8 | 53125-LEA7-C00 | BOLT FLANGE | 1 | $10.80 USD | View product → | |
| 9 | 5312A-ABD2-E00 | HOLDER COMP HANDLE | 1 | $404.16 USD | View product → | |
| 10 | 53133-3H98-C00 | RUBBER HANDLE CUSHION | 4 | $12.87 USD | View product → | |
| 11 | 53134-2C83-C01 | WASHER PLAIN 10MM (B) | 2 | $1.65 USD | View product → | |
| 12 | 53140-LHJ3-900-N1R | GRIP COMP THROT (Black) | 1 | $42.78 USD | View product → | |
| 13 | 53150-LEA6-900-N1R | GRIP COMP L HANDLE (Black) | 1 | $28.05 USD | View product → | |
| 14 | 53205-ABD2-C00-N1R | "COVER, HANDLE UP" | 1 | $32.28 USD | View product → | |
| 15 | 53206-ABD2-C00-N1R | "COVER HANDLE, LOW" (Black) | 1 | $29.52 USD | View product → | |
| 16 | 5320A-ABD2-C00-N1R | "ASSY.,FR.METER COVER" | 1 | $22.86 USD | View product → | |
| 17 | 5320B-ABD2-C01-N1R | "COVER ,METER" | 1 | $46.83 USD | View product → | |
| 18 | 64220-ABD2-C00 | WIND SCREEN | 1 | $207.09 USD | View product → | |
| 19 | 64221-LEA7-C00 | RUBBER WIND SCREEN | 2 | $7.68 USD | View product → | |
| 20 | 64223-LEA7-C00-N1R | "PLUG, WIND SCREEN" | 1 | $2.10 USD | View product → | |
| 21 | 64224-LEA7-C00 | COLLAR WIND SCREEN | 4 | $1.86 USD | View product → | |
| 22 | 64225-LEA7-C00 | "SPRING, COSMETIC K-LOGO" | 1 | — | Part details → | |
| 23 | 64226-LEA7-C00 | COSMETICK-LOGO | 1 | $14.73 USD | View product → | |
| 24 | 83550-ABD2-C00 | COLLAR | 1 | $5.82 USD | View product → | |
| 25 | 83551-KEC8-C10 | RUBBER | 1 | $3.96 USD | View product → | |
| 26 | 88110-LEA7-M30-N1P | MIRROR ASSY R BACK | 1 | $301.92 USD | View product → | |
| 27 | 90104-LEA7-C01 | "BOLT WASH.,M8*60" | 2 | $15.06 USD | View product → | |
| 28 | 90106-PUA3-B50 | BOLT FLANGE 10*50 | 1 | $4.92 USD | View product → | |
| 29 | 90107-LEA7-C01 | BOLT SPECIAL 8*26 | 1 | $9.51 USD | View product → | |
| 30 | 90111-06016-07G | BOLT FLANGE 6*16 (K) | 1 | $4.65 USD | View product → | |
| 31 | 90302-GFY6-C00 | BOLT-WASH 5*12 | 2 | $4.92 USD | View product → | |
| 32 | 90304-GHE8-C00 | NUT U 10MM (C) | 1 | $18.33 USD | View product → | |
| 33 | 90305-LBA2-C00 | "NUT,CLIP 6MM" | 1 | $4.59 USD | View product → | |
| 34 | 93404-06016-07G | BOLT WASHER 6*16 (KG) | 2 | $2.31 USD | View product → | |
| 35 | 93404-06025-07G | 0 | 1 | $2.31 USD | View product → | |
| 36 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 2 | $2.73 USD | View product → | |
| 37 | 93903-35280-G | SCREW TAPPING 5*12 (K) | 2 | $0.99 USD | View product → | |
| 38 | 93903-35380-G | SCREW TAPPING 5*16 | 2 | $0.15 USD | View product → | |
| 39 | 93903-KEB7-C01 | SCREW WASHER 4MM | 1 | $0.99 USD | View product → | |
| 40 | 93903-LHJ8-C01 | "SCREW,TAPPING 5X14" | 1 | $4.59 USD | View product → | |
| 41 | 94050-ALD7-C11 | NUT HEX CAP 6MM | 1 | $2.61 USD | View product → |
