F14 — Exhaust Muffler

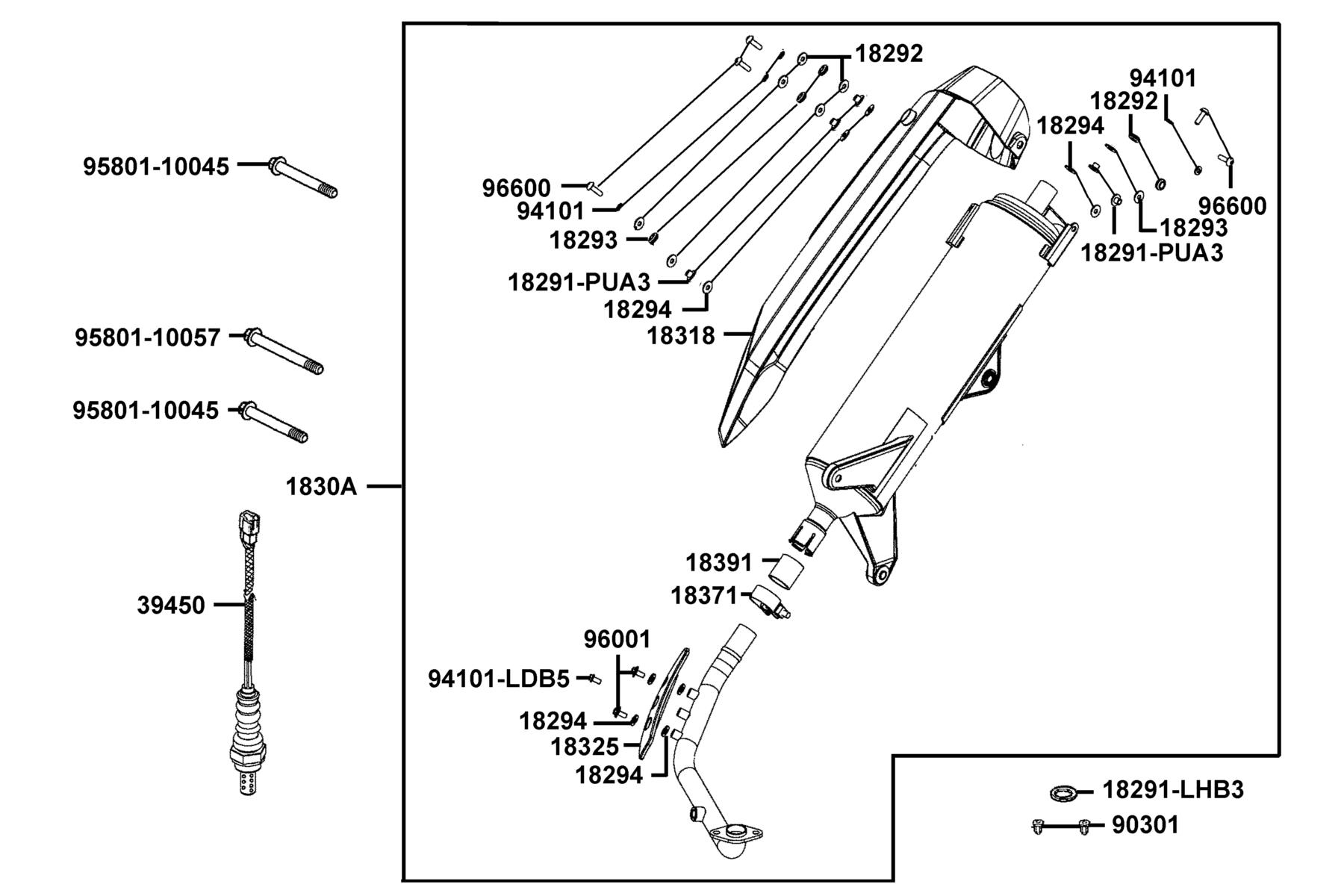

The Exhaust Muffler diagram contains 18 genuine OEM parts for the KYMCO X-TOWN 300（2018）. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 18291-LHB3-E11 | GASKET EXH PIPE | 1 | $19.26 USD | View product → | |
| 2 | 18291-PUA3-B50 | COLLAR | 1 | $4.26 USD | View product → | |
| 3 | 18292-KEBE-C00 | PACKING PROTECTOR | 1 | $2.61 USD | View product → | |
| 4 | 18293-KEBE-C00 | RUBBER PRK PROTR | 1 | $2.61 USD | View product → | |
| 5 | 18294-PUA3-B50 | PACKING INNER PROTECTOR | 1 | $4.20 USD | View product → | |
| 6 | 1830A-ABD2-M30 | MUFFLER ASSY EXH | 1 | $896.70 USD | View product → | |
| 7 | 18318-ACD5-E00-D1C | PROTECTOR.MUFFLER | 1 | $141.69 USD | View product → | |
| 8 | 18325-ABD2-C00-HJS | "PROTECTOR,EXHAUST" | 1 | $58.53 USD | View product → | |
| 9 | 18371-ABD2-C00 | BAND MUFFLER | 1 | $75.96 USD | View product → | |
| 10 | 18391-LDB2-E0A | "BAND,MUFFLER" | 1 | $8.16 USD | View product → | |
| 11 | 39450-LEA6-800 | O2 SENSOR | 1 | $292.26 USD | View product → | |
| 12 | 90301-GFY6-C01 | NUT (HEX) CAP 8MM | 2 | $15.21 USD | View product → | |
| 13 | 94101-LDB5-C00 | WASHER. PLAIN. 6mm | 2 | $4.11 USD | View product → | |
| 14 | 94101-LEA2-C00 | "WASHER PLAIN,6.5X18X1.5" | 5 | $1.65 USD | View product → | |
| 15 | 95801-10045-07G | BOLT FLANGE 10*45 | 2 | $13.77 USD | View product → | |
| 16 | 95801-10057-07G | BOLT FLANGE 10*57 | 1 | $17.31 USD | View product → | |
| 17 | 96001-06012-08 | BOLT FLANGE 6*12 | 2 | $2.61 USD | View product → | |
| 18 | 96600-ABD2-E00 | SOCKET BOLT 6X20 | 5 | $5.88 USD | View product → |
