F05 — Fender Front

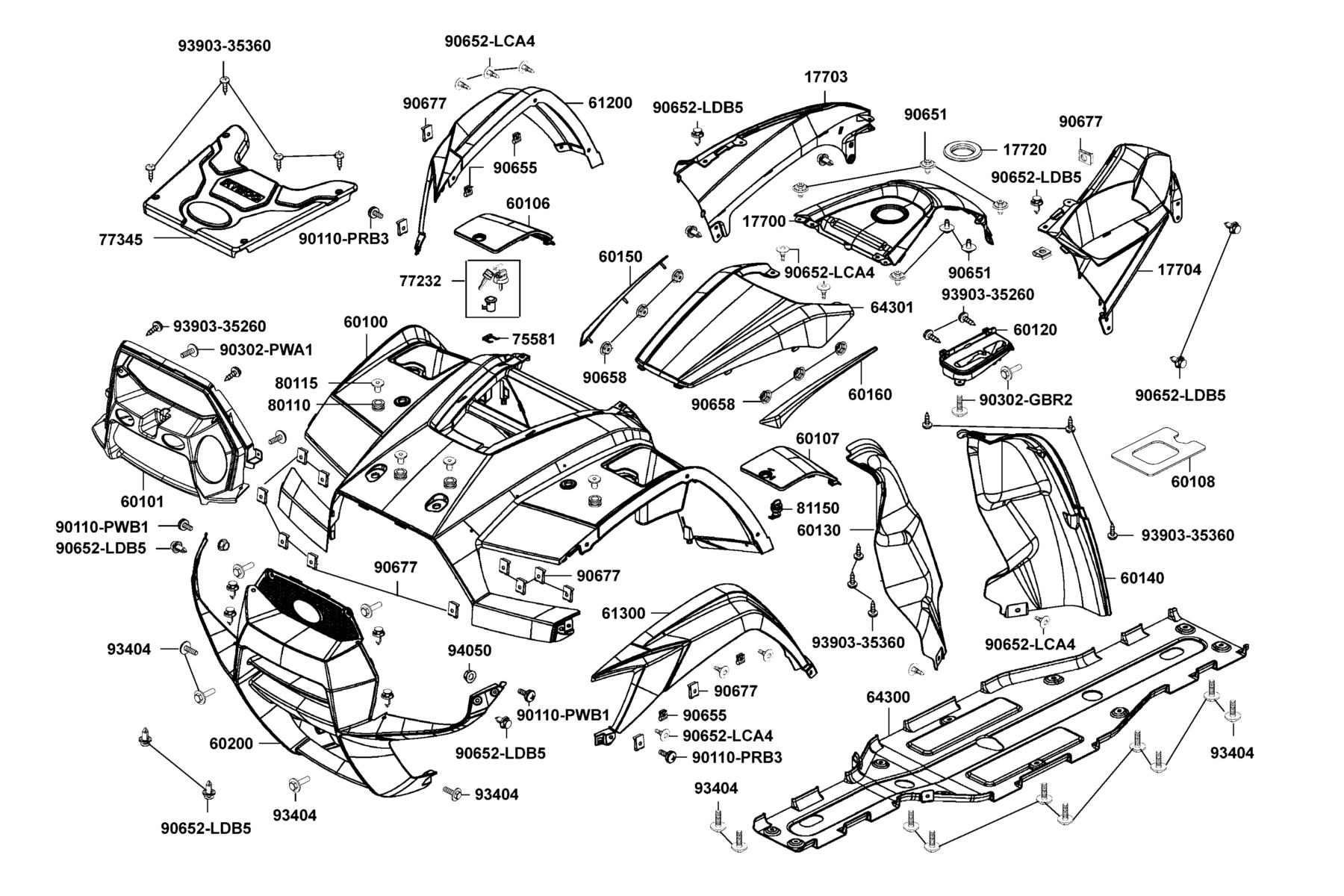

The Fender Front diagram contains 39 genuine OEM parts for the KYMCO MXU 700i (2017~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17700-ALC1-E00-NRR | COVER.TANK | 1 | $68.61 USD | View product → | |
| 2 | 17703-ALC1-600-JFT | TANK COVER R SIDE | 1 | $487.47 USD | View product → | |
| 3 | 17704-ALC1-600-JFT | TANK COVER L SIDE | 1 | $487.47 USD | View product → | |
| 4 | 17720-LBA7-900 | TRAY TANK COVER | 1 | $17.07 USD | View product → | |
| 5 | 60100-ALC1-600-JFT | FENDER FRONT | 1 | $598.58 USD | View product → | |
| 6 | 60101-ALC1-E00-F1P | PANEL TRIM FR FENDER | 1 | $250.11 USD | View product → | |
| 7 | 60106-ALC1-600-JFT | LID R TOOL BOX (New Conceal) | 1 | $326.85 USD | View product → | |
| 8 | 60107-ALC1-600-JFT | LID L TOOL BOX (New Conceal) | 1 | $326.85 USD | View product → | |
| 9 | 60108-ALC1-E00 | SEAL LID | 1 | $20.91 USD | View product → | |
| 10 | 60120-ALC1-E00-N1R | GUIDE COVER CHANGE HANDLE (Black) | 1 | $25.92 USD | View product → | |
| 11 | 60130-LFE9-E01-N1R | PROTECTOR R (Black) | 1 | $68.58 USD | View product → | |
| 12 | 60140-LFE9-E01-N1R | PROTECTOR L (Black) | 1 | $68.58 USD | View product → | |
| 13 | 60150-ALC1-E00-F1P | PANEL.R TRIM | 1 | $96.18 USD | View product → | |
| 14 | 60160-ALC1-E00-F1P | PANEL L TRIM | 1 | $96.18 USD | View product → | |
| 15 | 60200-ALC1-E00-N1R | MUDGUARD FRONT (Black) | 1 | $136.44 USD | View product → | |
| 16 | 61200-ALC1-E00-N1R | MUDGUARD R FR SIDE (Black) | 1 | $71.97 USD | View product → | |
| 17 | 61300-ALC1-E00-N1R | MUDGUARD L FR SIDE (Black) | 1 | $71.97 USD | View product → | |
| 18 | 64300-LFE9-E01-N1R | PLATE SKID (Black) | 1 | $111.30 USD | View product → | |
| 19 | 64301-ALC1-E00-NRR | COVER FRONT | 1 | $102.75 USD | View product → | |
| 20 | 75581-6C73-001 | SET SPG LOCK KEY | 1 | $12.84 USD | View product → | |
| 21 | 77232-GLW0-318-M2 | LOCK SET FUEL LID | 1 | $62.79 USD | View product → | |
| 22 | 77345-ALC1-E00-N1R | PLATE FR CARRIER RACK (Black) | 1 | $70.17 USD | View product → | |
| 23 | 80110-LDB5-900 | RUBBER FENDER | 2 | $3.66 USD | View product → | |
| 24 | 80115-LDB5-900 | COLLAR FENDER | 2 | $9.15 USD | View product → | |
| 25 | 81150-LEA7-E00 | LOCKLESS ASSY | 1 | $34.74 USD | View product → | |
| 26 | 90110-PRB3-900 | SCREW SPECUAL 5x16 | 2 | $0.48 USD | View product → | |
| 27 | 90110-PWB1-900 | SCREW SPECIAL 6X20 | 2 | $7.17 USD | View product → | |
| 28 | 90302-GBR2-001 | BOLT-WASH 5x16 | 2 | $3.99 USD | View product → | |
| 29 | 90302-PWA1-900 | BOLT-WASH 5*16 | 2 | $4.92 USD | View product → | |
| 30 | 90651-LCA5-E00 | CLIP FENDER | 6 | $4.92 USD | View product → | |
| 31 | 90652-LCA4-E00 | CLIP MUDGUARD | 10 | $4.92 USD | View product → | |
| 32 | 90652-LDB5-900 | CLIP MUDGUARD | 14 | $5.31 USD | View product → | |
| 33 | 90655-PWA2-900 | CLIP FENDER MOUNTING | 4 | $5.67 USD | View product → | |
| 34 | 90658-PWA2-900 | NUT STAMPED | 6 | $6.06 USD | View product → | |
| 35 | 90677-GAR1-004 | NUT CLIP 5MM | 16 | $3.00 USD | View product → | |
| 36 | 93404-06016-06 | BOLT WASHER 6*16 | 16 | $7.89 USD | View product → | |
| 37 | 93903-35260 | SCREW TAPPING 5*12 | 4 | $4.92 USD | View product → | |
| 38 | 93903-35360 | SCREW TAPPING 5*16 | 10 | $3.78 USD | View product → | |
| 39 | 94050-LDE9-E00 | NUT LOCK | 2 | $2.61 USD | View product → |
