F25 — Emblem●Stripe

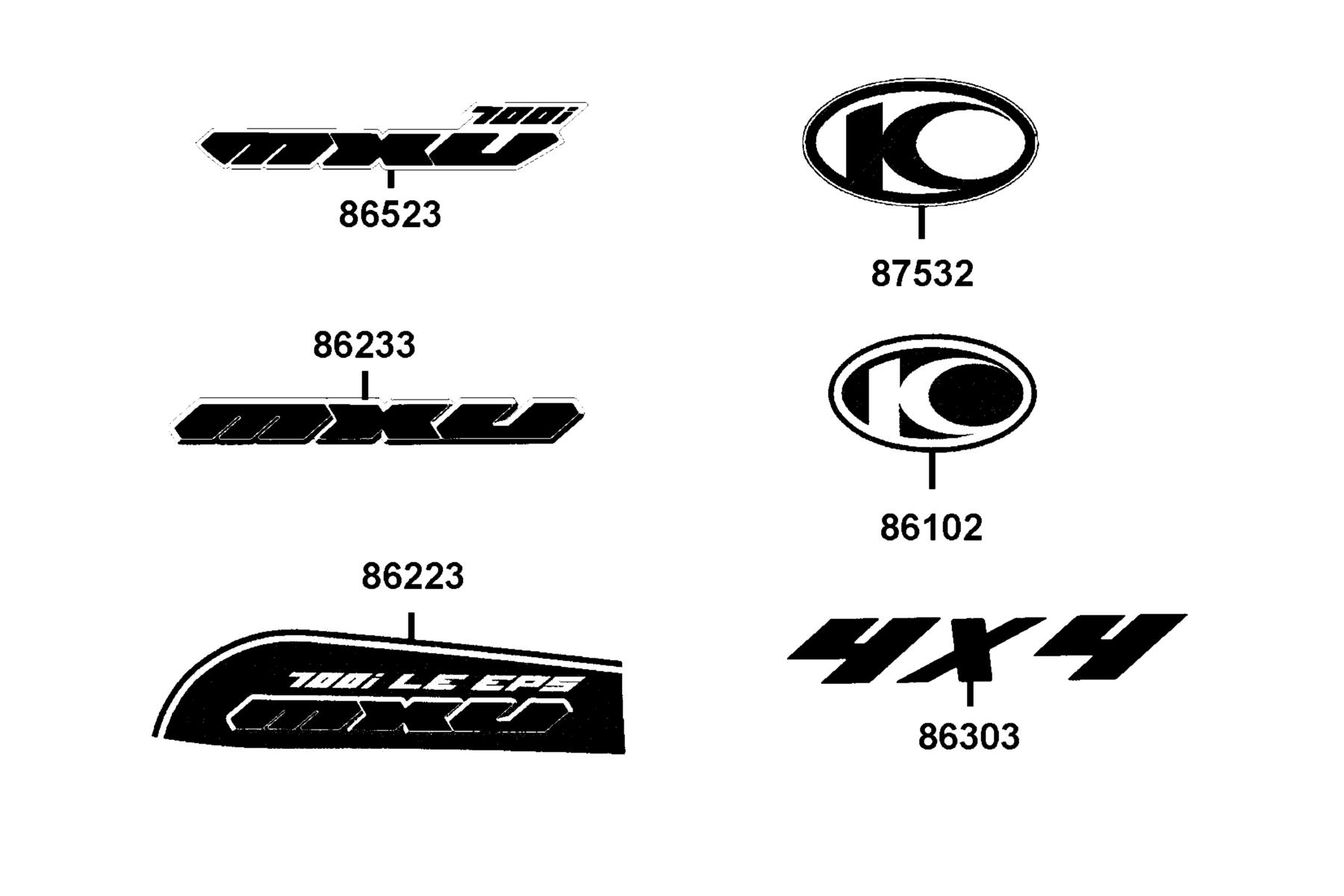

The Emblem●Stripe diagram contains 6 genuine OEM parts for the KYMCO MXU 700i (2017~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 86102-ALC1-E01-T01 | STRIPE K-LOGO | 1 | — | Part details → | |
| 2 | 86223-LKM5-M33-T01 | STPIPE R FUEL TANK | 1 | $72.57 USD | View product → | |
| 3 | 86233-LKM5-M33-T01 | STRIPE L FUEL TANK | 1 | $37.56 USD | View product → | |
| 4 | 86303-LKM5-M30-T01 | STRIPE 4X4 SIDE | 1 | $37.83 USD | View product → | |
| 5 | 86523-LKM5-M31-T01 | STRIPE R FENDER FR | 1 | $48.60 USD | View product → | |
| 6 | 87532-LCA5-900-T03 | STRIPE K-LOGO 60MM | 1 | $18.72 USD | View product → |
