E03 — Valve

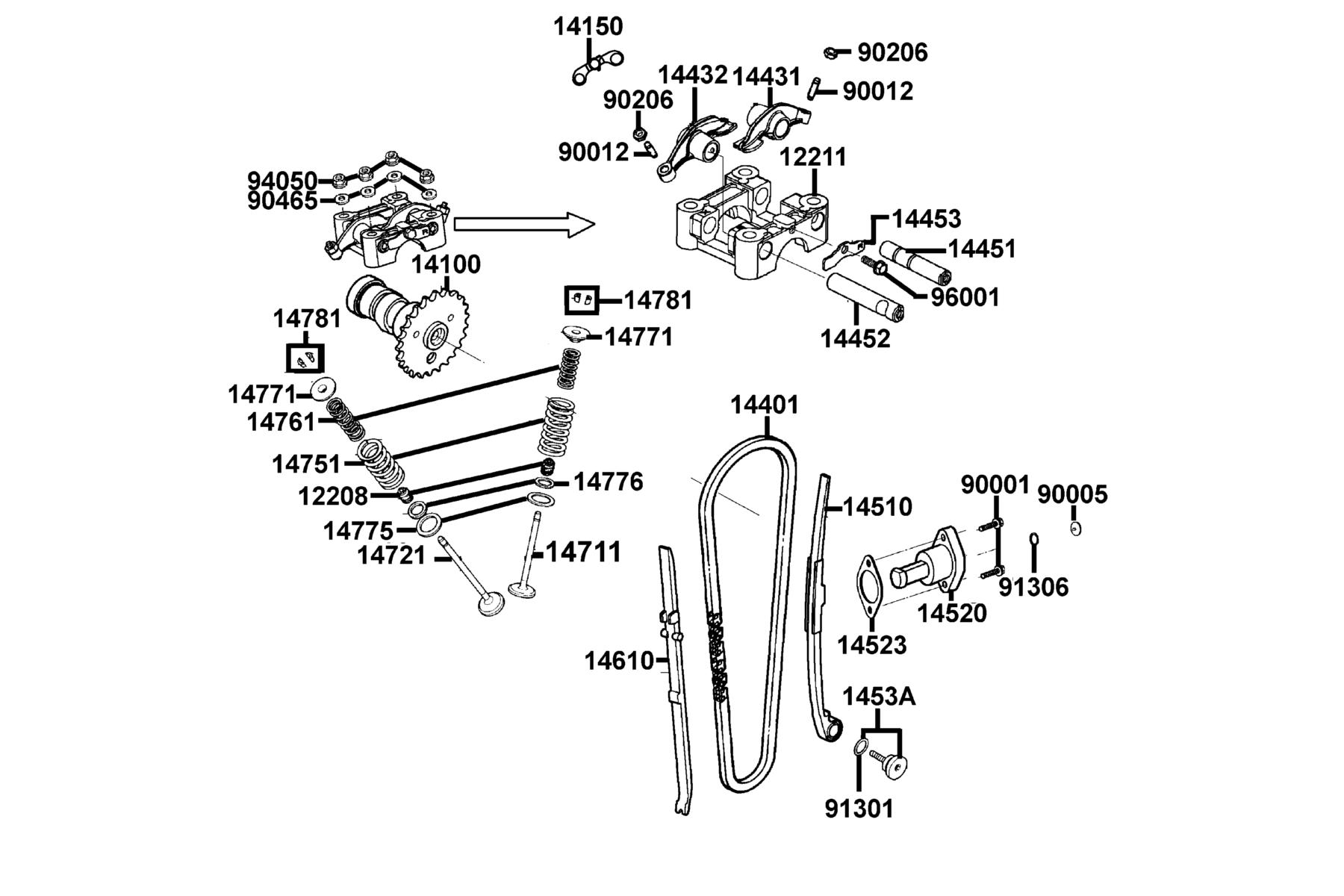

The Valve diagram contains 33 genuine OEM parts for the KYMCO MXU 150 X (2016-2017). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 12208-4C13-004 | SEAL VALVE STEM | 2 | $30.18 USD | View product → | |
| 2 | 12211-LCA4-E00 | HOLDER CAM SHAFT | 1 | $88.74 USD | View product → | |
| 3 | 14100-LCA4-E00 | SHAFT COMP CAM | 1 | $211.14 USD | View product → | |
| 4 | 14150-LCA4-E00 | PLATE COMP STOPPER | 1 | $27.12 USD | View product → | |
| 5 | 14401-KEC8-90A | CHAIN CAM | 1 | $106.35 USD | View product → | |
| 6 | 14401-KEC8-90B | CHAIN CAM (KMC) | 1 | $106.35 USD | View product → | |
| 7 | 14431-LCA4-E00 | ARM VALVE ROCKER | 1 | $109.02 USD | View product → | |
| 8 | 14432-LCA4-E00 | ARM EX VALVE ROCKER | 1 | $109.02 USD | View product → | |
| 9 | 14451-LCA4-E00 | SHAFT IN ROCLER ARM | 1 | $35.07 USD | View product → | |
| 10 | 14452-KEC8-900 | SHAFT EX ROCKER ARM | 1 | $23.40 USD | View product → | |
| 11 | 14453-KEC8-900 | SET PLATE ROCKER ARM SHAFT | 1 | $4.98 USD | View product → | |
| 12 | 14510-LLB1-900 | TENSIONER CAM CHAIN | 1 | $43.17 USD | View product → | |
| 13 | 14520-GFY6-90C | LIFTER ASSY.. TENSIONER | 1 | $125.97 USD | View product → | |
| 14 | 14523-KED9-920 | GASKET TENSIONER LIFTER @A | 1 | $3.81 USD | View product → | |
| 15 | 1453A-LLB1-900 | PIVOT CAM CHAIN SET | 1 | $13.95 USD | View product → | |
| 16 | 14610-LLB1-900 | GUIDE COMP CAM CHAIN | 1 | $19.35 USD | View product → | |
| 17 | 14711-4G37-001 | VALVE INLET | 1 | $85.14 USD | View product → | |
| 18 | 14721-4G37-0001 | VALVE EXHAUST | 1 | $79.74 USD | View product → | |
| 19 | 14751-LLB1-900 | SPRING VALVE OUTER | 2 | $50.07 USD | View product → | |
| 20 | 14761-LLB1-900 | SPRING VALVE INNER | 2 | $28.74 USD | View product → | |
| 21 | 14771-1G07-021 | RETAINER VALVE SPRING | 2 | $24.03 USD | View product → | |
| 22 | 14775-1G07-001 | SEAT VALVE SPG OUTER | 2 | $4.98 USD | View product → | |
| 23 | 14776-1G07-011 | SEAT VALVE SPRING INNER | 2 | $5.07 USD | View product → | |
| 24 | 14781-1G07-021 | COTTER VALVE | 4 | $16.68 USD | View product → | |
| 25 | 90001-GBHB-661 | BOLT FLANGE SH 6*22 | 2 | $4.92 USD | View product → | |
| 26 | 90005-KED9-900 | BOLT SPECIAL 6*6 | 1 | $2.76 USD | View product → | |
| 27 | 90012-4E15-001 | SCREW TAPPING ADJUSTING | 2 | $17.82 USD | View product → | |
| 28 | 90206-2L50-001 | NUT TAPPET ADJUSTING | 2 | $3.36 USD | View product → | |
| 29 | 90465-MDC4-001 | WASHER 8MM | 4 | $3.78 USD | View product → | |
| 30 | 91301-GLR0-005 | O-RING 15.2X1.5 | 1 | $3.00 USD | View product → | |
