F07 — Front Wheel

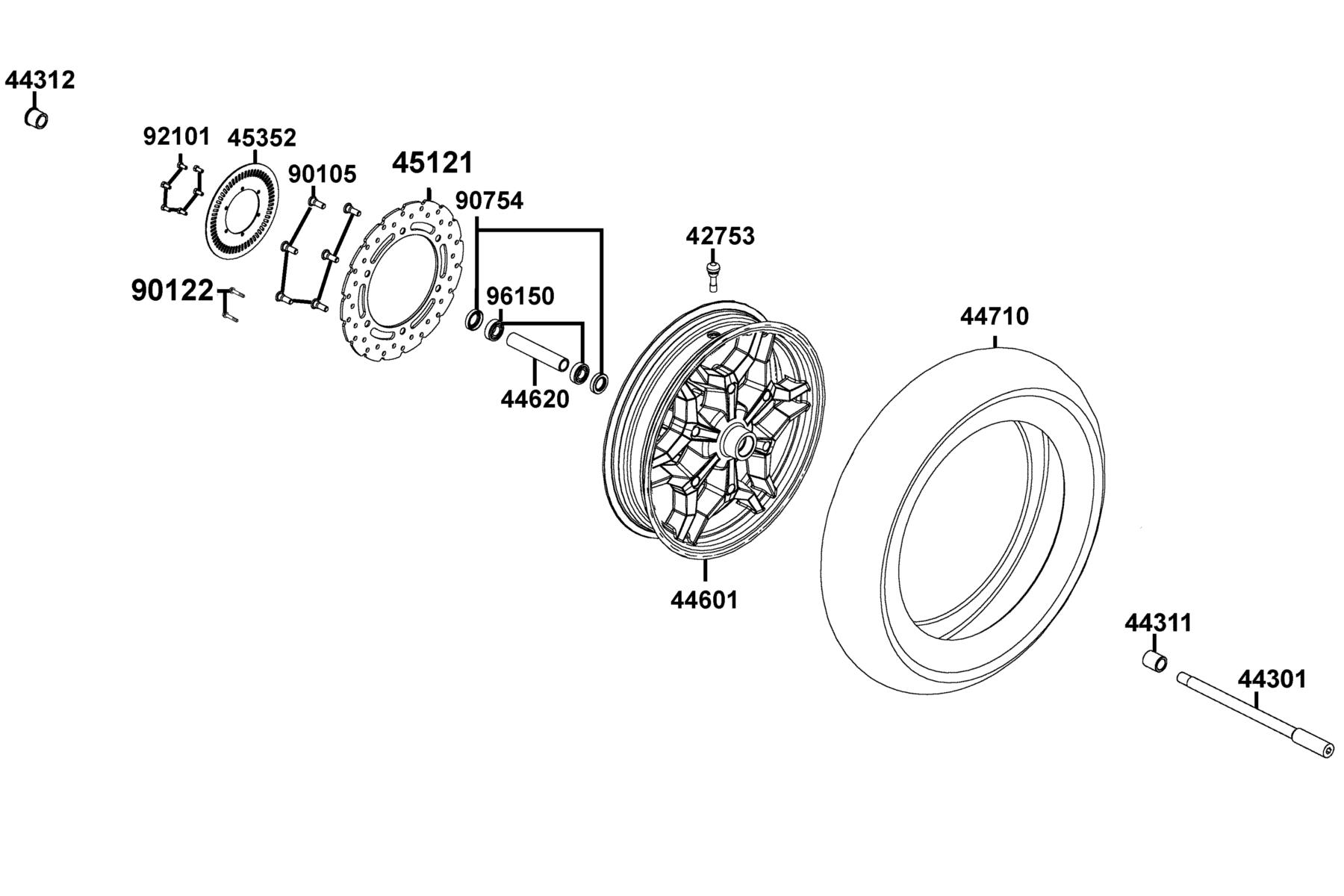

The Front Wheel diagram contains 14 genuine OEM parts for the KYMCO X-Town 300i ABS (2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42753-0F06-C00 | VALAE RIM | 1 | $34.17 USD | View product → | |
| 2 | 44301-LEA7-C00 | AXLE FR WHEEL M15*282(B) | 2 | $63.06 USD | View product → | |
| 3 | 44311-LEA7-C00 | COLLAR FR AXLE SIDE | 1 | $9.84 USD | View product → | |
| 4 | 44312-LEA7-C00 | CAP FR AXLE | 1 | $9.51 USD | View product → | |
| 5 | 44601-ABD2-E30-YYA | WHEEL FR CAST | 1 | $417.21 USD | View product → | |
| 6 | 44620-LEA7-C00 | COLLAR FR DIST | 1 | $15.51 USD | View product → | |
| 7 | 44710-ABD2-C00 | TIRE ASSY, FR | 1 | $429.58 USD | View product → | |
| 8 | 45121-ABD2-C00 | DISK. FR BRAKE | 1 | $141.00 USD | View product → | |
| 9 | 45352-ABD2-900 | TOOTHED RING??? SENSOR | 1 | $32.22 USD | View product → | |
| 10 | 90105-KCR3-C02 | BOLT FR DISK 8*24 | 5 | $9.84 USD | View product → | |
| 11 | 90122-LEA7-C01 | BOLT FLANGE 10X42(KG) | 2 | $17.61 USD | View product → | |
| 12 | 90754-LLJ3-C00 | DUST SEAL 22X32X7 | 2 | $5.88 USD | View product → | |
| 13 | 92101-05012-0HG | BOLT HEX 5*12 | 1 | $0.66 USD | View product → | |
| 14 | 96150-60020-10 | BEARING BALL RADIAL 6002 | 2 | $48.24 USD | View product → |
