F11 — Battery

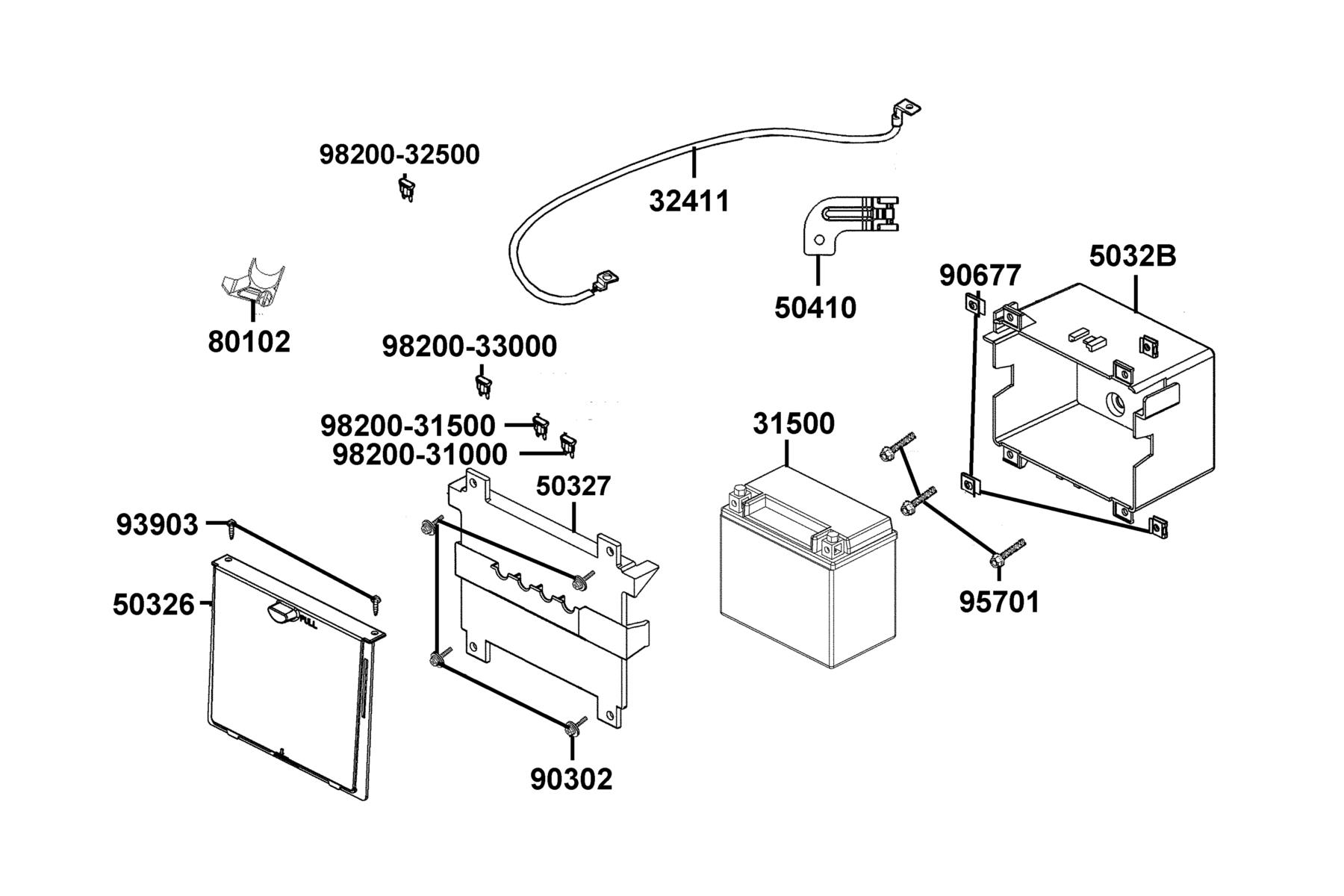

The Battery diagram contains 14 genuine OEM parts for the KYMCO X-Town 300i ABS (2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 32411-ABD2-C00 | "CABEL, BATTERY" | 1 | $54.72 USD | View product → | |
| 2 | 50326-ABD2-C00-N1R | COVER BATTERY (Black) | 1 | $11.79 USD | View product → | |
| 3 | 50327-ABD2-C01-N1R | COVER ASSY BATTERY | 1 | $14.43 USD | View product → | |
| 4 | 5032B-ABD2-C01 | CATCH ASSY BATTERY CASE | 1 | $34.83 USD | View product → | |
| 5 | 50410-ABD2-C01 | "STAY,FUSE BOX" | 1 | $10.14 USD | View product → | |
| 6 | 80102-ABD2-C00 | PLATE SPLASH BOARD | 1 | $13.05 USD | View product → | |
| 7 | 90302-GFY6-C11 | BOLT-WASH 5*16 | 4 | $4.65 USD | View product → | |
| 8 | 90677-GAR1-C01 | NUT CLIP 5MM | 1 | $1.65 USD | View product → | |
| 9 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 2 | $2.73 USD | View product → | |
| 10 | 95701-06012-07G | BOLT FLANGE 6*12 (K) | 3 | $0.99 USD | View product → | |
| 11 | 98200-31000 | BLADE FUSE 10A | 3 | $4.92 USD | View product → | |
| 12 | 98200-31500 | BLADE FUSE 15A | 3 | $4.92 USD | View product → | |
| 13 | 98200-32500 | BLADE FUSE 25A | 1 | $18.57 USD | View product → | |
| 14 | 98200-33000 | BLADE FUSE 30A | 2 | $4.92 USD | View product → |
