E06 — Driven Pulley

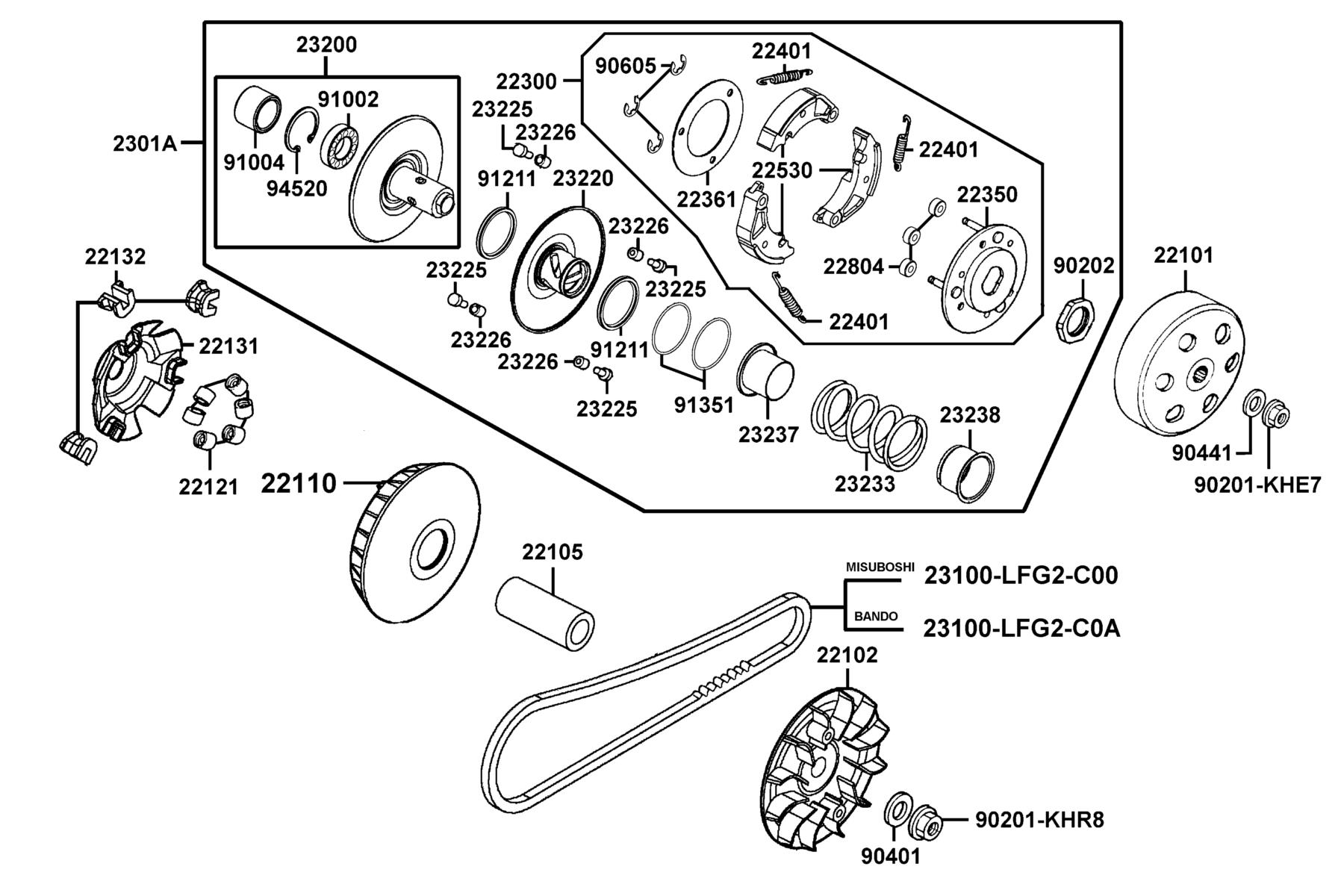

The Driven Pulley diagram contains 34 genuine OEM parts for the KYMCO X-Town 300i ABS (2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 22101-LBA7-C00 | OUTER CLUTCH | 1 | $117.42 USD | View product → | |
| 2 | 22102-KHE7-C00 | FACE DRIVE | 1 | $59.40 USD | View product → | |
| 3 | 22105-LBA7-C00 | BOSS DRIVE FACE | 1 | $39.93 USD | View product → | |
| 4 | 22110-LFG1-C00 | FACE COMP MOVABLE DRIVE | 1 | $146.58 USD | View product → | |
| 5 | 22121-LFG2-315 | ROLLER SET WEIGHT (1SET:6PCS) | 1 | $110.01 USD | View product → | |
| 6 | 22131-LBA7-C00 | PLATE RAMP | 1 | $114.54 USD | View product → | |
| 7 | 22132-KHE7-405 | PIECE SLIDE SET (1SET:3PCS) | 1 | $63.72 USD | View product → | |
| 8 | 22300-LFG2-C00 | PLATE ASSY DRIVE | 1 | $555.45 USD | View product → | |
| 9 | 22350-KHE7-C00 | PLATE COMP DRIVE | 3 | $162.69 USD | View product → | |
| 10 | 22361-LEA7-C00 | PLATE CLUTCH SIDE | 1 | $58.62 USD | View product → | |
| 11 | 22401-LFG2-C00 | SPRING CLUTCH | 3 | $29.61 USD | View product → | |
| 12 | 22530-KHE7-C00 | "WEIGHT,CLUTCH" | 3 | $226.05 USD | View product → | |
| 13 | 22804-GBB2-C00 | RUBBER CLUTCH DAMPER | 3 | $25.23 USD | View product → | |
| 14 | 2301A-LFG2-E81 | PULLEY SUB ASSY | 1 | $475.17 USD | View product → | |
| 15 | 23100-LFG2-C00 | BELT, DRIVE | 1 | $281.43 USD | View product → | |
| 16 | 23100-LFG2-C0A | BELT DRIVE | 1 | $281.43 USD | View product → | |
| 17 | 23200-KHE7-C00 | FACE ASSY DRIVEN | 1 | $561.81 USD | View product → | |
| 18 | 23220-LFG2-C00 | FACE MOVABLE DRIVEN | 1 | $383.79 USD | View product → | |
| 19 | 23225-KHE7-C00 | PIN ROLLER GUIDE | 1 | $17.61 USD | View product → | |
| 20 | 23226-GHC8-C00 | ROLLER GUIDE | 1 | $1.59 USD | View product → | |
| 21 | 23233-KHE7-C00 | SPG DRIVEN FACE | 1 | $103.83 USD | View product → | |
| 22 | 23237-KHE7-C00 | COLLAR SEAL | 1 | $62.61 USD | View product → | |
| 23 | 23238-KHE7-C00 | COLLAR SPG | 1 | $58.62 USD | View product → | |
| 24 | 90201-KHE7-C01 | NUT C FLANGE M12 | 1 | $13.62 USD | View product → | |
| 25 | 90201-KHR8-C01 | NUT FLANGE 14MM | 1 | $13.62 USD | View product → | |
| 26 | 90202-1G87-C00 | NUT SPECIAL 28MM | 1 | $14.07 USD | View product → | |
| 27 | 90401-KKJ9-C00 | WASHER THRUST 14*28*2 | 1 | $11.19 USD | View product → | |
| 28 | 90441-GFY6-C01 | WASHER 12.2*29*2.5 | 1 | $4.65 USD | View product → | |
| 29 | 90605-1F66-C00 | CIR CLIP 7MM | 3 | $2.61 USD | View product → | |
| 30 | 91002-GGA7-70A | BRG BALL RADIAL 6902U | 1 | $51.27 USD | View product → | |
| 31 | 91004-KHE7-C00 | BRG NDL 22*29*18 | 1 | $41.61 USD | View product → | |
| 32 | 91211-KHE7-C00 | SEAL DRIVEN FACE 40*47*4 | 1 | $86.16 USD | View product → | |
| 33 | 91351-KHE7-C00 | O-RING PINION CAP | 1 | $17.61 USD | View product → | |
| 34 | 94520-28000 | CIR CLIP IN 28 | 1 | $4.92 USD | View product → |
