F22 — Emblem ● Stripe

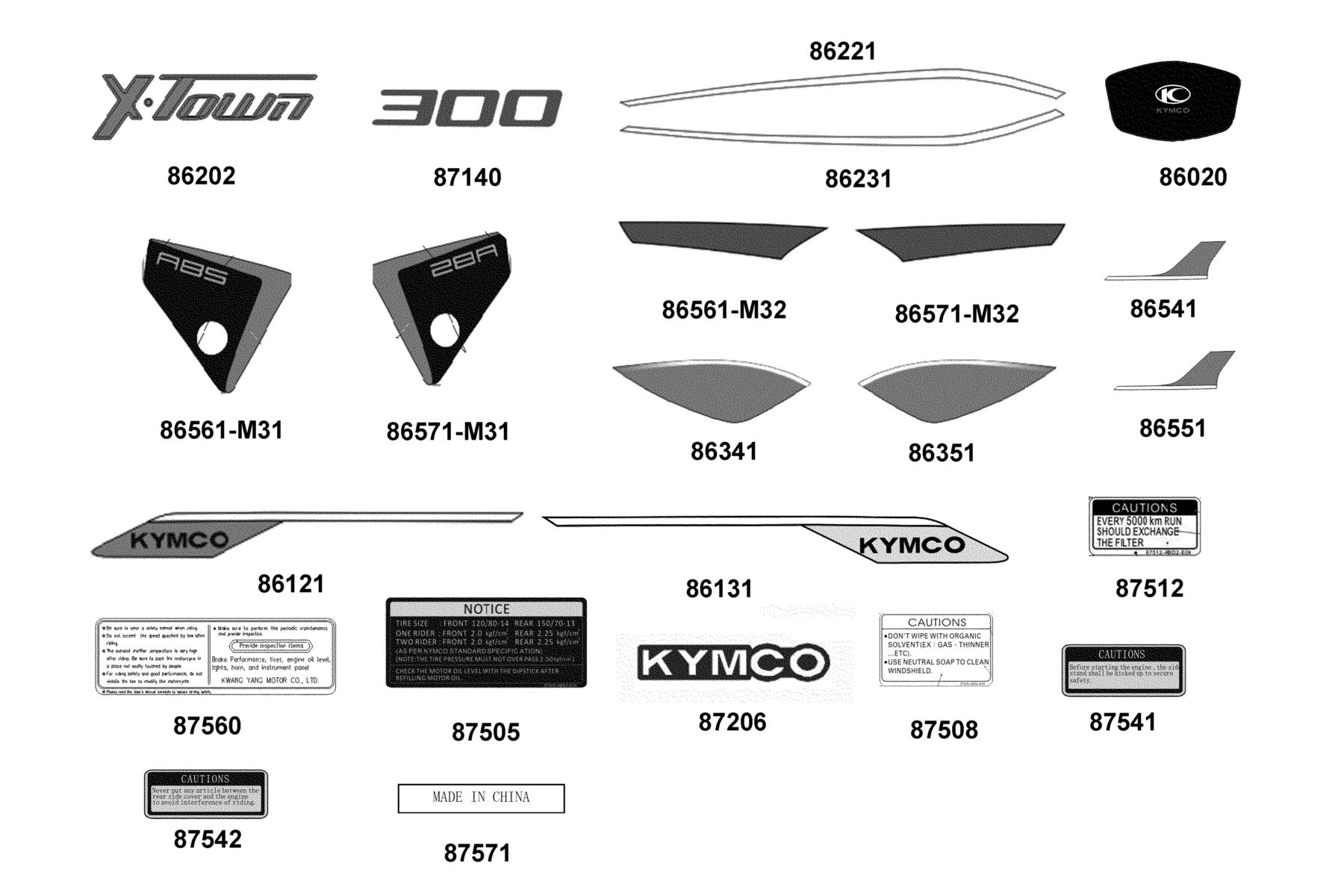

The Emblem ● Stripe diagram contains 23 genuine OEM parts for the KYMCO X-Town 300i ABS (2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 86020-ACJ1-E30-T01 | EMB DMA STRIDER | 1 | $15.84 USD | View product → | |
| 2 | 86121-ABD2-M31-T02 | STRIPE R FR COVER | 1 | $22.38 USD | View product → | |
| 3 | 86131-ABD2-M31-T02 | STRIPE L FR COVER | 1 | $46.20 USD | View product → | |
| 4 | 86202-ACJ1-E60-T04 | EMB BODY COVER | 2 | $32.73 USD | View product → | |
| 5 | 86221-ABD2-C03-T02 | STRIPE R BODY COVER | 1 | $34.14 USD | View product → | |
| 6 | 86231-ABD2-C03-T02 | STRIPE L BODY COVER | 1 | $86.16 USD | View product → | |
| 7 | 86341-ABD2-M31-T02 | STRIPE R SKIRT | 1 | $54.66 USD | View product → | |
| 8 | 86351-ABD2-M31-T02 | STRIPE L SKIRT | 1 | $47.04 USD | View product → | |
| 9 | 86541-ABD2-M31-T02 | STRIPE R FR MOLD | 1 | $28.68 USD | View product → | |
| 10 | 86551-ABD2-M31-T02 | STRIPE L FR MOLD | 1 | $50.91 USD | View product → | |
| 11 | 86561-ABD2-M31-T02 | STRIPE R FR FENDER | 1 | $18.45 USD | View product → | |
| 12 | 86561-ABD2-M32-T02 | STRIPE R FR FENDER | 1 | $7.65 USD | View product → | |
| 13 | 86571-ABD2-M31-T02 | STRIPE L FR FENDER | 1 | $18.45 USD | View product → | |
| 14 | 86571-ABD2-M32-T02 | STRIPE L FR FENDER | 1 | $7.65 USD | View product → | |
| 15 | 87140-ABD2-E00-T03 | EMB MARK 300 TAPE A | 2 | $50.64 USD | View product → | |
| 16 | 87206-ABD2-C00-T01 | MARK KYMCO | 1 | $7.23 USD | View product → | |
| 17 | 87505-ABD2-E00-T01 | LABEL TIRE | 1 | $9.51 USD | View product → | |
| 18 | 87508-ABD2-E00-T02 | CAUTION FEDERAL LAW | 1 | $9.51 USD | View product → | |
| 19 | 87512-ABD2-E00-T01 | CAUTION LIST | 1 | $4.59 USD | View product → | |
| 20 | 87541-GAR1-C01-T01 | CAUTION SIDE STAND | 1 | $5.34 USD | View product → | |
| 21 | 87542-GAR1-C01-T01 | MARK MAINT CAUTION R | 1 | $2.97 USD | View product → | |
| 22 | 87560-GFY6-E11-T01 | MARK DRIVE CAUTION | 1 | $6.87 USD | View product → | |
| 23 | 87571-LDC8-B90-T01 | LABEL MIC | 1 | $7.23 USD | View product → |
