F23 — Separated Parts Of Halfshaft

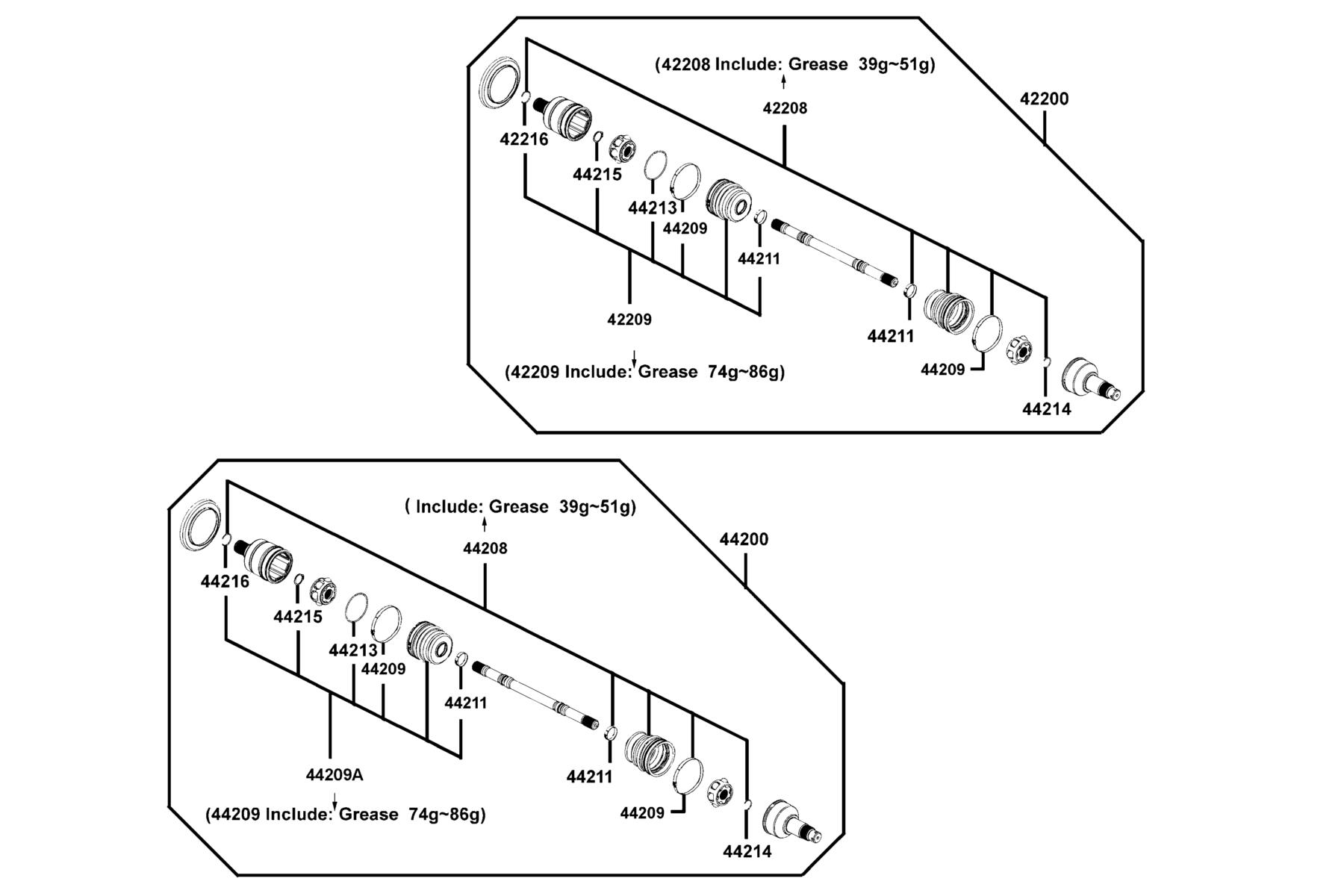

The Separated Parts Of Halfshaft diagram contains 13 genuine OEM parts for the KYMCO MAXXER 450I. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42200-ZXA6-M02 | HALFSHAFT. REAR | 1 | $485.13 USD | View product → | |
| 2 | 42208-ZXA6-305 | WHEEL SIDE BOOT SERVICE KIT | 1 | $108.06 USD | View product → | |
| 3 | 42209-ZXA6-305 | DIFF SIDE BOOT SERVICE KIT | 1 | $110.34 USD | View product → | |
| 4 | 42216-PWB1-900 | CIRCLIP (DOJ STEM) | 1 | $20.64 USD | View product → | |
| 5 | 44200-ZXA6-M02 | HALFSHAFT. FRONT | 1 | $485.13 USD | View product → | |
| 6 | 44208-ZXA6-305 | WHEEL SIDE BOOT SERVICE KIT | 1 | $106.92 USD | View product → | |
| 7 | 44209-ALC1-E00 | BOOT BAND (L) | 1 | $35.37 USD | View product → | |
| 8 | 44209-ZXA6-305 | DIFF SIDE SERVICE KIT | 1 | $111.06 USD | View product → | |
| 9 | 44211-ALC1-E00 | BOOT BAND(S) | 1 | $30.03 USD | View product → | |
| 10 | 44213-PWB1-900 | CIRCLIP (DOJ MONTH) | 2 | $17.82 USD | View product → | |
| 11 | 44214-PWB1-900 | CIRCLIP | 2 | $16.68 USD | View product → | |
| 12 | 44215-PWB1-900 | SNAP RING | 2 | $37.14 USD | View product → | |
| 13 | 44216-PWB1-900 | CIRCLIP (DOJ STEM) | 2 | $15.36 USD | View product → |
