F03 — Handle Steering●Handle Cover

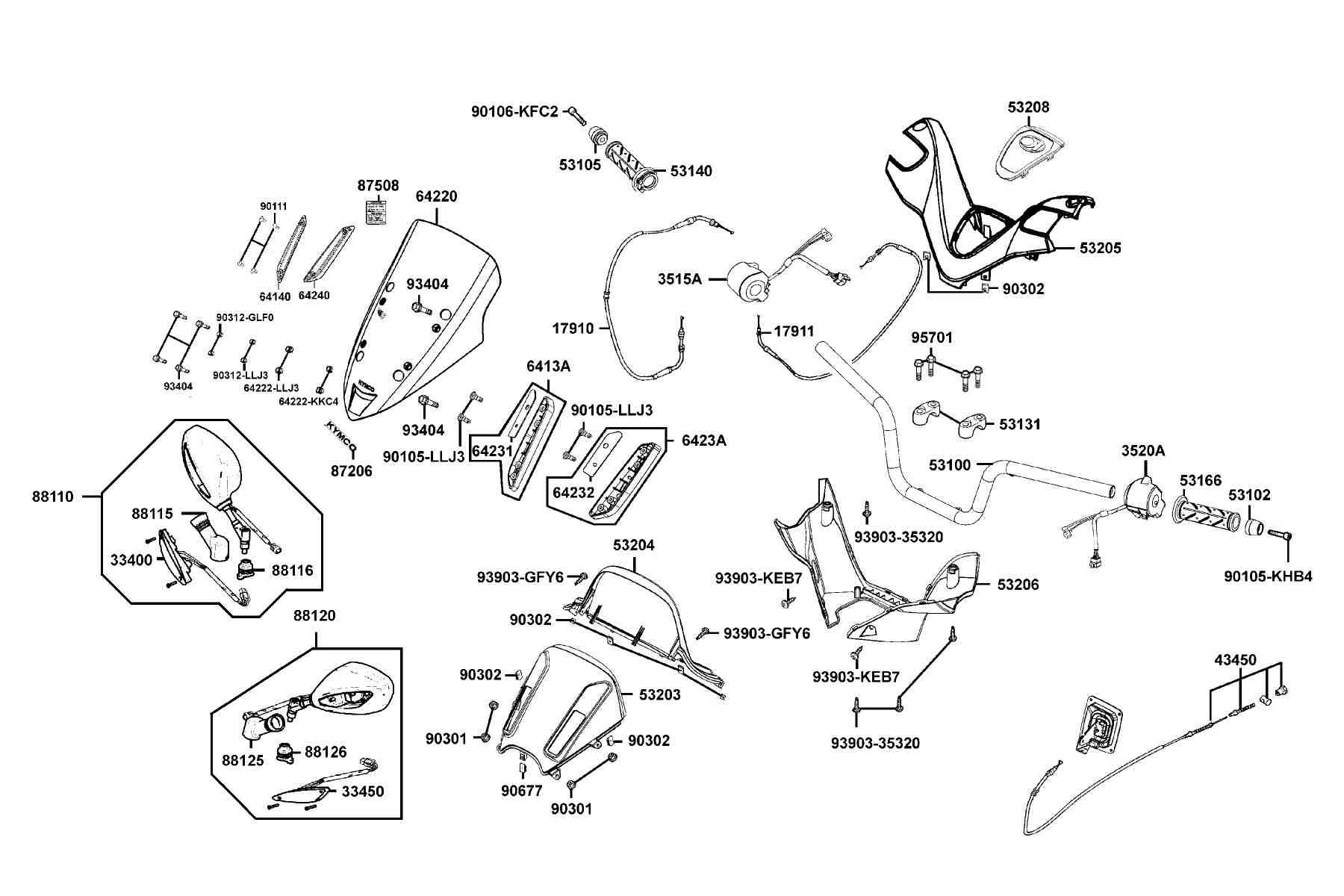

The Handle Steering●Handle Cover diagram contains 48 genuine OEM parts for the KYMCO XCITING R500i(2014). Hover a callout on the drawing to highlight the part in the list, click it to open that part’s product page on kymcopartsstore.com, or click the drawing to zoom.
US shipping, calculated at checkout · Special orders come from KYMCO’s US distributor · 14-day returns & fitment guarantee
-
CABLE COMP THROT -
CABLE B COMP THROT -
WINKER ASSY R MIRROR -
WINKER ASSY L MIRROR -
SW ASSY RH HANDLE COMP -
SW ASSY LH HANDLE COMP -
HANDLE COMP STEERING -
$50.82 View product → -
$50.82 View product → -
HOLDER HANDLE PIPE -
GRIP COMP THROT (Black) -
GRIP L HANDLE (Black) -
COVER METER FR (Black) -
COVER METER RR (Black) -
COVER HANDLE UP (Black) -
COVER R HANDLE LOW (Black) -
GRILL HANDLE UP -
HOLDER ASSY..R WIND SCREEN (Black) -
COVER.R WIND SCREEN (Black) -
WIND SCREEN -
$4.32 View product → -
$3.66 View product → -
SPONGE TAPE R HOLDER -
SPONGE TAPE L HOLDER -
HOLDER ASSY L WIND SCREEN (Black) -
COVER L WIND SCREEN (Black) -
$26.73 View product → -
LABEL CLEANLINESS CAUTION -
MIRROR ASSY R BACK -
CAP MIRROR STEM R -
COVER KNOCK RUBBER R -
MIRROR ASSY L/H BACK -
CAP MIRROR STEM L -
COVER KNOCK RUBBER L -
$21.21 View product → -
$9.39 View product → -
$10.80 View product → -
$4.38 View product → -
$3.00 View product → -
$4.26 View product → -
$1.86 View product → -
$12.12 View product → -
$3.00 View product → -
$3.00 View product → -
$3.78 View product → -
$2.61 View product → -
$1.86 View product → -
$5.88 View product →
Common questions
What does the F03 Handle Steering●Handle Cover diagram for the XCITING R500i(2014) contain?
48 genuine OEM parts from KYMCO’s factory catalog for the XCITING R500i(2014), 48 of them priced. The exploded view shows exactly where each part sits in the assembly, and every listed part links to its product page on kymcopartsstore.com, where it is ordered.
How do I find the OEM part number from this diagram?
Hover a numbered callout on the drawing and the matching row highlights in the parts list with its factory part number, required quantity, and price. Click the row to open that part’s product page on kymcopartsstore.com. Click the drawing to zoom, or use the position numbers to match by hand.
Are the parts on this diagram original KYMCO parts?
Yes — every part number comes from KYMCO’s official catalog for this exact model, year, and color. Genuine OEM only, no aftermarket substitutes.
