F05 — Front Cover●Floor Panel

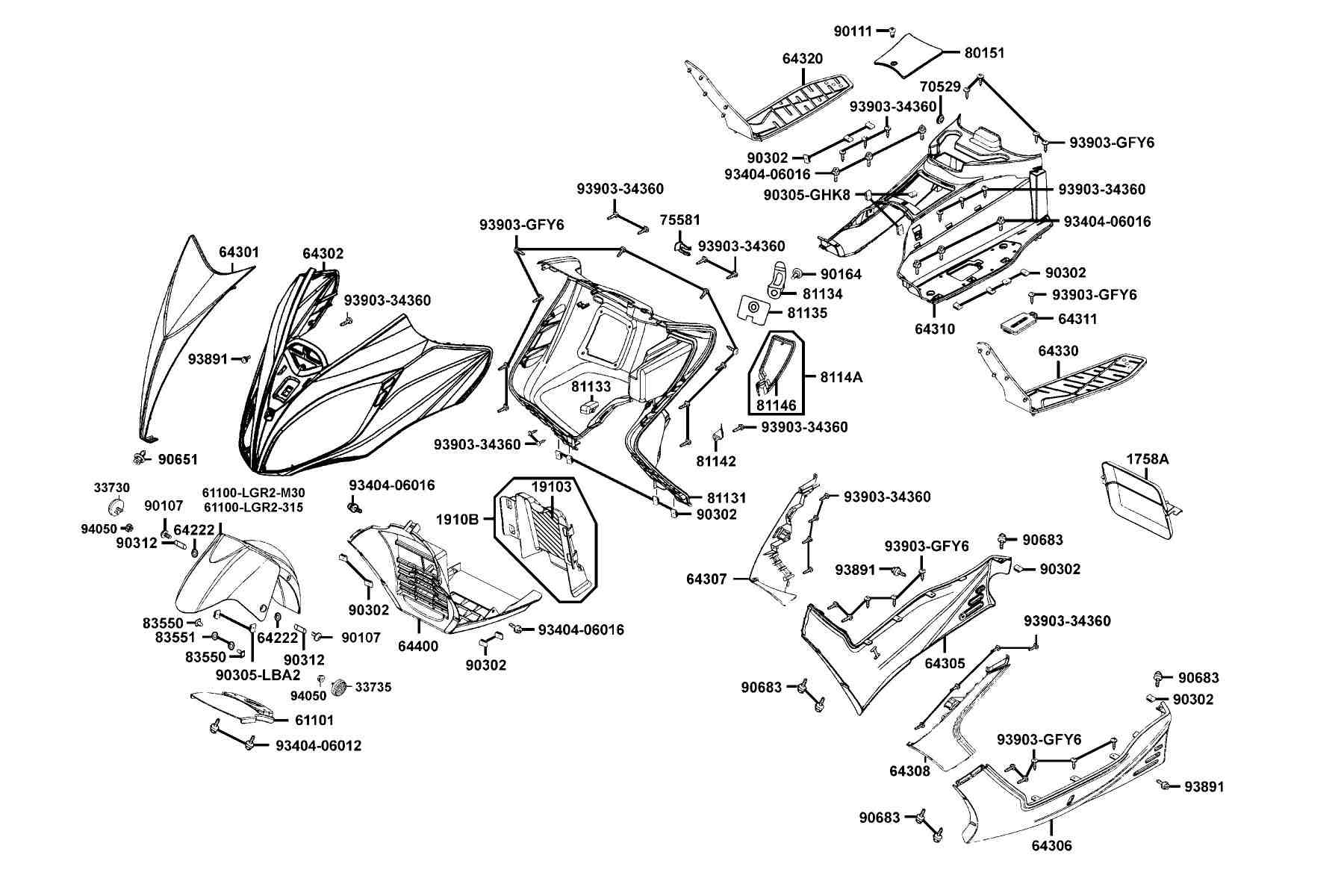

The Front Cover●Floor Panel diagram contains 46 genuine OEM parts for the KYMCO XCITING R500i(2014). Hover a callout on the drawing to highlight the part in the list, click it to open that part’s product page on kymcopartsstore.com, or click the drawing to zoom.
US shipping, calculated at checkout · Special orders come from KYMCO’s US distributor · 14-day returns & fitment guarantee
-
GUARD ASSY TANK -
HRAT GUARD COOLING AIR -
DUCT ASSY COOLING AIR -
REFLEX REFLECTOR COMP FR R SIDE -
REFLEX REFLECTOR COMP FR L SIDE -

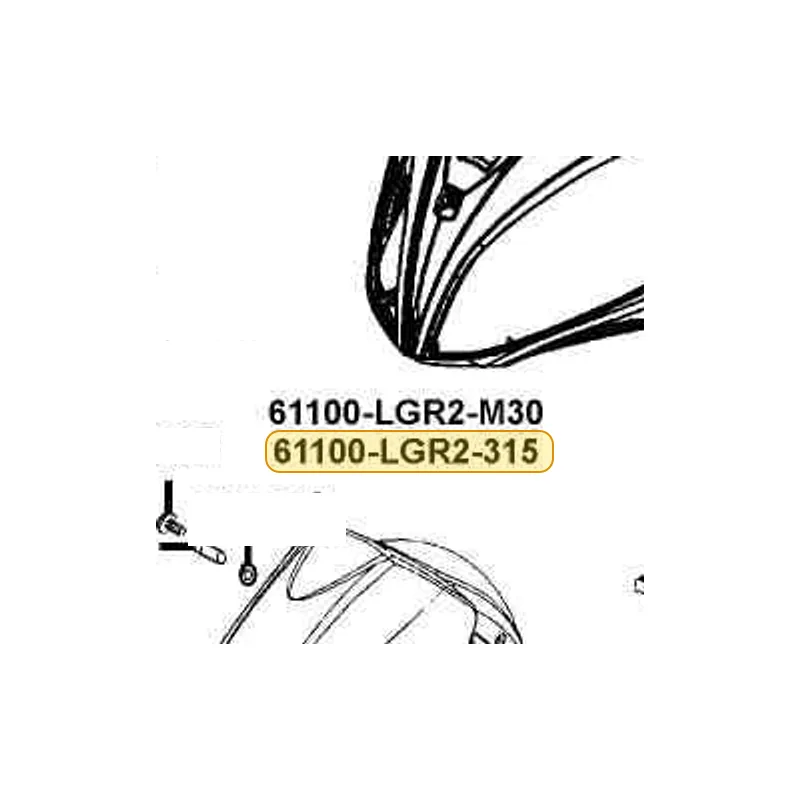

FENDER SET FR -
FENDER FR INNER -
$3.66 View product → -
COVER FR TOP -

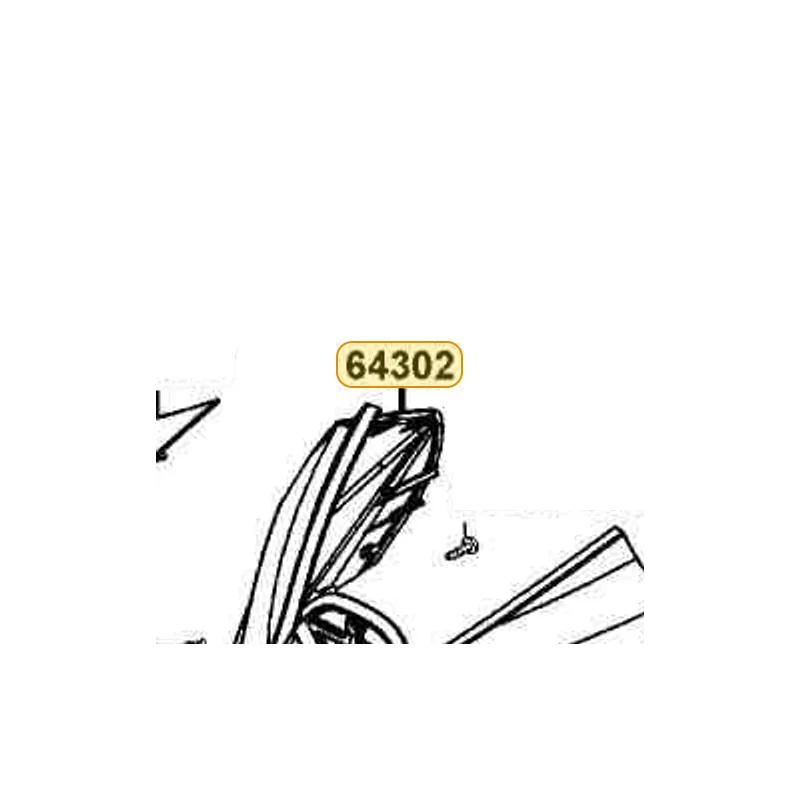

MOLDING FR (CHARCOAL) (Dark Gray Metallic) -
SKIRT R SID -
SKIRT L SIDE -
SKIRT FR R SIDE -
SKIRT FR L SIDE -
FLOOR PANEL (Black) -
COVER R PILLION STEP (Black) -
MAT R FLOOR (Black) -
MAT L FLOOR (Black) -
COWL UNDER (Black) -
$4.53 View product → -
$12.84 View product → -
COVER CENTER (Black) -
LEG SHIELD (Black) -
CAP LEG SHIELD -
HOOK LUGGAGE -
STAY LUGGAGE HOOK -
STAY LID INNER BOX -
SEAL LID INNER BOX -
LID ASSY INNER BOX (Black) -
$10.35 View product → -
$6.09 View product → -
$25.65 View product → -
$4.38 View product → -
SCREW SPECIAL 6MM -
$4.26 View product → -
$4.92 View product → -
$3.78 View product → -
$7.53 View product → -
$4.92 View product → -
$3.00 View product → -
$2.61 View product → -
$7.89 View product → -
$1.86 View product → -
$4.29 View product → -
$2.61 View product → -
$2.31 View product →
