KYMCO oil & lubrication part numbers and diagrams
| Part number | Name | Price | Fits models | |
|---|---|---|---|---|
 |
15133-KGBG-900 | GEAR OIL PUMP DRIVEN | $51.27 | 110 |
 |
15133-KKE5-E00 | DRIVE SPROCKET W/P | $69.78 | 6 |
 |
15133-LBA2-E00 | SPROCKET OIL PUMP DRIVE | $25.56 | 426 |
 |
15133-LDC5-900 | GEAR OIL PUMP DRIVEN | $68.04 | 10 |
 |
15133-LDC5-C00 | "GEAR, OIL PUMP DRIVEN" | $68.04 | 85 |
 |
15133-LEA7-E00 | SPROCKET OIL PUMP DRIVEN | $49.02 | 13 |
 |
15133-LGC6-E00 | SPRKT OIL PUMP DRIVEN | $33.96 | 19 |
 |
15133-LGF9-E00 | SPROCKET OIL PUMP | $49.02 | 41 |
 |
15133-PWB1-900 | SPROCKET OIL PUMP DRIVEN | $69.48 | 145 |
 |
15134-KED9-900 | SPROCKET OIL PUMP DRIVE | $62.70 | 27 |
 |
15134-KHE7-900 | GEAR OIL PUMP DRIVE | $71.64 | 54 |
 |
15134-LBA2-E00 | SPROCKET OIL PUMP DRIVE | $119.37 | 25 |
 |
15136-KKE5-E00 | SPROCKET W/P DRIVEN | $50.28 | 8 |
 |
15138-LDB5-E00 | HOLDER OIL PUMP SHAFT | $41.73 | 401 |
 |
15140-KED9-900 | CHAIN OIL PUMP | $55.56 | 27 |
 |
15141-GFY6-90B | CHAIN OIL PUMP | $106.86 | 140 |
 |
15141-GFY6-90C | CHAIN OIL PUMP | $70.50 | 55 |
 |
15141-GFY6-C00 | CHAIN OIL PUMP | $36.24 | 100 |
 |
15141-KEC2-900 | CHAIN OIL PUMP | $79.86 | 84 |
 |
15141-KKJ9-004 | CHAIN OIL PUMP | $38.64 | 159 |
 |
15141-KKJ9-C00 | CHAIN OIL PUMP | $32.28 | 15 |
 |
15141-LBA2-E00 | CHAIN OIL PUMP | $66.45 | 165 |
 |
15141-LDB5-E00 | CHAIN OIL PUMP | $75.36 | 401 |
 |
15141-LEA7-E00 | CHAIN OIL PUMP | $78.36 | 13 |
 |
15141-LGF9-E00 | CHAIN OIL PUMP | $78.36 | 41 |
 |
15141-LKF5-E00 | CHAIN. OIL PUMP | $76.44 | 2 |
 |
15161-LGC6-E00 | PLUG SCREW SECTION FILTER | $27.39 | 19 |
 |
15161-PUA5-E00 | PLUG SCREW SECTION FILTER | $66.96 | 50 |
 |
15162-LGC6-E01 | SUCTION FILTER, CRANK SIDE | $73.68 | 19 |
 |
15162-PUA5-E00 | SUCTION FILTER CRANK SIDE | $63.00 | 9 |
 |
15164-LGC6-E00 | PISTON COOLING JET | $33.69 | 19 |
 |
1516A-LGC6-E00 | SUCTION FILTER ASSY CRANK SIDE | $36.48 | 19 |
 |
15200-KED9-900 | OIL RELIEF VALVE ASSY | $77.94 | 476 |
 |
15200-LBA2-E00 | OIL RELIEF VALVE ASSY | $109.02 | 25 |
 |
15200-LKF5-E00 | OIL RELIEF VALVE ASSY | $128.82 | 2 |
 |
15200-PWB1-900 | OIL RELIEF VALVE ASSY | $85.71 | 145 |
 |
15200-ZPA3-E00 | OIL RELIEF VALVE ASSY | $71.64 | 6 |
| 15206-GKAK-950 | O-RING | Ask about this part → | 12 | |
 |
15210-PUA5-E00 | PISTON PRESSURE VALVE D=12mm | $4.83 | 19 |
 |
15211-LGC6-E00 | COMPRESSION SPRING | $2.82 | 19 |
 |
15214-PUA5-E00 | PLUG SCREW COMPRESSION SPRING | $2.97 | 19 |
 |

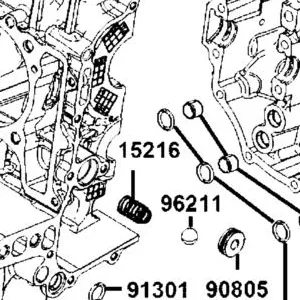

15216-LGC6-E00 | COMPRESSION SPRING | $2.82 | 19 |
 |
15219-KKE5-E00 | PACKING OIL RELIEF VALVE | $3.72 | 6 |
 |
15219-ZPA3-E00 | PACKING OIL RELIEF VALVE | $38.94 | 6 |
 |
15220-KED9-900 | OIL SEPERATOR | $5.22 | 27 |
 |
1531-428H-6710 | BINDER | $5.22 | 22 |
 |
1531-803-2000 | BINDER | $7.53 | 23 |
 |
1531-814-2000 | BINDER | $1.95 | 8 |
 |
1531-815-2000 | BINDER | $7.53 | 27 |
 |
1531-828-2001 | BINDER | $22.92 | 11 |
Common questions
How do I know an oil & lubrication part fits my KYMCO?
Every part lists the exact models it fits. Browse from your model's diagrams, use the VIN lookup, or pin your vehicle and the list badges what fits.
Are these genuine KYMCO oil & lubrication parts?
Yes — all 252 parts here are factory KYMCO items with original part numbers, straight from the official catalogs.
