KYMCO bolts & hardware part numbers and diagrams
| Part number | Name | Price | Fits models | |
|---|---|---|---|---|
 |
90001-GAE1-921 | BOLT SPECIAL SOCKET | $4.92 | 20 |
 |
90001-GBHB-661 | BOLT FLANGE SH 6*22 | $4.92 | 1043 |
 |

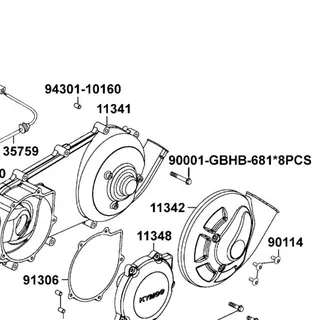

90001-GBHB-681 | BOLT FLANGE SHF 6*28 | $4.92 | 492 |
 |

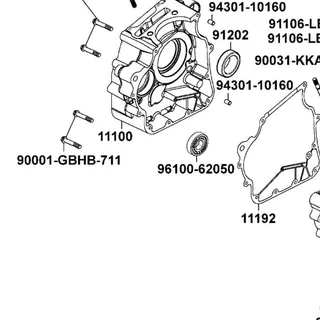

90001-GBHB-711 | BOLT FLANGE SHF 6X40 | $4.92 | 284 |
 |
90001-GBHB-751 | BOLT FLANGE SHF 6*45 | $7.17 | 18 |
 |
90001-GBHB-C05 | BOLT FLANGE SHF 6*22 | $4.59 | 85 |
 |
90001-GBHB-C06 | BOLT | $1.65 | 30 |
 |
90001-GBHB-C11 | BOLT FLANGE SHF 6*40 | $11.85 | 36 |
 |
90001-GBHB-C13 | BOLT FLANGE SHF 6*40 | $4.59 | 24 |
 |

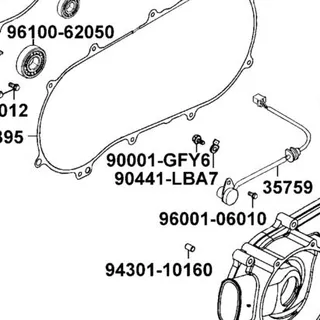

90001-GFY6-901 | SOCKET BOLT 6*10 | $4.53 | 694 |
 |
90001-GFY6-C00 | SOCKET BOLT 6*10 | $4.92 | 27 |
 |
90001-GFY6-C01 | SOCKET BOLT 6*10 | $4.59 | 36 |
 |
90001-GKAK-901 | BOLT FLANGE 7*100 (G) | $12.84 | 121 |
 |
90001-GKAK-C00 | BOLT FLANGE 7*100 | $5.22 | 20 |
 |
90001-KED9-900 | BOLT FLANGE SHF 6*22 | $4.92 | 36 |
 |
90001-KGF1-C01 | BOLT FLANGE SHF6*32(CG) | $1.95 | 28 |
 |
90001-LBA2-E00 | BOLT UBS 8X137 | $20.88 | 266 |
 |
90001-LEA7-E00 | SOCKET BOLT | $8.67 | 48 |
 |
90002-KED9-900 | BOLT UBS 8*151 | $20.58 | 27 |
 |

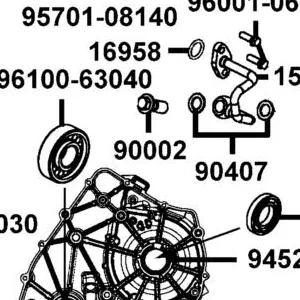

90002-KKAK-900 | BOLT B OIL PASS | $9.33 | 114 |
 |
90002-LBA2-E00 | BOLT HUBS Ø8X201 | $34.92 | 266 |
 |
90003-LBA2-E00 | BOLT A OIL PASS | $30.18 | 25 |
 |
90004-LBA2-E00 | BOLT B OIL PASS | $28.05 | 426 |
 |
90004-LGC6-E00 | BOLT SPECIAL | $12.00 | 19 |
 |
90005-KAW1-901 | BOLT SPECIAL 6*6 | $4.92 | 243 |
 |
90005-KAW1-C00 | SCREW PAN 6*6(G) | $4.65 | 63 |
 |
90005-KAW1-C10 | SCREW PAN 6*6 | $2.61 | 3 |
 |
90005-KED9-900 | BOLT SPECIAL 6*6 | $2.76 | 770 |
 |
90005-KKE5-E00 | BOLT SPECIAL M18*1.0 | $31.08 | 6 |
 |
90005-LBA2-E00 | BOLT C OIL PASS | $35.61 | 240 |
 |
90005-LEH6-E00 | BOLT SPECIAL M18*1.0 | $9.27 | 19 |
 |
90007-KKE5-E00 | BOLT WASHER 10*160 | $38.07 | 6 |
 |
90007-LGC6-E00 | BOLT WASHER 9X160 | $25.95 | 19 |
 |
90008-KED9-900 | BOLT UBS 8*129 | $18.30 | 27 |
 |
90008-KKE5-E00 | BOLT WASHER 10*170 | $36.24 | 6 |
 |
90008-LBD4-900 | BOLT FLANGE 8X48 | $8.67 | 35 |
 |
9000A-ADG1-C01 | BOLT ASSY SPECIAL | $22.74 | 36 |
 |

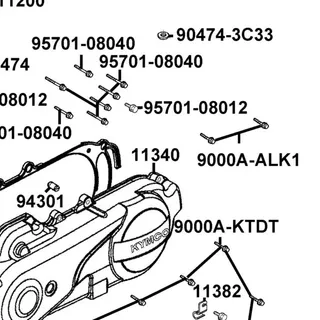

9000A-ALK1-E15 | BOLT ASSY SPECIAL | $7.53 | 13 |
 |
9000A-KKJ9-001 | BOLT SPECIAL COMP | $28.32 | 10 |
 |
9000A-KTDT-900 | BOLT ASSY SPECIAL 6*29.5 | $14.31 | 527 |
 |
9000A-KTDT-C00 | BOLT ASSY SPECIAL 6*29.5 | $17.70 | 8 |
 |
9000A-KTDT-C01 | BOLT ASSY | $7.89 | 3 |
 |

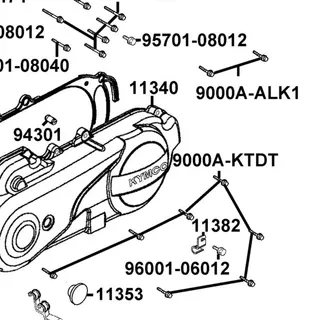

9000A-KTDT-C02 | BOLT ASSY SPECIAL 6*29.5(G) | $15.99 | 28 |
 |
9000A-KTDT-C03 | BOLT ASSY SPECIAL 6*29.5 | $8.19 | 84 |
 |
9000B-KHD6-900 | BOLT ASSY SPECIAL 6*41.5 | $29.73 | 107 |
 |
9000B-KHD6-C02 | BOLT ASSY SPECIAL 6X41.5(G) | $22.74 | 36 |
 |
90010-KKE5-E01 | SPOCKET BOLT 8X30 | $11.31 | 25 |
 |
90011-KED9-900 | BOLT UBS 8X48(C) | $11.31 | 293 |
 |
90012-333-0010 | SCREW TAPPET ADJUSTING | $13.38 | 1139 |
 |
90012-3C33-C00 | SCREW TAPPET ADJUSTING | $8.16 | 177 |
Common questions
How do I know a bolts & hardware part fits my KYMCO?
Every part lists the exact models it fits. Browse from your model's diagrams, use the VIN lookup, or pin your vehicle and the list badges what fits.
Are these genuine KYMCO bolts & hardware parts?
Yes — all 2,538 parts here are factory KYMCO items with original part numbers, straight from the official catalogs.
