F03 — Handle Steering●Handle Cover

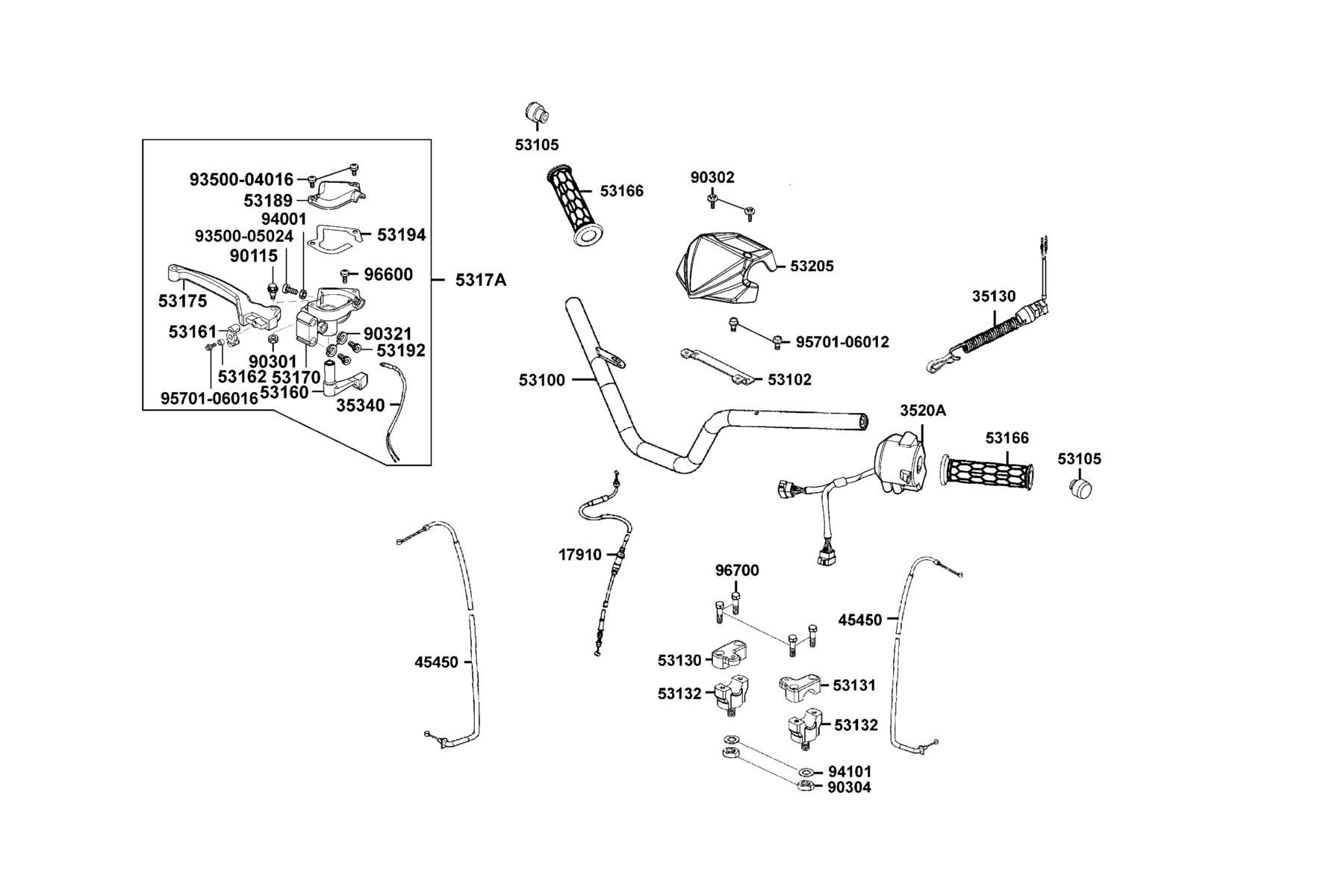

The Handle Steering●Handle Cover diagram contains 35 genuine OEM parts for the KYMCO Mongoose 90S(2018). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17910-LBD4-800 | CABLE COMP THROT | 1 | $80.13 USD | View product → | |
| 2 | 35130-LBD4-900 | SW UNIT KILL (SAFETY) | 1 | $90.00 USD | View product → | |
| 3 | 3520A-PUA6-900 | SW ASSY LH HANDLE COMP | 1 | $132.33 USD | View product → | |
| 4 | 35340-LLB1-800 | SW ASSY FR STOP | 1 | $44.07 USD | View product → | |
| 5 | 45450-LBD4-900 | CABLE COMP FR BRK | 2 | $81.21 USD | View product → | |
| 6 | 53100-ABC9-M00 | HANDLE PIPE STEERING | 1 | $137.82 USD | View product → | |
| 7 | 53102-LBD4-900 | STAY HANDLE COVER | 1 | $15.06 USD | View product → | |
| 8 | 53105-KNBN-910 | END STRG HANDLE | 2 | $10.14 USD | View product → | |
| 9 | 53130-LBD4-900 | HOLDER R HANDLE PIPE | 1 | $20.58 USD | View product → | |
| 10 | 53131-LBD4-900 | HOLDER L HANDLE PIPE | 1 | $20.58 USD | View product → | |
| 11 | 53132-LBD4-900 | HOLDER UNDER HANDLE PIPE | 2 | $47.67 USD | View product → | |
| 12 | 53160-LLB1-800 | THUMB THROTTLE | 1 | $38.52 USD | View product → | |
| 13 | 53161-LLB1-800 | EQUALIZER BRAKE CABLE | 1 | $22.47 USD | View product → | |
| 14 | 53162-LLB1-810 | SPACER | 1 | $4.50 USD | View product → | |
| 15 | 53166-PTA7-900 | GRIP???HANDLE | 2 | $35.52 USD | View product → | |
| 16 | 53170-LLB1-800 | BRKT HANDLE R | 1 | $57.03 USD | View product → | |
| 17 | 53175-LBD4-900-M2A | LEVER R STRG HANDLE | 1 | $53.61 USD | View product → | |
| 18 | 5317A-LBD4-M00 | BRKT ASSY HANDLE R | 1 | $127.65 USD | View product → | |
| 19 | 53189-LLB1-800 | COVER BRKT R | 1 | $33.39 USD | View product → | |
| 20 | 53192-LLB1-810 | BOLT WIRE ADJUST | 2 | $10.65 USD | View product → | |
| 21 | 53194-LLB1-800 | PACKING | 1 | $11.40 USD | View product → | |
| 22 | 53205-LBD4-E00-N1R | COVER HANDLE (Black) | 1 | $22.50 USD | View product → | |
| 23 | 90115-LLB1-810 | BOLT HANDLE LEVER PIROT | 1 | — | Part details → | |
| 24 | 90301-LLB1-810 | NUT U 6MM(K) | 1 | — | Part details → | |
| 25 | 90302-GFY6-940 | BOLT-WASH 5*16 | 2 | $1.86 USD | View product → | |
| 26 | 90304-GHE8-004-SY | NUT U 10MM | 2 | $8.85 USD | View product → | |
| 27 | 90321-LLB1-810 | NUT FIXING | 2 | $3.54 USD | View product → | |
| 28 | 93500-04016-0GG | SCREW PAN M4*16 | 2 | — | Part details → | |
| 29 | 93500-05024-0GG | SCREW PAN 5*24 | 1 | $4.92 USD | View product → | |
| 30 | 94001-05070-0SG | NUT HEX 5MM | 1 | $4.92 USD | View product → | |
| 31 | 94101-10800 | WASHER PLAIN 10MM | 2 | $2.61 USD | View product → | |
| 32 | 95701-06012-06 | BOLT FLANGE 6X12 | 2 | $1.86 USD | View product → | |
| 33 | 95701-06016-07G | BOLT FLANGE SH 6*16 (KG) | 1 | $0.99 USD | View product → | |
| 34 | 96600-06020-07G | SOCKET BOLT 6X20 | 1 | $6.72 USD | View product → | |
| 35 | 96700-06025-06 | SOCKET BOLT 6X25 | 1 | $4.26 USD | View product → |
