F19 — Frame Body

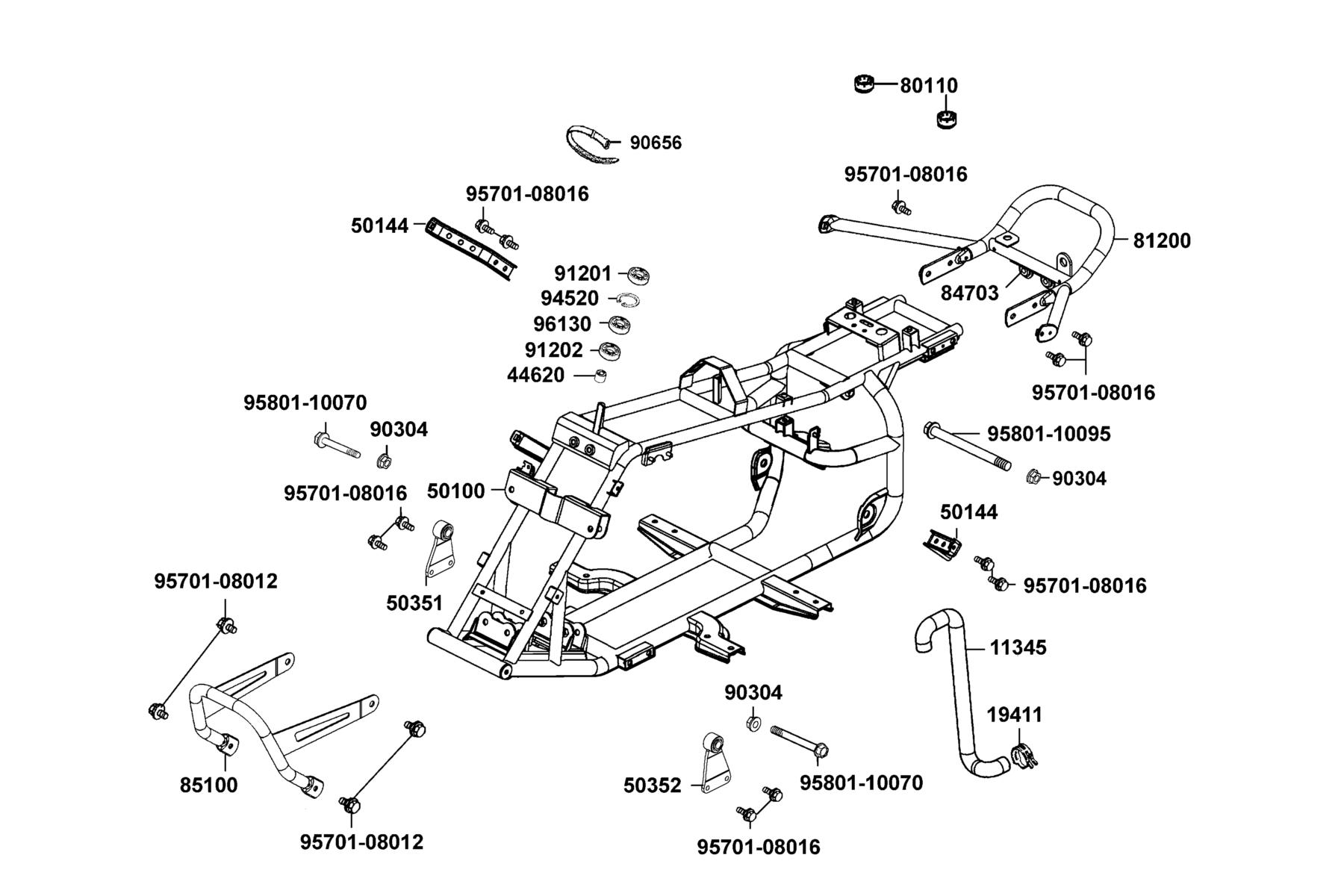

The Frame Body diagram contains 21 genuine OEM parts for the KYMCO Mongoose 90S(2018). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11345-LBD4-900 | DOCT L COVER | 1 | $42.69 USD | View product → | |
| 2 | 19411-KNBN-900 | CLIP HOSE | 1 | $22.65 USD | View product → | |
| 3 | 44620-LBD4-900 | COLLAR FR DIST | 1 | $25.56 USD | View product → | |
| 4 | 50100-ABC9-M00 | 0 | 1 | $495.14 USD | View product → | |
| 5 | 50144-ABC9-M00 | BRKT FRONT COVER | 1 | $25.95 USD | View product → | |
| 6 | 50351-PWA6-900 | BRKT R ENG HANGER | 1 | $25.95 USD | View product → | |
| 7 | 50352-PWA6-900 | BRKT L ENG HANGER | 1 | $25.95 USD | View product → | |
| 8 | 80110-LBA7-900 | RUBBER REAR FENDER | 2 | $3.66 USD | View product → | |
| 9 | 81200-ABC9-M00 | GRIP ASSY REAR | 1 | $125.85 USD | View product → | |
| 10 | 84703-LLB1-900 | RUBBER TAIL LIGHT | 2 | $3.96 USD | View product → | |
| 11 | 85100-ABC9-M00 | PIPE COMP FR BUMPER | 1 | $162.12 USD | View product → | |
| 12 | 90304-GLW0-90A | NUT U FLANGE 10MM | 3 | $9.39 USD | View product → | |
| 13 | 90656-KCBC-900 | BAND OIL HANDLE 8X146 | 2 | $3.93 USD | View product → | |
| 14 | 91201-LLB1-900 | OIL SEAL 18*32*7 | 1 | $6.06 USD | View product → | |
| 15 | 91202-LLB1-900 | OIL SEAL 22*35*7 | 1 | $7.53 USD | View product → | |
| 16 | 94520-32180 | CIR CLIP IN 32 | 1 | $5.31 USD | View product → | |
| 17 | 95701-08012-06 | BOLT FLANGE 8*12 | 4 | $6.24 USD | View product → | |
| 18 | 95701-08016-06 | BOLT FLANGE 8*16 | 8 | $4.53 USD | View product → | |
| 19 | 95801-10070-06 | BOLT FLANGE 10*70 (G) | 2 | $9.39 USD | View product → | |
| 20 | 95801-10095-06 | BOLT FLANGE 10*95 | 1 | $13.17 USD | View product → | |
| 21 | 96130-60020-10 | BEARING BALL RADIAL 6002 | 1 | $49.62 USD | View product → |
